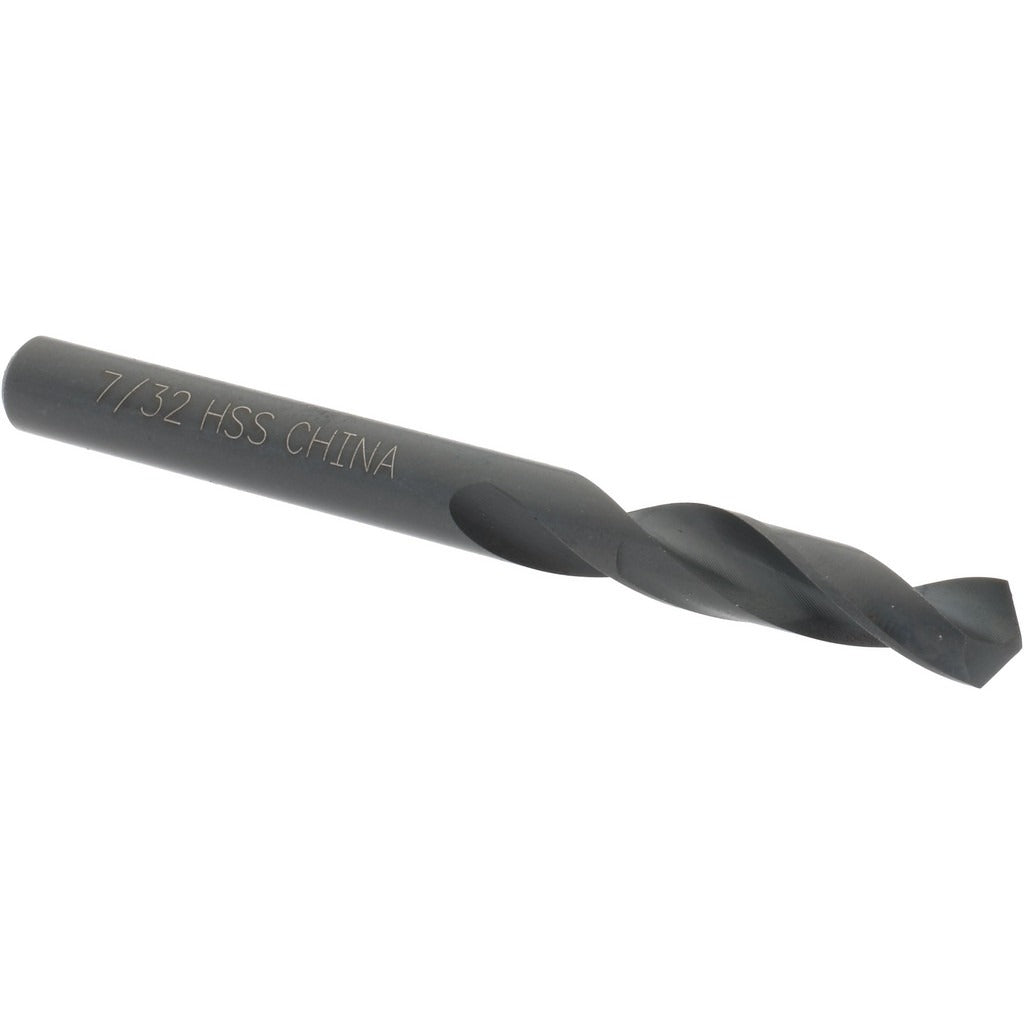

Value Collection 01350149 Screw Machine Drill Bit 7/32in

Product Description

The VALUE COLLECTION 01350149 is a screw machine length drill bit designed for general-purpose drilling in metal, wood, and similar materials. Built from high-speed steel (HSS) with an oxide coating for added lubricity and corrosion resistance, this bit features a 118-degree standard point angle suited to a wide range of materials. The 7/32 inch diameter (0.2188 inches decimal) and shortened screw machine length body provide added rigidity compared to jobber-length bits, reducing deflection in tight clearance and drill press applications. Machinists, maintenance technicians, and fabricators use this bit for production and repair drilling tasks.

This bit is intended for use in drill presses, CNC machines, lathes, and handheld power drills where a stubby, rigid bit is preferred. The screw machine length format is common in metal fabrication shops, HVAC sheet metal work, plumbing rough-in, and electrical panel fabrication where hole placement accuracy matters and workpiece access is limited. The right-hand spiral flute configuration is compatible with standard chuck tooling and conventional clockwise drilling setups.

Key Features

• 7/32 inch diameter (0.2188 inches) for precise sizing in the 0.2000 to 0.2500 inch range
• 118-degree standard point angle for general-purpose drilling across a range of materials
• High-speed steel construction with oxide finish for lubricity and light corrosion protection
• Screw machine (stub) length body at 2-3/8 inches overall length for added rigidity and reduced deflection
• Web-thinned parallel web for easier starting and reduced thrust requirements
• Straight cylindrical shank fits standard 3-jaw chucks without adapters
• 2-flute regular spiral design for efficient chip evacuation during drilling

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with standard 3-jaw drill chucks, drill presses, lathes, and handheld power drills accepting straight cylindrical shanks in the 7/32 inch size range.

Installation Notes

Secure the shank firmly in the chuck before drilling and verify chuck key is removed prior to starting the spindle. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and reduce heat buildup. Allow the web-thinned point to self-center before applying full feed pressure. Inspect the cutting edges for wear before each use and replace bits showing chipping or excessive dulling to maintain hole quality and prevent workpiece damage.
