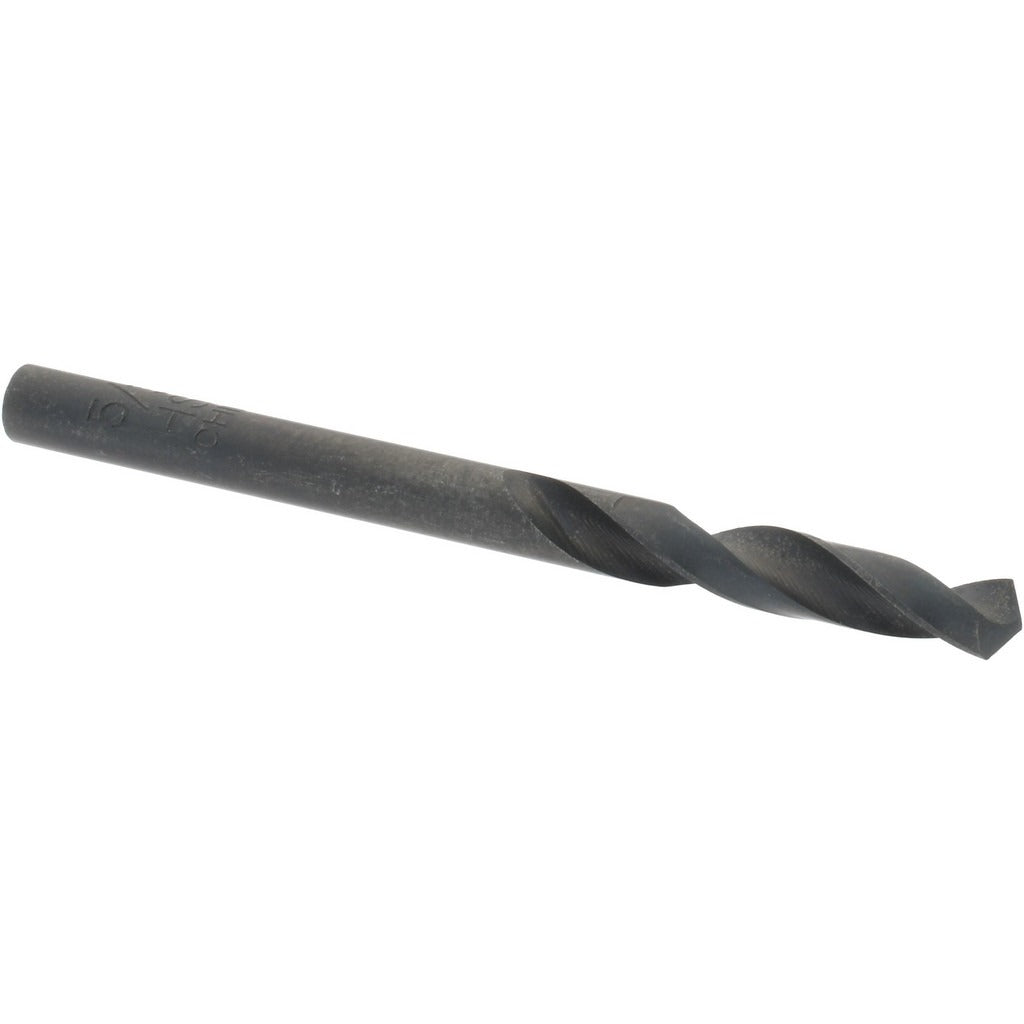

Value Collection 01350107 5/32 Inch Hss Screw Machine Drill Bit

Product Description

The VALUE COLLECTION 01350107 is a screw machine length drill bit designed for high-speed drilling in metal, wood, and general-purpose materials. Built from high-speed steel (HSS) with an oxide coating for added surface hardness and lubricity, this bit features a 5/32 inch (0.1562 inch decimal) diameter and a standard 118-degree split point. The shortened screw machine length provides increased rigidity compared to jobber-length bits, reducing deflection in drill press and CNC applications. The web-thinned design reduces thrust force at the cutting edge. Licensed trades and machinists working in production or maintenance environments rely on this geometry for accurate, repeatable hole starts.

This drill bit is suited for general-purpose metal drilling, sheet metal work, and light production machining. The straight cylindrical shank fits standard drill chucks across bench drill presses, hand drills, and screw machine setups. Its compact 2-1/16 inch overall length is particularly useful in confined workspaces or when using drill press fixtures that require a shorter bit profile. Electricians, plumbers, HVAC technicians, and pipefitters commonly use screw machine bits when drilling through framing, brackets, and light-gauge structural components during system installation.

Key Features

• 5/32 inch diameter (0.1562 inch decimal) for precise hole sizing
• 118-degree standard point angle with web-thinned tip for reduced thrust and cleaner starts
• High-speed steel construction handles a wide range of general-purpose materials
• Oxide coating improves surface hardness and provides light lubrication during cutting
• 2-flute regular spiral flute design promotes efficient chip evacuation
• Straight cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard drill chuck accepting a straight cylindrical shank in the 5/32 inch size range.

Installation Notes

This bit is installed and used by machinists, electricians, plumbers, and HVAC technicians using standard drill presses or hand drills. Secure the shank fully in the chuck before operation and verify chuck key is removed before powering the tool. Use appropriate cutting fluid when drilling ferrous metals to extend bit life and reduce heat buildup. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is observed.
