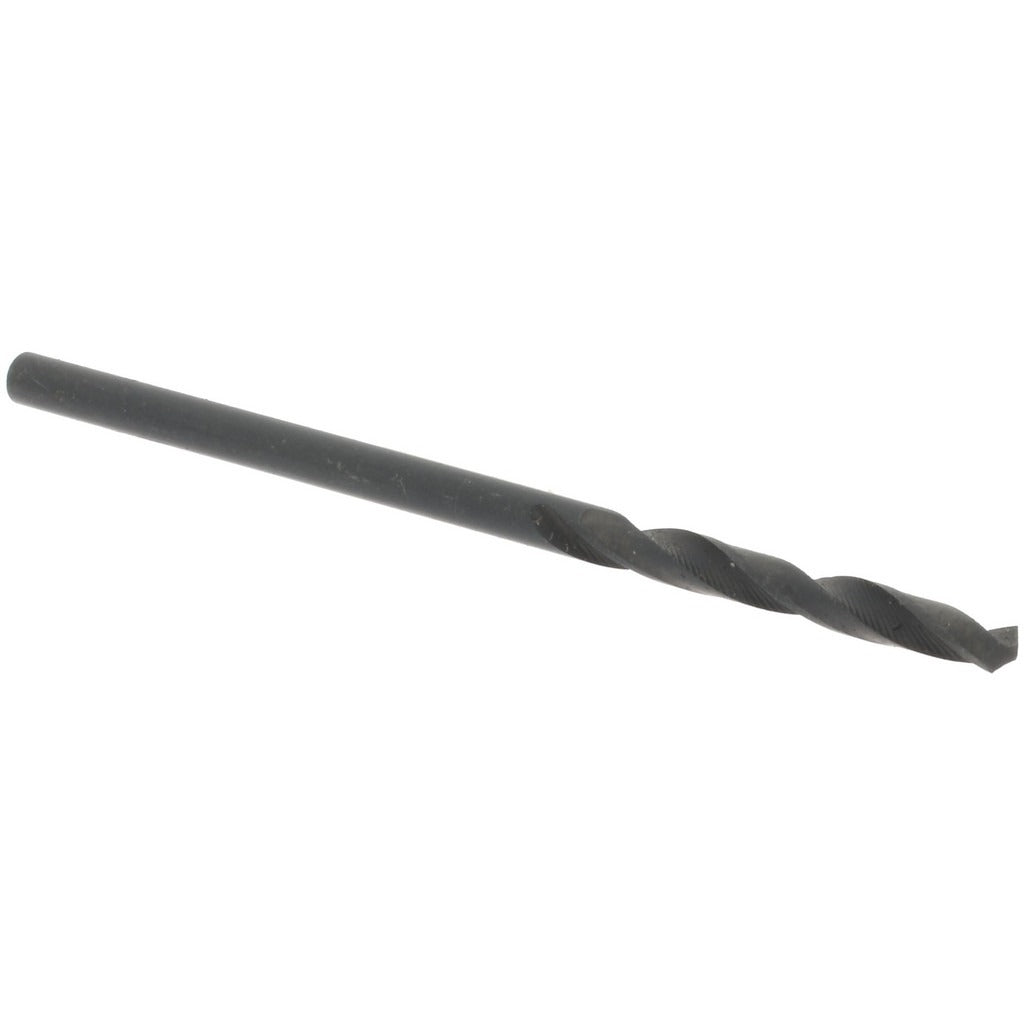

Value Collection 01350057 Screw Machine Drill Bit 5/64 in

Product Description

The VALUE COLLECTION 01350057 is a screw machine length drill bit designed for general-purpose drilling in metal, wood, and plastic. Built from high-speed steel (HSS) with an oxide coating for added wear resistance, it features a 118-degree standard point angle that suits a wide range of common drilling applications. The bit measures 5/64 inch (0.0781 inch decimal) in diameter with an overall length of 1-11/16 inches and a flute length of 11/16 inches. The shorter screw machine length body provides greater rigidity than a jobber-length bit, reducing deflection in drill press, turret lathe, and screw machine setups. Machinists, maintenance technicians, and tool-and-die professionals are the typical end users.

This bit is suited for production drilling environments where a short, rigid cutting tool is preferred. The straight cylindrical shank fits standard drill chucks without adapters. The 2-flute regular spiral design provides efficient chip evacuation in both through-hole and blind-hole applications. It is appropriate for light to medium-duty drilling in ferrous and non-ferrous metals as well as general shop materials. The general-purpose grade makes it a practical choice for maintenance shops, fabrication benches, and machine tool operations requiring small-diameter hole making.

Key Features

• High-speed steel construction for durability across a range of workpiece materials
• Oxide coating improves surface hardness and provides mild corrosion resistance
• 118-degree standard point angle for general-purpose drilling in metal and wood
• Screw machine length body increases rigidity and reduces bit deflection
• Web-thinned geometry reduces thrust load and improves cutting efficiency
• Right-hand cutting direction with 2-flute regular spiral for consistent chip removal

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with standard drill chucks accepting straight cylindrical shanks in light to medium-duty drilling applications.

Installation Notes

Secure the straight shank firmly in a keyed or keyless drill chuck before operation and verify the bit runs true before engaging the workpiece. Always wear appropriate eye protection and secure the workpiece to prevent rotation. Use cutting fluid when drilling ferrous metals to extend bit life and improve hole finish. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed.
