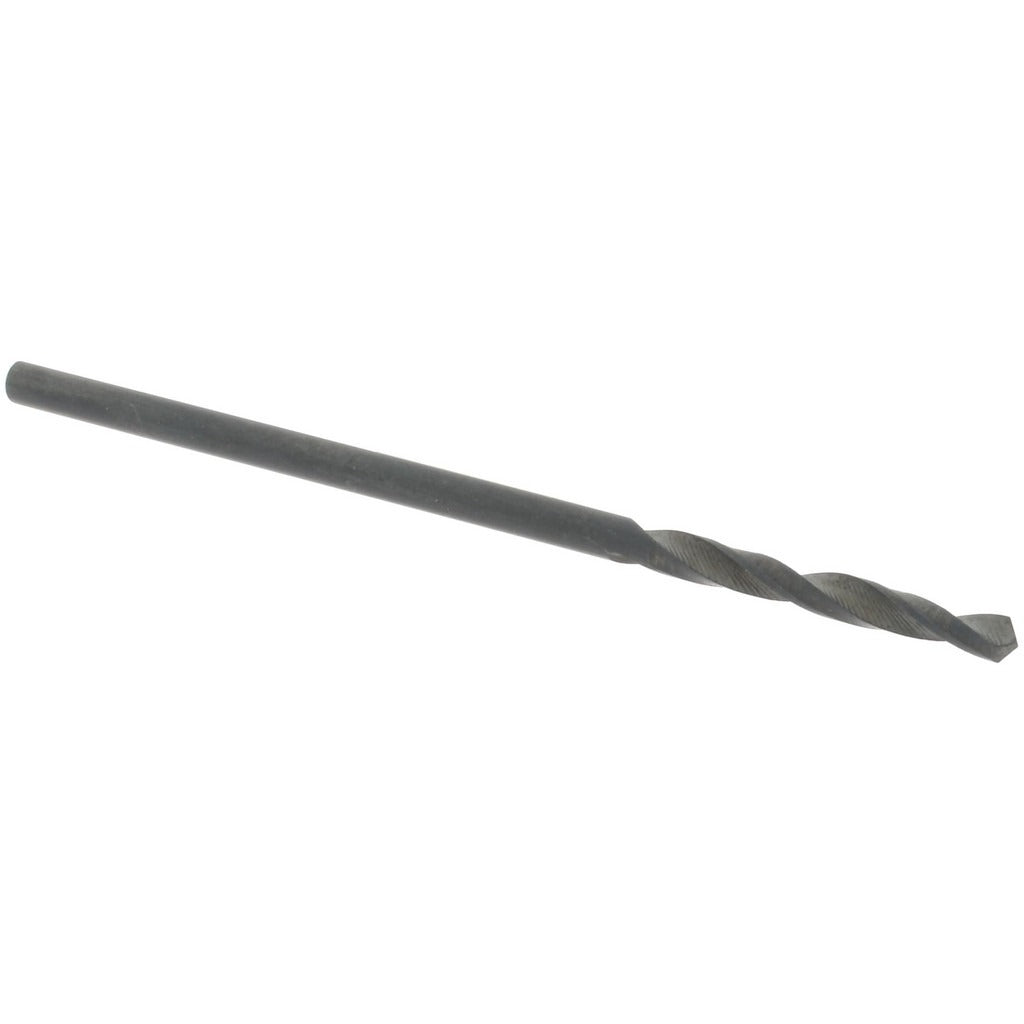

Value Collection 01350040 Screw Machine Drill Bit 1/16 in Hss

Product Description

The VALUE COLLECTION 01350040 is a screw machine length drill bit ground from high-speed steel (HSS) with an oxide finish for improved lubricity and corrosion resistance. At 1/16 inch (0.0625 inch) diameter and 1-5/8 inches overall length, this stub-length bit provides greater rigidity than a jobber-length drill, reducing deflection in tight clearance applications. The 118-degree standard point angle suits general-purpose drilling in mild steel, aluminum, plastics, and similar materials. The right-hand spiral flute geometry evacuates chips efficiently during through-hole and blind-hole operations. Licensed trades and general fabricators will find this bit sized for small fastener pilot holes, instrument ports, and sheet metal work.

This drill bit is suited for use in hand-held drills, drill presses, and CNC or manual lathes where stub-length tooling is required. The straight cylindrical shank accepts standard three-jaw drill chucks across a wide range of machine spindles. Its compact 1-5/8 inch overall length and 5/8 inch flute length make it a practical choice for work in confined spaces or where workpiece depth is shallow. Electricians, HVAC technicians, plumbers, and sheet metal fabricators all reach for screw machine bits when working in restricted areas on panels, brackets, and enclosures.

Key Features

• 1/16 inch (0.0625 inch) diameter for small pilot holes and precision bore work
• HSS construction provides toughness across general-purpose drilling applications
• Oxide coating reduces friction and provides light corrosion protection
• 118-degree standard point angle for use on steel, aluminum, and plastics
• Screw machine (stub) length at 1-5/8 inches OAL reduces bit deflection
• Two regular spiral flutes with web-thinned, parallel web configuration for efficient chip evacuation

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with any standard three-jaw drill chuck accepting a straight cylindrical shank in the 1/16 inch diameter range.

Installation Notes

Install into a properly sized drill chuck and tighten securely before operation. Secure the workpiece firmly to prevent movement during drilling. Use cutting fluid on harder metals to extend bit life and improve hole finish. Inspect the cutting edges before use and replace any bit showing signs of chipping or excessive wear.
