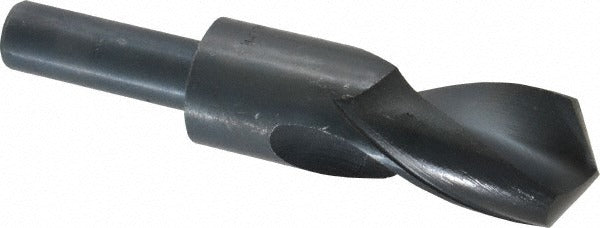

Value Collection 01346774 Reduced Shank Drill Bit Hss

Product Description

The VALUE COLLECTION 01346774 is a reduced shank twist drill bit designed for drilling large-diameter holes in metal, wood, and plastic using standard 3/4-inch chuck machinery. The bit carries a 1-11/32-inch cutting diameter (1.3438 inches decimal) on a 3/4-inch straight-cylindrical shank, allowing it to fit chucks that cannot accommodate a full-size shank. Constructed from high-speed steel with an oxide finish for basic corrosion resistance, it features a 118-degree standard point angle suited to general-purpose drilling. Overall length is 6 inches with a 3-inch spiral flute and a 2-1/4-inch shank length. Cutting direction is right-hand. Installation is performed by machinists, maintenance technicians, and trade professionals working with drill presses or large-capacity hand drills.

This bit is intended for general-purpose drilling applications in shops, field maintenance, and fabrication environments. The reduced shank design makes oversized cutting diameters accessible on standard 3/4-inch keyless or keyed chucks without requiring specialized tooling. The regular spiral flute geometry promotes chip evacuation during through-hole and blind-hole drilling in ferrous and non-ferrous materials. No coolant-through capability is present, so external cutting fluid is recommended when drilling hard metals at this diameter to manage heat buildup and extend tool life.

Key Features

• 1-11/32-inch (1.3438 inches) cutting diameter on a reduced 3/4-inch straight-cylindrical shank
• High-speed steel construction for durability across ferrous and non-ferrous materials
• 118-degree standard point angle for general-purpose drilling applications
• Oxide finish provides baseline surface protection
• 3-inch spiral flute length supports chip evacuation and maximum drilling depth of 3 inches
• Right-hand cut with regular spiral geometry for use in conventional drill press and hand-drill setups

Compatibility

Designed as an OEM-style general-purpose reduced shank drill bit compatible with machinery equipped with 3/4-inch drill chucks, including standard drill presses and heavy-duty hand drills.

Installation Notes

This bit is installed by machinists, maintenance mechanics, and trade professionals using drill presses or large-capacity hand drills. Secure the 3/4-inch shank fully into the chuck and verify it is locked before operation. When drilling hard metals at this diameter, apply external cutting fluid to manage heat and extend bit life, as this bit has no internal coolant capability. Inspect the cutting edges for wear before each use and replace the bit if chipping or dulling is observed.
