Value Collection 01344647 Reduced Shank Drill Bit Hss

Product Description

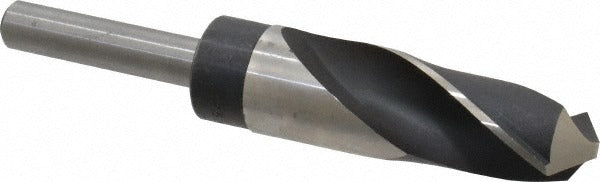

The VALUE COLLECTION 01344647 is a reduced shank twist drill bit designed for boring large-diameter holes using a standard 1/2 inch chuck. The bit measures 1.0835 inches in diameter with a 1/2 inch straight-cylindrical shank, allowing oversized drill work on drill presses and handheld machines that cannot accept a full-size shank. The 118-degree standard point angle suits general-purpose drilling in metal, wood, and plastic. Made from high-speed steel with an oxide finish, this bit handles everyday production and maintenance drilling tasks. Machinists, millwrights, and maintenance technicians are the primary users.

This drill bit is suited for general-purpose applications in light manufacturing, maintenance, and fabrication environments. The reduced shank design makes it practical for drill presses and portable drills equipped with 1/2 inch chucks where full-shank bits of this diameter would not fit. The 3 inch flute length supports a maximum drilling depth of 3 inches, appropriate for through-holes and blind holes in moderate-thickness stock. The right-hand spiral flute clears chips efficiently during standard rotational cutting.

Key Features

• 1.0835 inch cutting diameter with 1/2 inch reduced shank for compatibility with standard 1/2 inch chucks
• 118-degree standard point angle for general-purpose drilling in metal, wood, and plastic
• High-speed steel construction provides heat and wear resistance during continuous use
• Oxide finish reduces friction and provides mild corrosion resistance
• Right-hand spiral flute with regular helix promotes efficient chip evacuation
• 3 inch flute length supports up to 3 inches maximum drilling depth

Compatibility

Designed as a general-purpose reduced shank drill bit for use in any drill press or handheld drill with a 1/2 inch chuck capacity.

Installation Notes

This bit is installed and operated by machinists, millwrights, or maintenance technicians using a drill press or handheld drill with a 1/2 inch chuck. Secure the shank firmly in the chuck before operation and confirm the workpiece is clamped or fixtured to prevent rotation. Use appropriate cutting fluid for ferrous metals to extend bit life, noting this bit carries no built-in coolant feed. Inspect the cutting edges for wear or chipping before each use and replace if the point is damaged.
