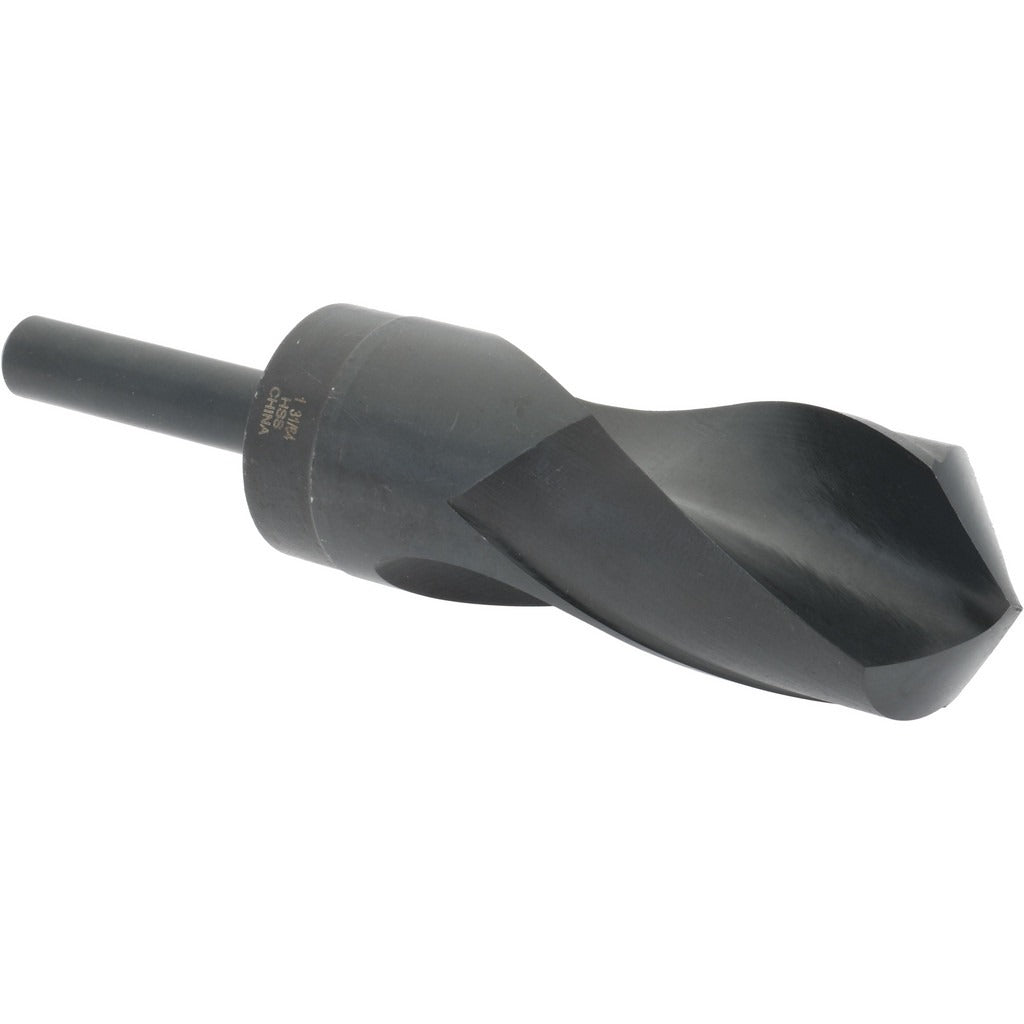

Value Collection 01341312 Reduced Shank Drill Bit

Product Description

The VALUE COLLECTION 01341312 is a reduced shank drill bit designed for boring large-diameter holes using standard 1/2 inch chuck equipment. The bit measures 1-31/64 inches (1.4844 inches decimal) in cutting diameter with a 1/2 inch straight-cylindrical shank, allowing it to seat in chucks that could not otherwise accommodate the full bit diameter. Overall length is 6 inches with a 3 inch spiral flute. Constructed from high-speed steel with an oxide finish, this bit is suited for general-purpose drilling in metal, wood, and similar materials. Installation is handled by machinists, maintenance technicians, and trade professionals working with drill presses or hand-held power drills.

This drill bit is used in general-purpose drilling applications where a large-diameter hole is required but the available chuck is limited to 1/2 inch capacity. The reduced shank design makes it practical for job-site use without requiring a specialized large-capacity chuck. Right-hand cut spiral flutes clear chips efficiently during through-hole and blind-hole drilling operations in light fabrication, maintenance, and repair work.

Key Features

• 1-31/64 inch cutting diameter with a reduced 1/2 inch shank for standard chuck compatibility
• High-speed steel construction for durability across general-purpose drilling tasks
• Oxide finish provides basic corrosion resistance and reduces friction during cutting
• 3 inch spiral flute length with regular spiral for efficient chip evacuation
• Right-hand cut, standard 118-degree point angle for versatile material entry
• 6 inch overall length suits bench drill press and portable drill applications

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with 1/2 inch keyed or keyless chucks on standard drill presses and handheld power drills.

Installation Notes

This bit is installed by machinists, maintenance technicians, or qualified trade professionals using a drill press or power drill with a 1/2 inch chuck. Secure the shank fully in the chuck before operation and verify the bit is centered and locked before starting the drill. Use appropriate cutting fluid or lubrication for metal drilling where recommended by shop practice. Inspect the cutting edges for wear before each use and replace the bit if chipping or dulling is observed.
