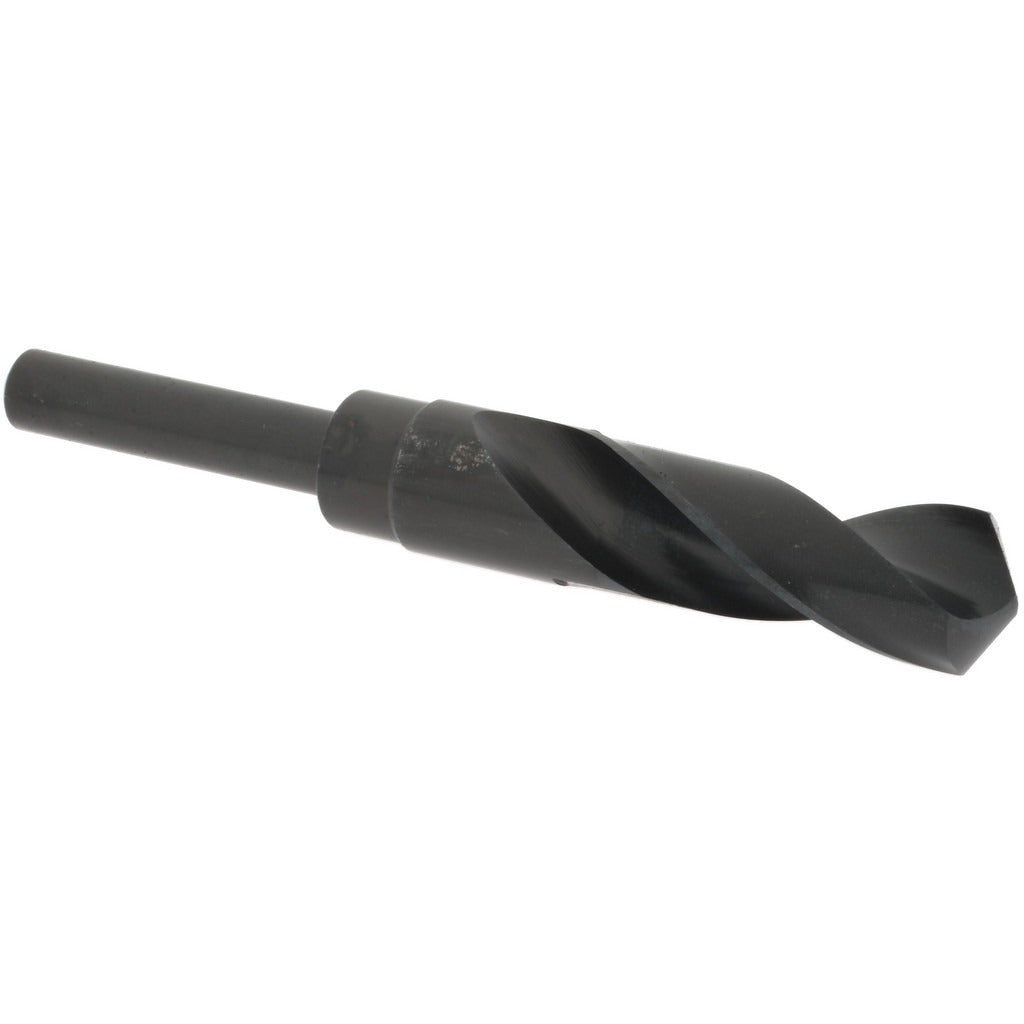

Value Collection 01340579 Reduced Shank Drill Bit Hss

Product Description

The VALUE COLLECTION 01340579 is a reduced shank twist drill bit designed for general-purpose drilling in metal, wood, and plastics. The bit features a 57/64 inch (0.8906 inch decimal) cutting diameter paired with a 1/2 inch straight-cylindrical shank, allowing it to be chucked in standard 1/2 inch drill chucks even though the cutting diameter is larger. Constructed from high-speed steel with an oxide finish, it delivers adequate hardness and corrosion resistance for everyday shop and field use. The 118-degree standard point angle suits a wide range of common materials. Right-hand cutting spiral flutes run 3 inches in length for efficient chip evacuation during drilling operations.

This drill bit is suited for machinists, maintenance technicians, fabricators, and trade professionals who need to produce 57/64 inch holes without requiring a larger chuck capacity. The reduced shank design makes it practical for use in drill presses, hand drills, and benchtop machines equipped with 1/2 inch chucks. With a 6 inch overall length and a maximum drilling depth of 3 inches, it handles standard through-hole and moderate depth drilling tasks in production and repair environments.

Key Features

• 57/64 inch cutting diameter (0.8906 inch decimal) with a reduced 1/2 inch straight-cylindrical shank for broad chuck compatibility
• High-speed steel construction provides durability for general-purpose drilling across common materials
• 118-degree standard point angle for reliable starting and consistent hole geometry
• Oxide finish improves surface hardness and provides light corrosion resistance
• 3 inch spiral flute length with regular right-hand spiral for effective chip clearing
• 6 inch overall length accommodates standard depth applications on drill presses and portable drills

Compatibility

Designed as a general-purpose replacement or addition for any setup using a 1/2 inch chuck where a 57/64 inch hole diameter is required.

Installation Notes

Install and remove drill bits only after the drill or drill press is fully powered down and the chuck has stopped. Secure the 1/2 inch shank firmly in the chuck using a chuck key before operation. Use appropriate cutting fluid or dry cutting practice per the material being drilled. Wear appropriate eye protection and follow applicable shop safety standards during use.
