Value Collection 01340447 Reduced Shank Drill Bit Hss

Product Description

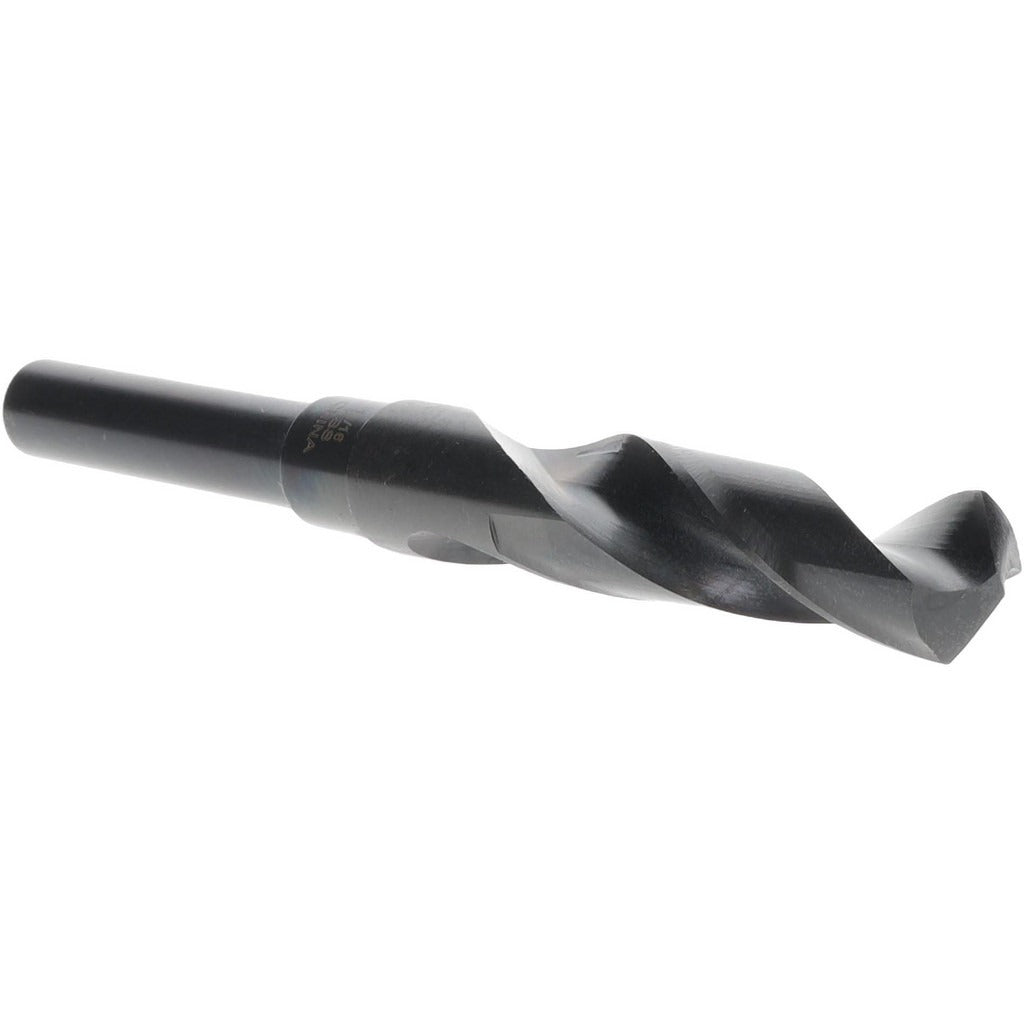

The VALUE COLLECTION 01340447 is a reduced shank twist drill bit manufactured from high-speed steel (HSS) for general-purpose drilling in metal, wood, and plastics. The bit measures 11/16 inches in diameter with a 1/2-inch straight-cylindrical shank, allowing it to seat in standard 1/2-inch chucks even though the cutting diameter is larger. Overall length is 6 inches with a 3-1/8-inch flute length. The 118-degree standard point angle suits most common drilling applications. An oxide finish provides basic corrosion resistance and reduces friction during cutting. This bit is installed by machinists, maintenance technicians, and trade professionals who require a larger cutting diameter from a machine with a 1/2-inch chuck capacity.

This drill bit is suited for general-purpose drilling in shop, field, and maintenance environments. The reduced shank design makes it practical for drill presses, milling machines, and hand-held drills equipped with 1/2-inch chucks where full-shank bits of this diameter would not fit. Right-hand spiral flutes clear chips efficiently during through-hole and blind-hole operations in mild steel, aluminum, and similar materials.

Key Features

• 11/16 inch (0.6875 inch) cutting diameter with 1/2 inch reduced straight-cylindrical shank
• High-speed steel construction for durability across a range of workpiece materials
• 118-degree standard point angle for general-purpose drilling
• Oxide finish for basic corrosion resistance and reduced friction
• Right-hand cut with regular spiral flutes for efficient chip evacuation
• 6 inch overall length with 3-1/8 inch flute length

Compatibility

Designed as a general-purpose reduced shank drill bit compatible with 1/2-inch drill chucks on standard drill presses, milling machines, and hand-held power drills.

Installation Notes

Install and remove this bit only while the drill or machine is fully powered off and at a complete stop. Secure the 1/2-inch shank firmly in the chuck before operation, verifying the bit runs true with minimal runout. Use appropriate workholding to secure the workpiece and wear eye protection during drilling. Follow applicable shop safety standards and machine manufacturer guidelines for feed rate and speed selection.
