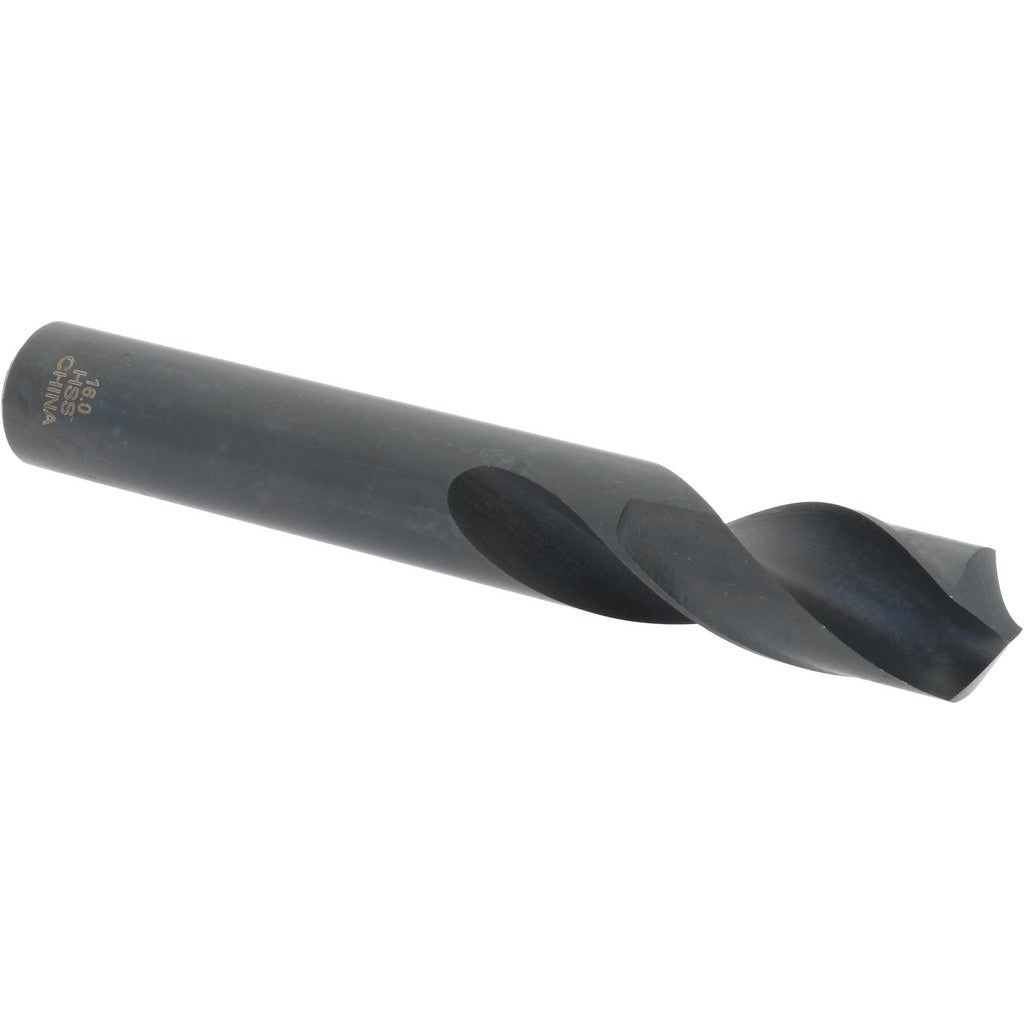

Value Collection 01296607 Screw Machine Drill Bit 16mm Hss

Product Description

The VALUE COLLECTION 01296607 is a screw machine length drill bit designed for general-purpose metal drilling in professional shop and field applications. Built from high-speed steel (HSS) with an oxide coating, it measures 16.00 mm (0.6299 inches) in diameter and carries a standard 118-degree point angle. The overall length is 115.00 mm (4.5276 inches), with a flute length of 58.00 mm. The shorter-than-jobber body length provides added rigidity in drill presses, CNC machines, and turret lathes where reduced deflection matters. This bit is a standard selection for machinists, pipefitters, and maintenance technicians.

Screw machine length drill bits are used where stub-length rigidity is preferred over full jobber reach. This bit suits drilling operations in ferrous and non-ferrous metals, plastics, and similar materials in both production and maintenance environments. The regular spiral flute and straight cylindrical shank make it compatible with standard drill chucks and collet holders. The oxide surface finish provides basic lubricity and corrosion resistance during cutting operations.

Key Features

• 16.00 mm diameter with a standard 118-degree split point for positive engagement
• High-speed steel construction rated for general-purpose drilling across common metals
• Oxide coating provides surface lubricity and mild corrosion resistance
• Screw machine (stub) length body reduces deflection in fixed-spindle setups
• Right-hand cutting, regular spiral flute with straight cylindrical shank
• Web-thinned parallel web for reduced thrust requirement at drill entry

Compatibility

Designed as a general-purpose screw machine length drill bit compatible with standard drill chucks and collet systems accepting straight cylindrical shanks in the 16.00 mm diameter range.

Installation Notes

Installation and use should be performed by qualified machinists or trade professionals familiar with rotary cutting tools. Secure the shank fully in the chuck or collet before operation and confirm runout is within acceptable limits. Always wear appropriate eye protection and ensure the workpiece is clamped securely before beginning a drilling operation. Do not exceed the recommended RPM range for the material being drilled with HSS tooling.
