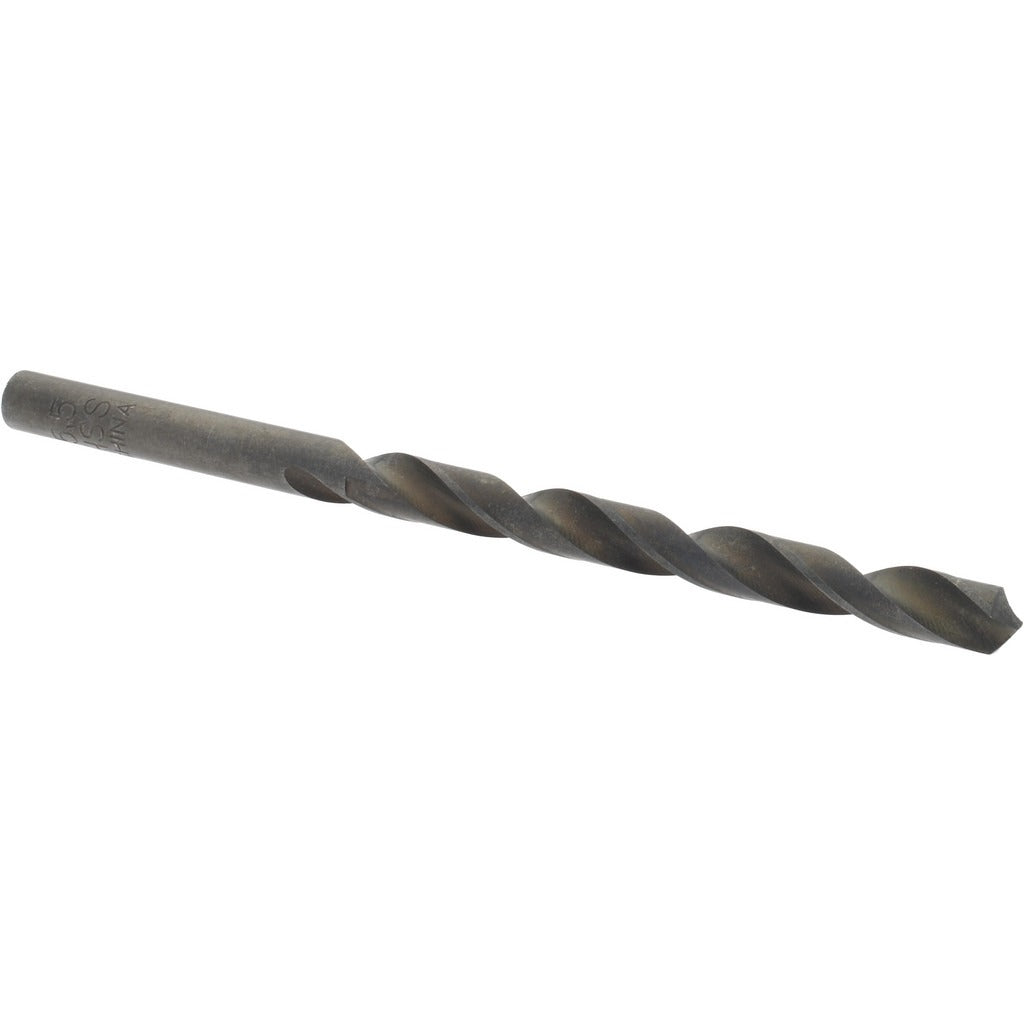

Value Collection 01245505 Jobber Drill Bit 5.50mm Hss

Product Description

The VALUE COLLECTION 01245505 is a high speed steel (HSS) jobber-length drill bit designed for general-purpose drilling in steel, cast iron, and similar ferrous materials. The bit measures 5.50 mm (0.2165 inches) in diameter with an overall length of 3.7344 inches (95.00 mm). The 118-degree standard point angle suits a broad range of workpiece materials and drilling conditions. An oxide finish provides light corrosion resistance and helps reduce friction during cutting. The straight cylindrical shank seats securely in standard drill chucks, and the web-thinned, tapered web design reduces thrust requirements at the point. Licensed tradespeople and maintenance technicians commonly select this drill size for tapping predrills, clearance holes, and general metalwork.

This jobber drill is suited for production and maintenance drilling in residential and light commercial shop environments. The 2-flute regular spiral flute geometry evacuates chips effectively in through-hole and blind-hole applications in steel and cast iron. With a flute length of 2.5156 inches (64.00 mm), the bit handles material depths typical of jobber-series work. Right-hand cutting direction is standard for conventional drill press, hand drill, and mill spindle use. The general-purpose grade makes this bit a practical stocking item for HVAC, plumbing, electrical, and mechanical trade shops requiring consistent metric drill sizing.

Key Features

• 5.50 mm (0.2165 inch) diameter — falls within the 5.00 to 6.00 mm drill size range
• 118-degree standard point angle for broad material compatibility
• High speed steel (HSS) construction for durability in ferrous workpiece materials
• Oxide coating for light corrosion resistance and reduced friction
• Web-thinned, tapered web reduces point thrust and improves penetration
• Straight cylindrical shank fits standard drill chucks without modification

Compatibility

Designed as a general-purpose jobber-length drill bit for use in standard three-jaw drill chucks on hand drills, drill presses, and milling machines where a 5.50 mm straight-shank bit is required. Primary workpiece materials are steel and cast iron.

Installation Notes

Drill bit installation and use should be performed by qualified tradespeople familiar with rotary cutting tool safety. Secure the shank fully in the chuck and verify the bit runs true before beginning a cut. Power down and de-energize the drilling equipment before changing bits. Always wear appropriate eye protection and secure the workpiece to prevent movement during drilling.
