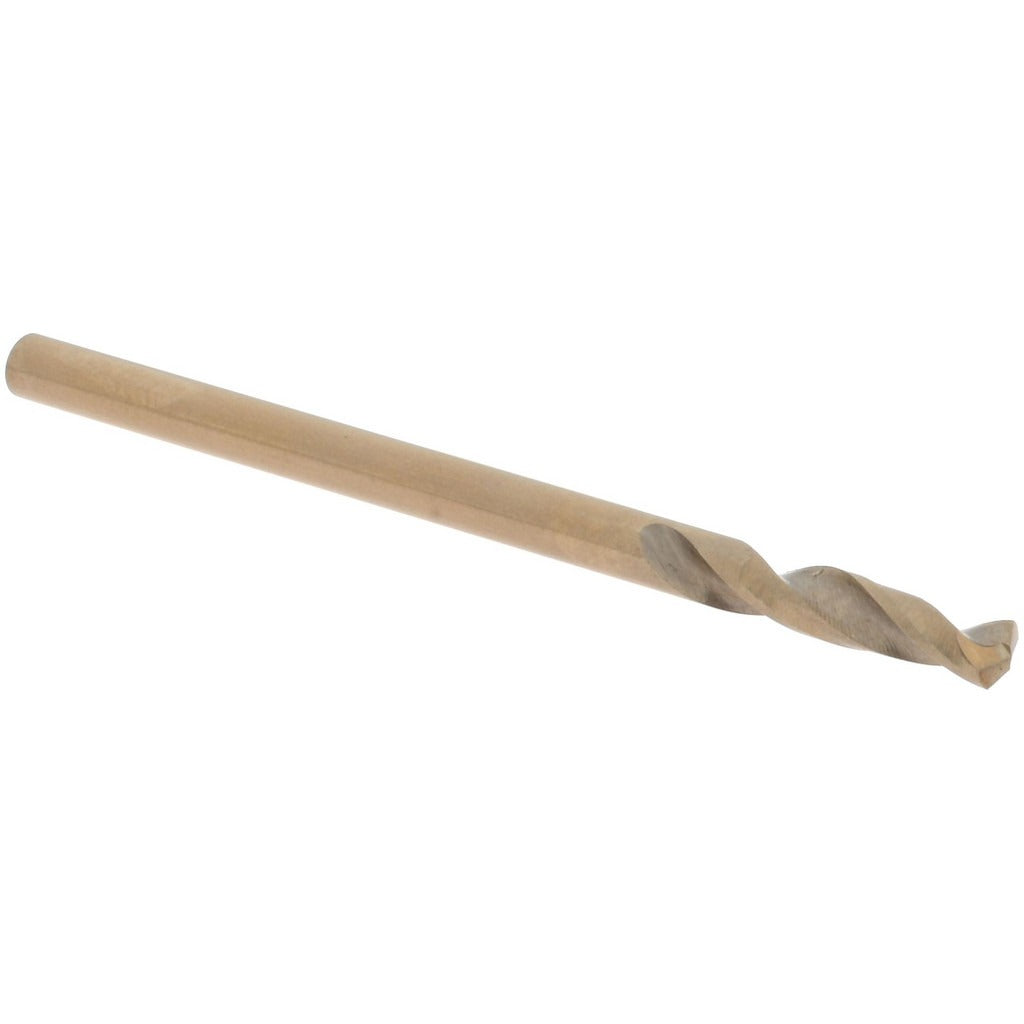

Value Collection 01195635 Screw Machine Drill Bit 2.50mm

Product Description

The VALUE COLLECTION 01195635 is a screw machine length cobalt drill bit designed for high-speed drilling in tough materials where standard high-speed steel bits fall short. At 2.50 mm in diameter (0.0984 inch), this bit features a 135-degree split point that reduces walking on contact and allows drilling to start without a center punch in many applications. The cobalt construction provides heat resistance during heavy-duty drilling cycles. With an overall length of 43.00 mm (1.69 inches) and a flute length of 14.00 mm, the shortened screw machine length body offers increased rigidity and reduced deflection compared to jobber-length bits.

This bit is suited for production drilling, machining operations, and maintenance work where a short, stiff drill is needed in tight spaces or on hard materials such as stainless steel, cast iron, and hardened alloys. The straight shank fits standard drill chucks and quick-change holders. It cuts right-hand with a regular spiral flute pattern and carries a straw finish. It is sold individually with a minimum order quantity of 12 units.

Key Features

• 2.50 mm (0.0984 inch) diameter cobalt construction rated for heavy-duty use
• 135-degree split point reduces thrust and minimizes bit walking on entry
• Screw machine length body increases rigidity and reduces deflection
• Regular spiral flute design for efficient chip evacuation
• Straight shank fits standard drill chucks and quick-change tooling
• Straw finish indicates cobalt alloy heat treatment

Compatibility

Designed as an OEM-style replacement or direct-use screw machine drill bit for standard straight-shank drill chucks and quick-change systems accepting bits in the 0.0000 to 0.1000 inch (0.00 to 3.50 mm) size range.

Installation Notes

Installation is performed by machinists or maintenance technicians using a standard keyed or keyless drill chuck. Ensure the chuck and spindle are fully stopped before inserting or removing the bit. Secure the shank fully into the chuck to the recommended engagement depth to prevent slippage and runout. Use appropriate cutting fluid or coolant for the workpiece material, as this bit does not support through-coolant delivery.
