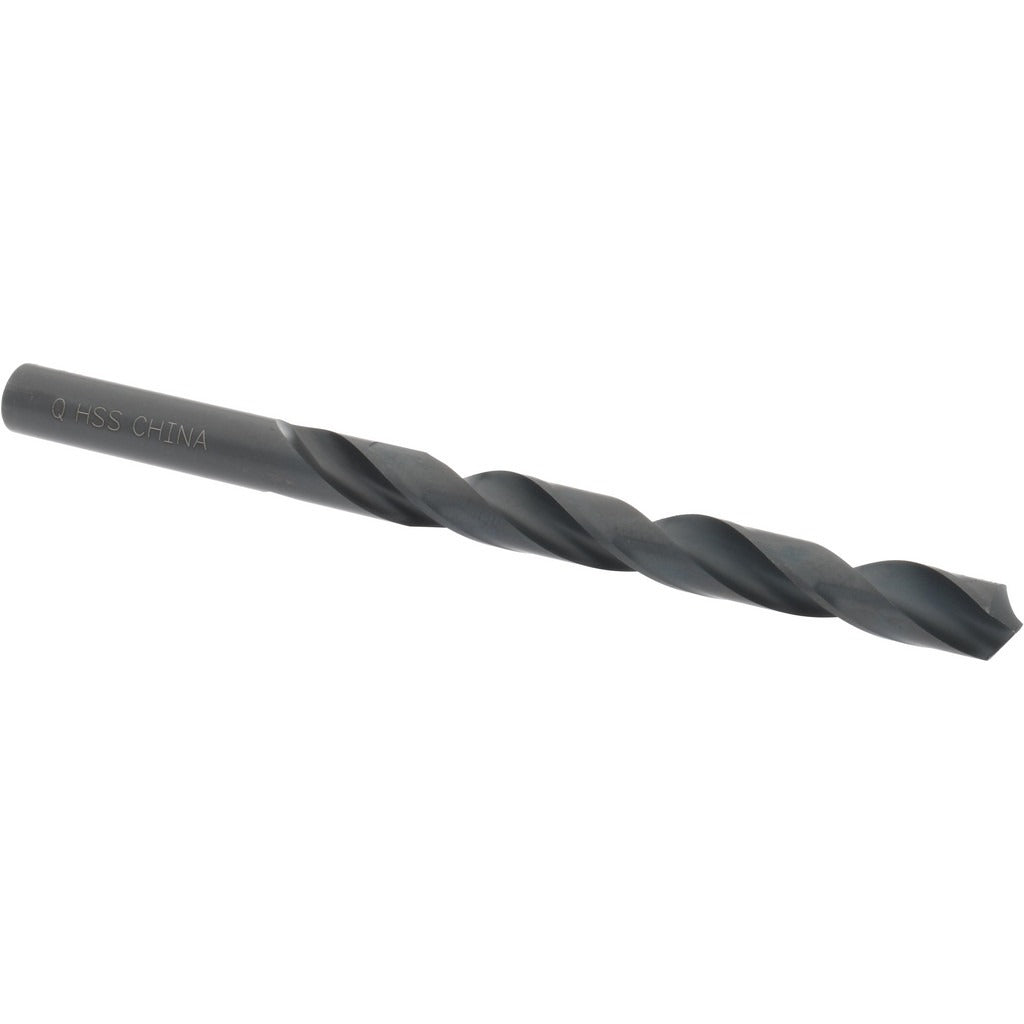

Value Collection 01189174 Letter Q Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01189174 is a Letter Q high-speed steel jobber drill bit designed for general-purpose drilling in ferrous materials. It measures 0.3320 inches in diameter and carries a standard 118-degree point angle, making it well-suited for a wide range of production and maintenance drilling tasks. The bit features an oxide coating that provides moderate lubricity and corrosion resistance during use. With an overall length of 4.75 inches and a flute length of 3.4375 inches, it fits standard drill chucks and is sized appropriately for hand-held drills, drill presses, and CNC drilling operations. Machinists, maintenance technicians, and industrial tradespeople are the primary users of this bit.

This jobber drill bit is intended for use in steel and cast iron workpieces across residential maintenance, commercial fabrication, and light industrial applications. The straight cylindrical shank allows direct chuck mounting on most standard drilling equipment. The web-thinned, tapered web configuration reduces thrust required at the point, improving chip evacuation in deeper hole applications. It is sold individually and is packaged as a single unit per order.

Key Features

• Letter Q diameter: 0.3320 inches for precise letter-size hole requirements
• 118-degree standard point angle for general-purpose drilling in steel and cast iron
• High-speed steel construction with oxide coating for heat and wear resistance
• Web-thinned tapered web reduces drilling thrust and improves chip clearing
• Right-hand regular spiral flute geometry for standard cutting direction
• Straight cylindrical shank fits most standard drill chucks without adapters

Compatibility

Designed as a general-purpose replacement or stock drill bit for use in standard drill chucks accepting a 0.3320-inch straight shank, compatible with drill presses, hand drills, and CNC drilling equipment configured for Letter Q diameter work in steel and cast iron.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard drill chuck tightening procedures. Ensure the drilling machine is powered down and secured before changing bits. Verify chuck jaw condition and confirm the shank is fully seated and centered before operation. Follow applicable workplace safety standards for rotating machinery when operating at speed.
