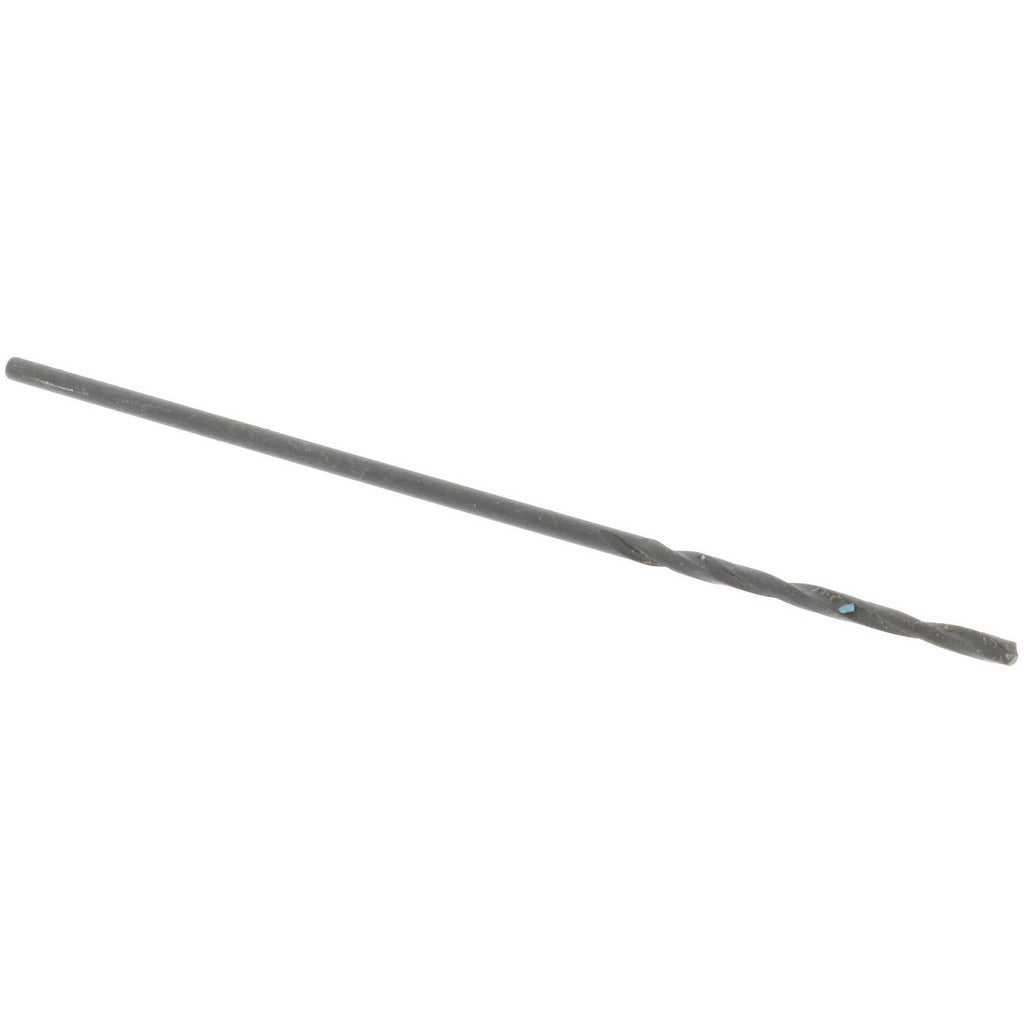

Value Collection 01188697 No 69 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188697 is a wire gauge No. 69 jobber-length drill bit designed for general-purpose drilling in steel and cast iron. Built from high speed steel (HSS) with an oxide coating, it features a standard 118-degree point angle and a right-hand spiral flute for consistent chip evacuation. The tapered web with web-thinning reduces thrust and makes starting easier on hard ferrous materials. At 1.375 inches overall length with a 0.500-inch flute length, this bit is sized for tight-clearance applications where a standard jobber reach is required. Machinists, maintenance technicians, and trade professionals install these bits in hand drills, drill presses, and CNC equipment.

This bit is suited for light metalworking tasks in residential and commercial maintenance, fabrication shops, and field service environments. Its 0.0292-inch decimal diameter corresponds to the No. 69 wire gauge designation, making it a common choice for tapping pilot holes, clearance holes for small fasteners, and precision-fit drilling in thin ferrous stock. The straight cylindrical shank fits standard three-jaw chucks without adapters.

Key Features

• Wire gauge No. 69 size, 0.0292-inch decimal diameter
• 118-degree standard point angle with web-thinned, tapered web for reduced thrust
• High speed steel construction with oxide coating for corrosion and wear resistance
• Right-hand cutting, regular spiral flute for efficient chip removal
• Straight cylindrical shank compatible with standard three-jaw chucks
• General-purpose grade rated for steel and cast iron workpieces

Compatibility

Designed as a general-purpose jobber drill bit for use in hand drills, benchtop drill presses, and machining centers accepting a straight cylindrical shank. Primary workpiece materials are steel and cast iron per manufacturer specification.

Installation Notes

Installation is performed by machinists or maintenance technicians familiar with rotary cutting tools. Secure the shank fully in the chuck and verify concentricity before drilling. Use appropriate cutting fluid or coolant when drilling ferrous materials to extend tool life, noting this bit does not support coolant-through delivery. Inspect the cutting edges for wear before each use and replace bits showing chipping or dulling to maintain hole-size accuracy.
