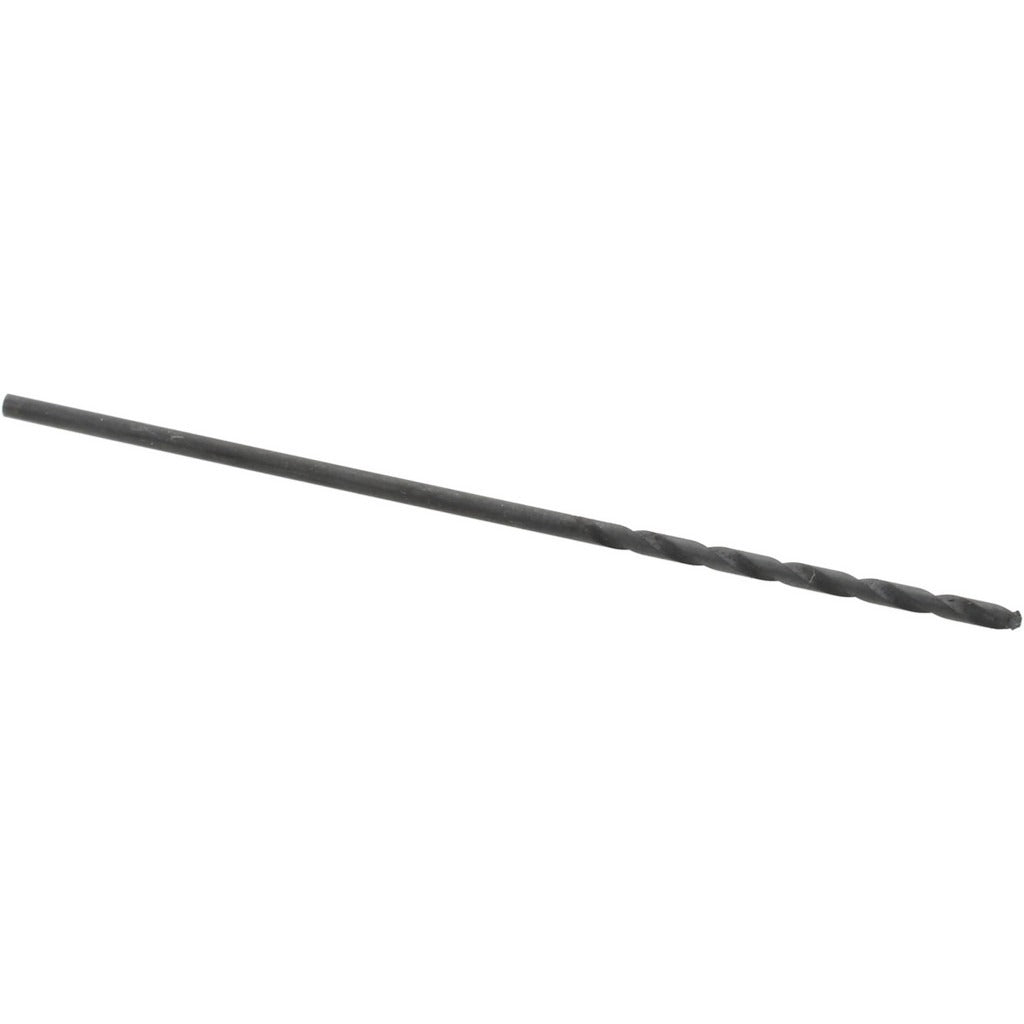

Value Collection 01188655 No. 65 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188655 is a No. 65 wire-size jobber-length drill bit ground from high speed steel (HSS) with an oxide coating for added surface hardness and corrosion resistance. The bit measures 0.0350 inches in diameter and 1.5 inches overall, with a 0.625-inch spiral flute length. The 118-degree standard point angle suits general-purpose drilling in a wide range of materials. Right-hand cutting direction and a straight cylindrical shank make this bit compatible with standard drill chucks. Web-thinned construction with a tapered web reduces thrust at entry and helps the point self-center on the workpiece. Machinists, maintenance technicians, and sheet-metal workers are the typical users.

This bit is suited for production and maintenance drilling in steel and cast iron, as well as softer metals and plastics where a general-purpose HSS bit performs reliably. Its compact 1.5-inch overall length and small 0.0350-inch diameter make it appropriate for precision work requiring tight-tolerance holes, pilot holes, or clearance holes in light-gauge material. The oxide finish provides mild lubricity during cutting, which is useful in dry-drilling situations common in field maintenance and shop environments.

Key Features

• No. 65 wire size — 0.0350-inch diameter for precision small-hole drilling
• 118-degree standard point angle for general-purpose use in steel and cast iron
• High speed steel construction resists heat buildup during continuous drilling
• Oxide coating adds surface hardness and mild lubricity without a dedicated cutting fluid
• Web-thinned, tapered web design reduces entry thrust and improves self-centering
• Right-hand spiral flute clears chips efficiently in typical drill press and hand-drill applications

Compatibility

Designed as a general-purpose jobber drill bit for use in standard drill chucks accepting a straight cylindrical shank; suitable for drilling steel, cast iron, and similar materials in maintenance, machining, and fabrication applications.

Installation Notes

Secure the straight shank firmly in the drill chuck before use and confirm the bit runs true to minimize deflection at this small diameter. Always wear appropriate eye protection when drilling metal. Ensure the workpiece is clamped or fixtured securely before starting the cut to prevent the bit from walking. If the bit is used in a drill press, set spindle speed according to standard HSS speed charts for the workpiece material and bit diameter.
