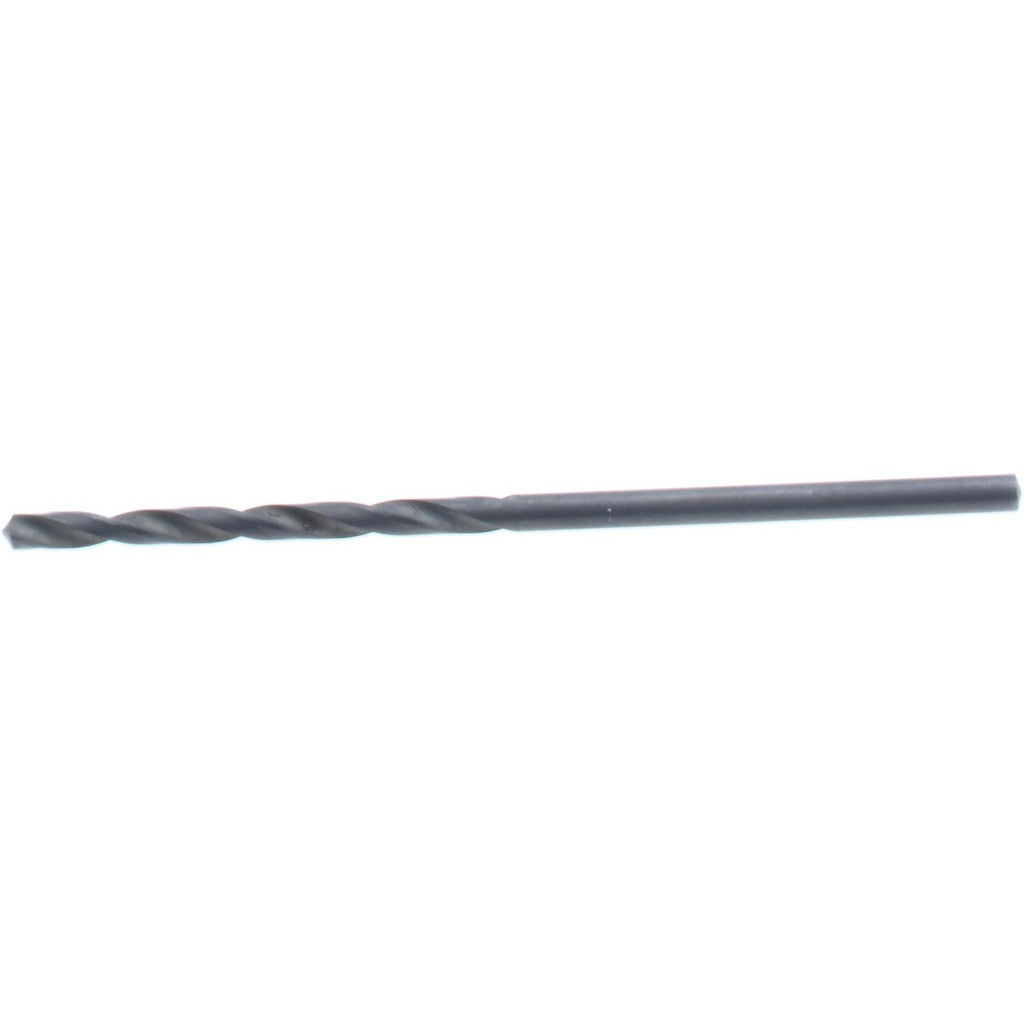

Value Collection 01188465 No 46 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188465 is a No. 46 wire-gauge jobber-length drill bit designed for general-purpose drilling in steel, cast iron, and similar ferrous materials. Built from high speed steel (HSS) with an oxide coating for added lubricity and corrosion resistance, the bit features a standard 118-degree point angle suited to a wide range of metal drilling applications. The straight cylindrical shank accepts standard drill chucks without an adapter. At 2.125 inches overall length with a 1.125-inch flute length, this compact jobber bit is well-suited to confined drilling scenarios where a longer bit would be impractical.

This bit is intended for use in hand-held drills, drill presses, and CNC equipment in light industrial, maintenance, and fabrication settings. Its 0.0810-inch diameter and wire-gauge sizing make it a common choice for tapping pilot holes, precision clearance holes, and close-tolerance work in ferrous metals. The two-flute regular spiral design promotes chip evacuation, and the web-thinned, tapered web construction reduces thrust required at the point during entry.

Key Features

• No. 46 wire gauge diameter — 0.0810 inches for precision small-hole work
• 118-degree standard point angle for general-purpose metal drilling
• High speed steel construction with oxide coating for wear and corrosion resistance
• Web-thinned tapered web reduces entry thrust and walking tendency
• Right-hand cutting, regular spiral flute for consistent chip evacuation
• Straight cylindrical shank fits standard drill chucks without adapters

Compatibility

Designed as a general-purpose replacement or stock jobber drill bit for use in any standard drill chuck accepting a 0.0810-inch straight shank, suitable for ferrous metal drilling applications including steel and cast iron.

Installation Notes

Drill bit installation and use should be performed by qualified machinists, maintenance technicians, or trade professionals familiar with proper speeds and feeds for HSS tooling in ferrous materials. Secure the shank fully in the chuck and confirm runout before beginning a cut. Coolant-through drilling is not supported by this bit design; apply cutting fluid externally when drilling steel to extend tool life. Inspect the cutting edges before each use and replace bits showing chipping or heat discoloration.
