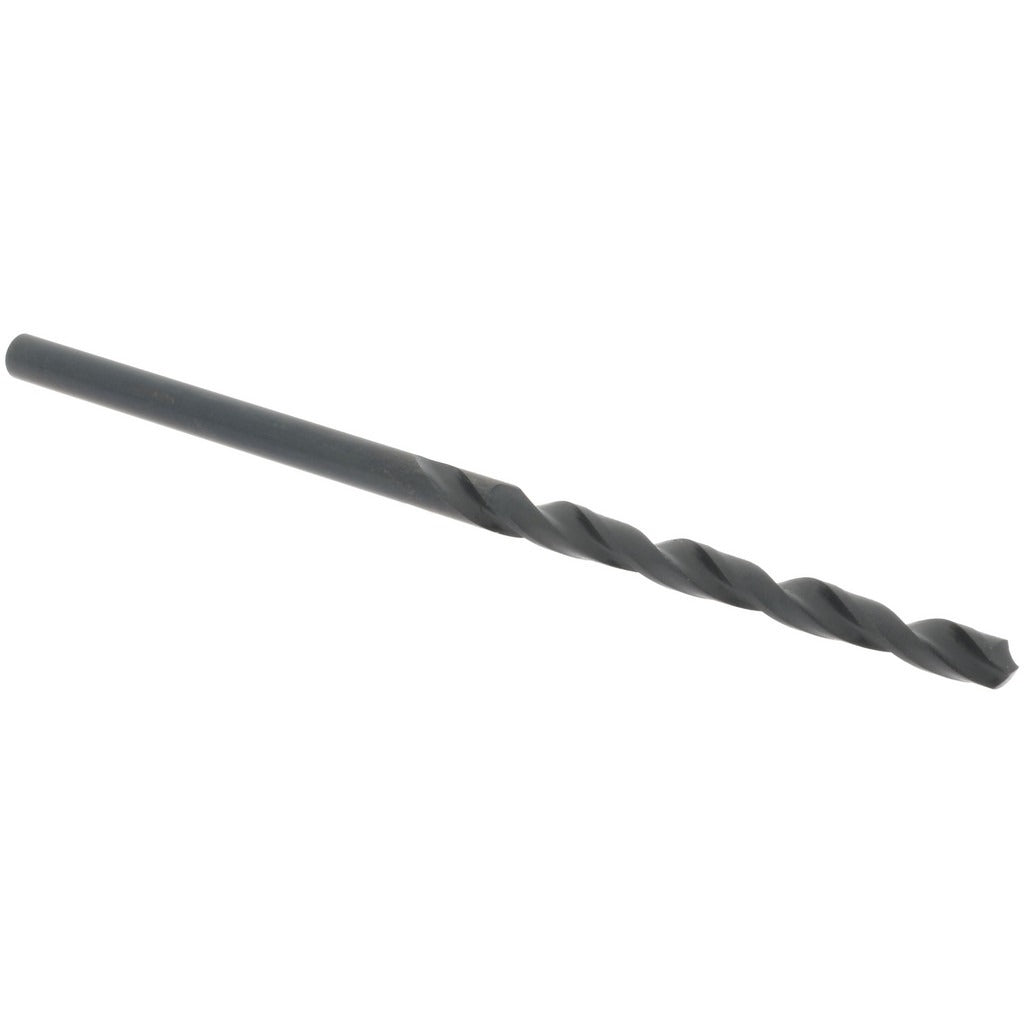

Value Collection 01188382 No 38 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188382 is a No. 38 wire gauge jobber-length drill bit designed for general-purpose drilling in steel and cast iron. It is ground from high speed steel (HSS) with an oxide coating that provides mild lubricity and corrosion resistance during service. The 118-degree standard point angle suits flat or slightly curved stock where a conventional entry geometry is appropriate. With an overall length of 2.5 inches and a flute length of 1.4375 inches, this bit is sized for benchtop drill presses, hand drills, and right-angle drill drivers used in mechanical, HVAC, plumbing, and electrical rough-in work.

This drill bit is suited for production and maintenance drilling tasks in ferrous materials including mild steel and cast iron. It handles pilot holes, clearance holes, and through-holes in sheet metal, structural angle, and light plate stock. The straight cylindrical shank at 0.1015 inches in diameter seats directly in standard drill chucks without an adapter. Tradespeople who need consistent No. 38 sizing for tapping operations or wire-pass-through holes will find this bit appropriate for those workflows. The minimum order quantity is 12 pieces per order, with each unit packaged individually.

Key Features

• No. 38 wire gauge size, 0.1015 inches decimal equivalent
• 118-degree standard point angle for conventional drilling in ferrous materials
• High speed steel construction with oxide coating for added surface protection
• Regular spiral flute with web-thinned, tapered web configuration for improved chip clearance
• Right-hand cutting direction, straight cylindrical shank for standard drill chuck compatibility
• 2-flute geometry suited for steel and cast iron primary workpiece materials

Compatibility

Designed as a general-purpose jobber drill bit for use in standard keyed and keyless drill chucks accepting a 0.1015-inch straight shank. Suitable for drilling steel and cast iron in residential and commercial trade applications.

Installation Notes

Installation of this drill bit is performed by licensed tradespeople or qualified technicians using standard drill presses or portable hand drills. Secure the straight shank fully in the chuck and verify it is centered before operation. Always wear appropriate eye protection and secure the workpiece before drilling. Follow applicable OSHA and shop-safety guidelines when operating drilling equipment.
