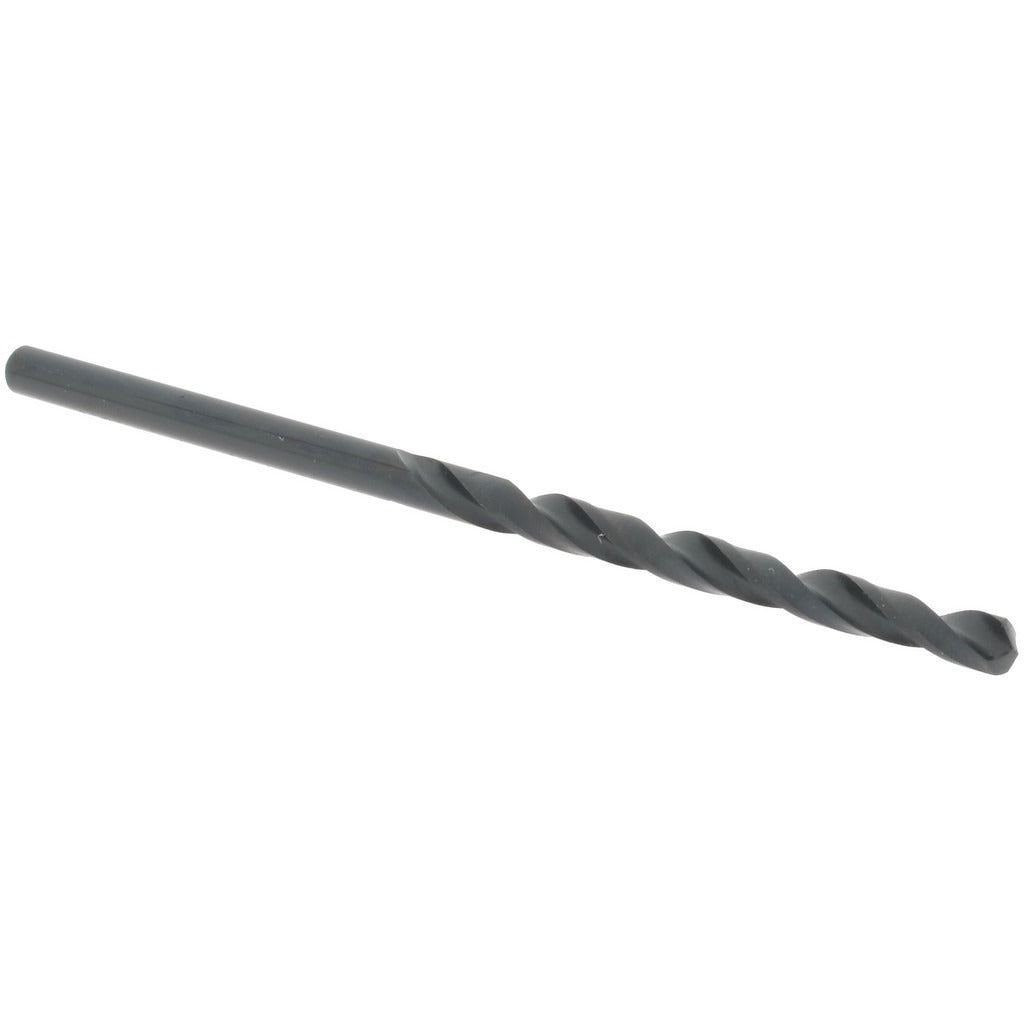

Value Collection 01188333 No 33 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188333 is a No. 33 wire gauge jobber-length drill bit designed for general-purpose drilling in steel, cast iron, and similar ferrous materials. Built from high speed steel (HSS) with an oxide coating, it offers improved lubricity and basic corrosion resistance during drilling operations. The 118-degree standard point angle is the conventional geometry for metal drilling, providing reliable center-starting performance on flat and curved stock. At 2.625 inches overall length with a 1.5-inch flute length, this is a compact, jobber-format bit suited for hand drills, drill presses, and CNC turret setups where straight-shank tooling is required.

This bit is intended for metalworking applications where wire gauge sizing is specified, such as tapping pre-drill operations, clearance hole drilling, and sheet metal work. The 0.1130-inch decimal diameter corresponds to a No. 33 wire gauge designation. It is appropriate for use in residential, commercial, and light industrial settings by machinists, pipefitters, electricians, and HVAC technicians who need precise small-diameter holes in ferrous workpieces. The straight cylindrical shank accepts standard drill chucks without adapters.

Key Features

• No. 33 wire gauge size — 0.1130 inch decimal diameter for precise small-hole work
• 118-degree standard point angle with web-thinned, tapered web geometry for reduced thrust
• High speed steel construction handles ferrous metals including steel and cast iron
• Oxide coating improves surface lubricity and provides basic chip clearance benefit
• Regular spiral flute with right-hand cutting direction — compatible with standard drill chucks
• Straight cylindrical shank — no adapter required for conventional three-jaw chucks

Compatibility

Designed as a general-purpose jobber drill bit for use in any standard drill chuck accepting a 0.1130-inch straight shank, including hand drills, drill presses, and CNC turret machines. Primary workpiece materials are steel and cast iron.

Installation Notes

Install and remove this bit only when the drill or drill press is fully de-energized and the chuck is stationary. Secure the workpiece with a vise or clamp before drilling to prevent rotation. Use appropriate cutting fluid when drilling steel to extend tool life and improve hole quality. Inspect the cutting edges for wear before each use — a dull bit in HSS can work-harden the workpiece surface, making re-drilling more difficult.
