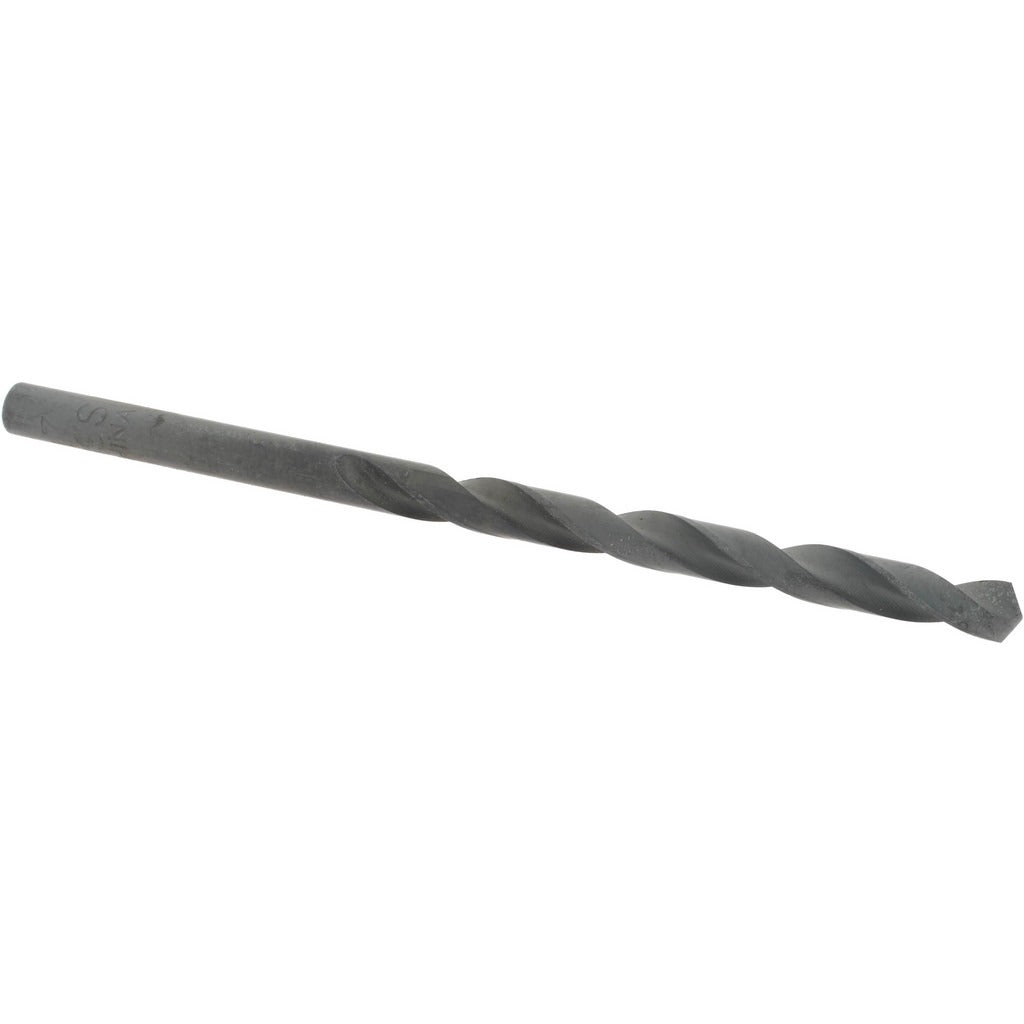

Value Collection 01188176 No. 17 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01188176 is a No. 17 wire-size jobber-length drill bit designed for general-purpose drilling in steel, cast iron, and similar ferrous materials. The bit is manufactured from high-speed steel (HSS) with an oxide coating that provides basic lubricity and surface protection during cutting. At 0.173 inches in diameter and 3.375 inches overall length, it fits standard 3-jaw drill chucks. The 118-degree standard point angle is the conventional geometry for drilling into metal, and the web-thinned, tapered-web configuration reduces thrust required to start and penetrate the cut.

This jobber drill is suited for production and maintenance drilling in metal fabrication shops, industrial maintenance, HVAC sheet metal work, and general mechanical trade applications. The straight cylindrical shank accepts any standard drill chuck on a drill press, hand drill, or mill. The right-hand spiral flute design evacuates chips efficiently during through-hole and blind-hole operations in ferrous stock. Sold individually; note that the minimum order quantity from the supplier is 12 units.

Key Features

• No. 17 wire size, 0.1730 inch diameter for precise hole sizing in metal
• High-speed steel construction handles the heat generated in metal drilling
• Oxide coating provides surface lubricity and basic corrosion resistance
• 118-degree standard point angle suits general ferrous metal drilling
• Web-thinned tapered web reduces drill thrust and improves penetration
• Right-hand regular spiral flute with 2.1875 inch flute length for effective chip evacuation

Compatibility

Designed as a general-purpose jobber drill for use in steel and cast iron workpieces. Straight cylindrical shank is compatible with standard 3-jaw drill chucks across drill presses, hand drills, and milling machine setups.

Installation Notes

Secure the shank fully in the drill chuck and verify concentricity before beginning a cut. Use appropriate cutting fluid or cutting oil when drilling ferrous metals to extend bit life and improve hole finish. A licensed machinist or qualified trade professional should verify drill speed (RPM) against the workpiece material and bit diameter before operation. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point is damaged.
