Value Collection 01167733 No 73 Hss Jobber Drill Bit

Product Description

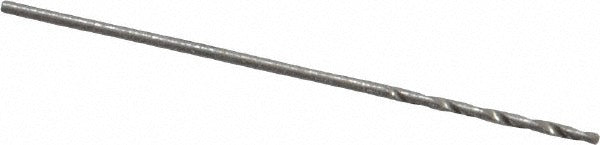

The VALUE COLLECTION 01167733 is a No. 73 wire-size jobber-length drill bit ground from high-speed steel (HSS) with a bright, uncoated finish. The 118-degree standard point angle suits general-purpose drilling in aluminum, non-ferrous metals, and similar soft-to-medium materials. The right-hand, regular spiral flute design provides efficient chip evacuation in short-hole applications. At 1.125 inches overall length with a 0.3125-inch flute length, this is a compact bit intended for light-duty precision work. Licensed technicians, machinists, and trade professionals use wire-gauge bits like this for pilot holes, tapping prep, and instrument-port drilling in tight spaces.

This bit is suited for shop and field use wherever a 0.0240-inch diameter hole is required. Typical applications include drilling soft metals such as aluminum, copper, and brass, as well as plastics and composites. The tapered web configuration with web thinning reduces thrust force at the cutting tip, making it practical for hand-held drilling operations as well as drill-press work. The straight cylindrical shank seats directly into standard drill chucks without adapters.

Key Features

• No. 73 wire size — 0.0240-inch decimal diameter for precise, small-bore work
• 118-degree standard point angle for general-purpose drilling in aluminum and non-ferrous materials
• High-speed steel construction for durability across repeated use cycles
• Bright, uncoated finish — no added coating to alter dimensional tolerances at this size
• Web-thinned, tapered web reduces entry thrust and improves centering
• Right-hand, regular spiral flute promotes clean chip evacuation in short, shallow holes

Compatibility

Designed as a general-purpose jobber drill bit compatible with any standard drill chuck that accepts a 0.0240-inch straight cylindrical shank, including hand drills, drill presses, and CNC spindles configured for small-diameter tooling.

Installation Notes

Installation and use of this bit should be performed by qualified machinists or trade professionals familiar with small-diameter tooling. Secure the straight shank fully in the chuck and verify runout before drilling. Use appropriate cutting fluid or lubricant when drilling non-ferrous metals to extend tool life and improve hole finish. Reduce feed pressure as the bit breaks through the far side of the workpiece to prevent tip breakage at this small diameter.
