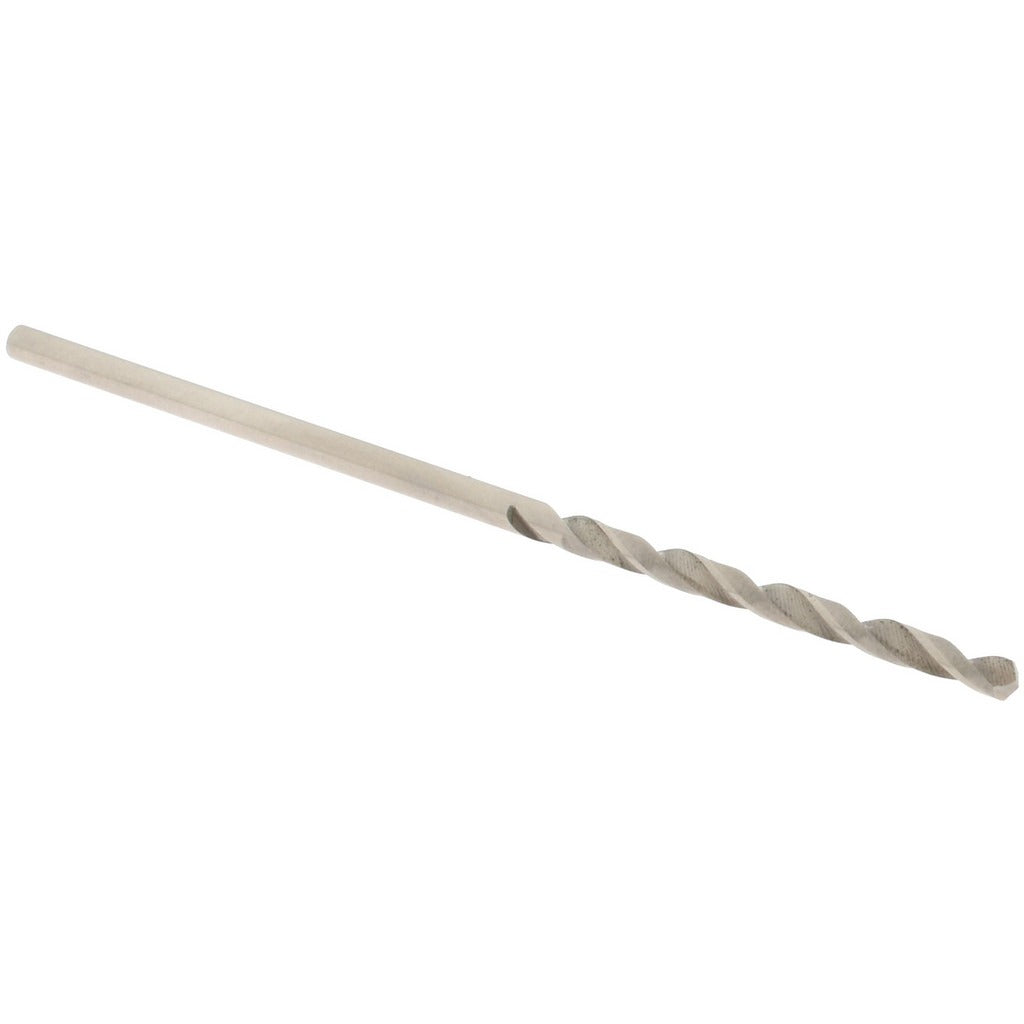

Value Collection 01167543 No 54 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01167543 is a No. 54 wire gauge jobber-length drill bit ground from high speed steel (HSS) with a bright, uncoated finish. It carries a standard 118-degree split point and a regular spiral flute for general-purpose drilling applications. The overall length is 1.875 inches with a flute length of 0.875 inches and a straight cylindrical shank diameter of 0.0550 inches. The web is thinned with a tapered web configuration to reduce thrust and improve chip evacuation. This bit is installed by machinists, maintenance technicians, HVAC fabricators, and trade professionals who need a small-diameter drill for precision work in soft and non-ferrous materials.

The 01167543 is suited for drilling aluminum, copper, brass, and other non-ferrous materials in light manufacturing, field fabrication, and bench work. Its 0.0550-inch diameter makes it a common choice for pilot holes, clearance holes, and small fastener applications in sheet metal and non-ferrous stock. The straight shank accepts standard drill chucks without adapters, making it compatible with handheld drills, drill presses, and CNC spindles running appropriate low-speed, high-feed parameters for HSS tooling.

Key Features

• No. 54 wire gauge size — 0.0550 inches decimal equivalent
• 118-degree standard point angle for general-purpose drilling
• High speed steel construction with bright uncoated finish
• Regular spiral, two-flute design for efficient chip removal
• Web-thinned tapered web reduces drill thrust in small-diameter applications
• Right-hand cutting direction, straight cylindrical shank

Compatibility

Designed as a general-purpose jobber drill bit for use in aluminum and non-ferrous workpiece materials. Fits any standard drill chuck accepting a 0.0550-inch straight shank.

Installation Notes

This bit is used by machinists and trade technicians in drill presses, hand drills, and CNC equipment. Secure the workpiece firmly before drilling and use appropriate cutting fluid or lubrication when drilling non-ferrous metals to extend tool life. At this diameter, excessive feed pressure or lateral force can cause bit deflection or breakage — use a center punch to locate the hole before starting. Follow applicable shop safety practices and equipment manufacturer guidelines for chuck speeds and feeds with HSS tooling.
