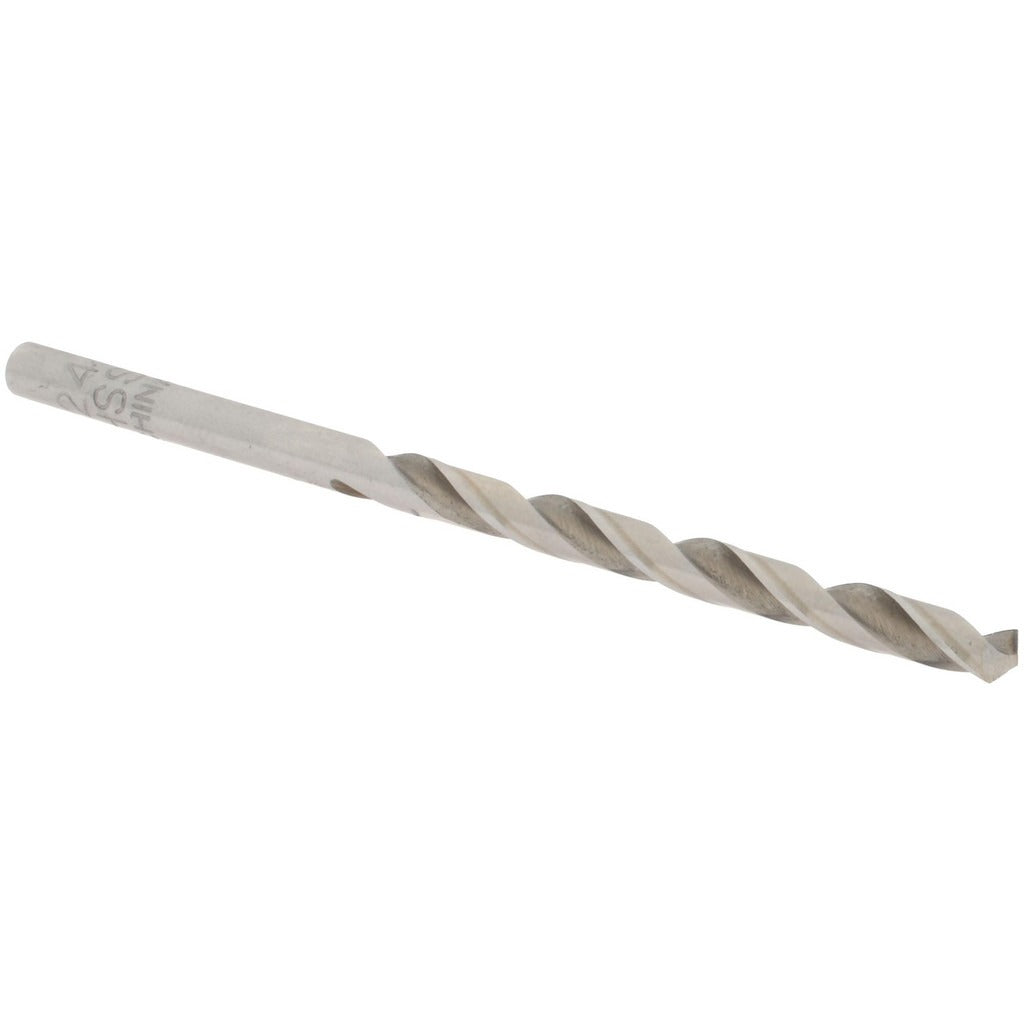

Value Collection 01167246 No. 24 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION 01167246 is a No. 24 wire gauge high speed steel jobber drill bit designed for general-purpose drilling in metal fabrication, maintenance, and light industrial applications. The bit measures 0.1520 inches in diameter with an overall length of 3.125 inches and a flute length of 2.0 inches. The 118-degree standard point angle provides a versatile cutting geometry suited to a wide range of workpiece materials. The bright uncoated finish is a reliable choice for applications where coating adhesion or heat buildup is not a primary concern. A tapered web with web-thinned geometry reduces thrust during entry and helps maintain clean hole starts.

This jobber drill is intended for use on aluminum, non-ferrous metals, and other soft to medium-hardness materials. It is commonly used in production shops, HVAC fabrication, plumbing rough-in, electrical panel work, and general mechanical assembly where wire gauge sizing is specified. The straight cylindrical shank accepts standard drill chucks on handheld drills and drill presses. The right-hand spiral flute configuration and two-flute design provide good chip evacuation during through-hole and blind-hole drilling operations.

Key Features

• No. 24 wire gauge diameter — 0.1520 inches for precise wire gauge hole sizing
• 118-degree standard point angle for general-purpose entry into non-ferrous materials
• High speed steel construction provides adequate hardness for aluminum and non-ferrous workpieces
• Bright uncoated finish — no coating degradation risk in low-heat drilling applications
• Tapered web with web-thinned tip reduces entry thrust and chatter
• Two-flute regular spiral design promotes consistent chip clearance

Compatibility

Designed as a general-purpose replacement or stock drill bit for wire gauge No. 24 applications. Fits any standard drill chuck accepting a 0.1520-inch straight cylindrical shank.

Installation Notes

Secure the workpiece before drilling to prevent movement and ensure straight hole entry. Use a center punch to mark the hole location and reduce bit walking at startup. For drilling aluminum and non-ferrous metals, a light cutting fluid or lubricant can extend bit life and improve hole finish. Inspect the cutting edges before each use and replace bits showing chipping, heat discoloration, or dulling to maintain hole quality and prevent workpiece damage.
