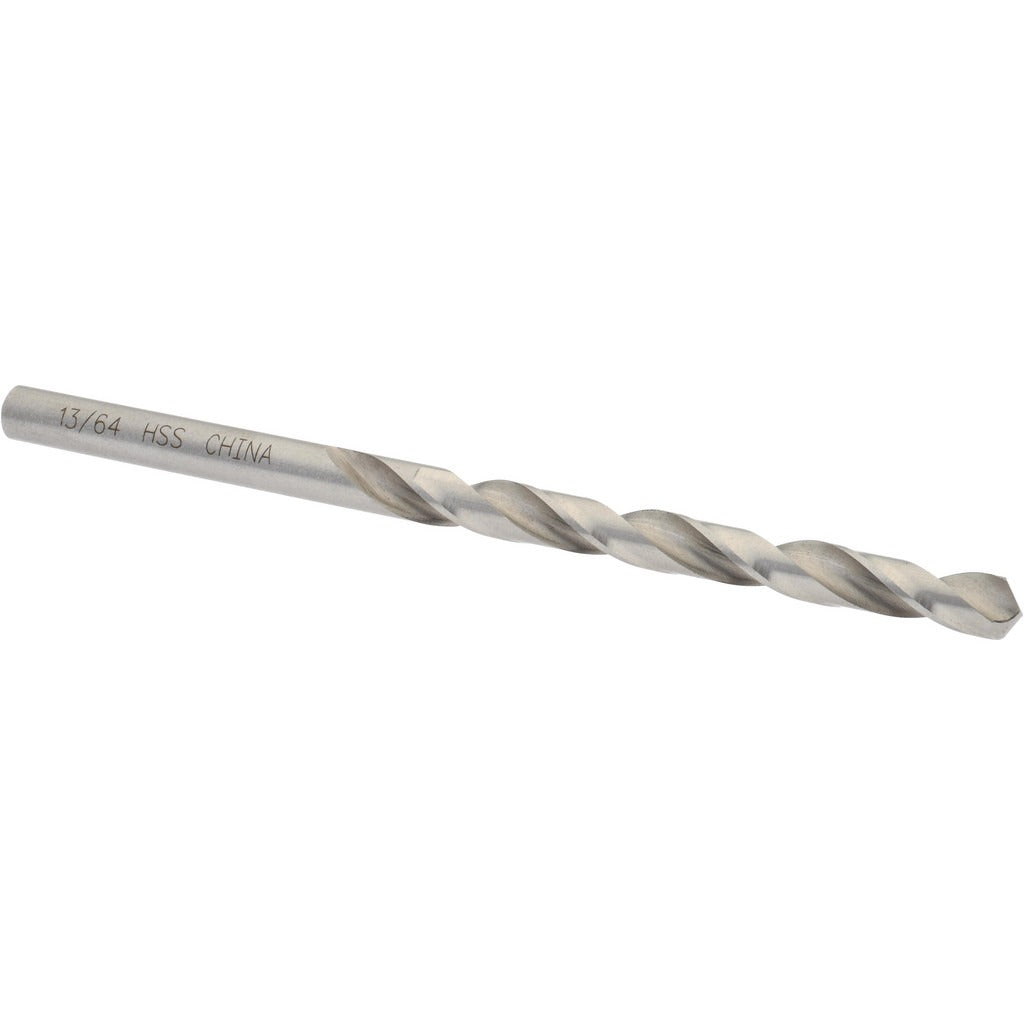

Value Collection 01165133 Jobber Drill Bit 13/64 in Hss

Product Description

The VALUE COLLECTION 01165133 is a general-purpose jobber-length drill bit designed for drilling in aluminum, non-ferrous metals, and similar materials. It is manufactured from high speed steel (HSS) with a bright, uncoated finish and features a standard 118-degree split point for consistent starting and clean hole entry. The straight cylindrical shank measures 0.2031 inches in diameter, and the overall length is 3.625 inches. Two regular spiral flutes with a tapered web and web-thinned geometry help evacuate chips efficiently. This bit is suited for use in drill presses, hand drills, and light CNC setups where general-purpose performance is required.

This jobber drill bit is intended for production and maintenance applications where 13/64-inch holes are required in aluminum, copper, brass, plastics, and other non-ferrous workpiece materials. The right-hand cutting direction and regular spiral flute design make it a standard choice for machinists, maintenance technicians, and fabricators working in light industrial or shop environments. Coolant-through capability is not supported, making it best suited for air-cooled or flood-cooled external setups.

Key Features

• 13/64-inch (0.2031 inch) drill bit diameter with matching straight cylindrical shank
• 118-degree standard point angle for reliable entry on non-ferrous materials
• High speed steel construction for durability in general-purpose applications
• Bright, uncoated finish — no coating buildup concerns on soft metals
• Web-thinned, tapered web design for reduced thrust and cleaner starts
• 2-flute regular spiral geometry promotes efficient chip evacuation

Compatibility

Designed as a general-purpose jobber drill bit for use in standard 3-jaw drill chucks and collet systems accepting a 0.2031-inch straight cylindrical shank. Intended for aluminum and non-ferrous workpiece materials.

Installation Notes

Secure the straight shank fully in a drill chuck or collet before operation and verify runout before beginning a drilling cycle. Power down the drill press or disconnect the tool from its power source before changing bits. Use appropriate feeds and speeds for the workpiece material to avoid work hardening or premature bit wear. Eye protection and appropriate workholding are required per standard shop safety practices.
