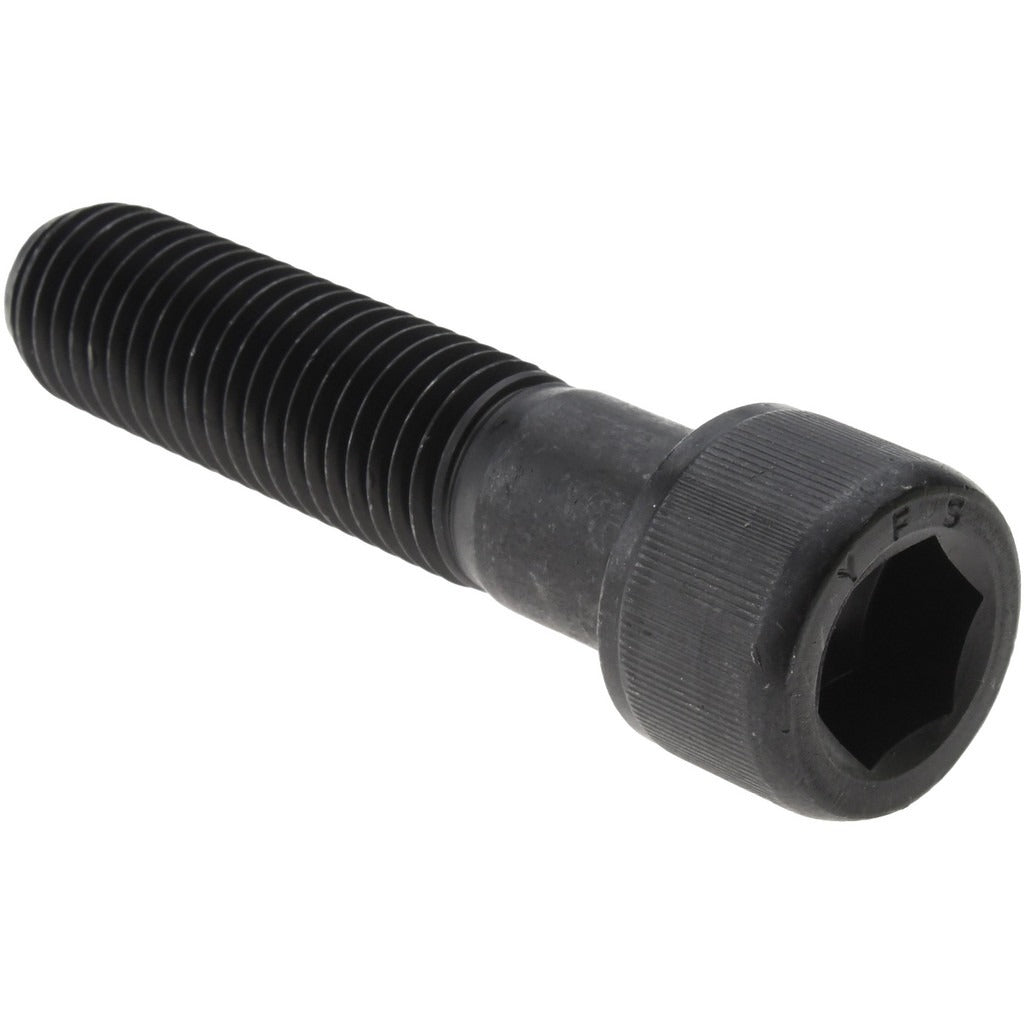

Value Collection 011475P Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION 011475P is a hex socket cap screw designed for high-strength bolted assemblies in industrial, mechanical, and structural applications. Machined from alloy steel with a black oxide finish, this fastener delivers corrosion resistance and a clean, uniform appearance. It features a 3/4-10 UNC thread size, a 3-1/4 inch length under head, and partial threading along the shank. The 5/8 inch hex drive socket head accepts standard hex keys and socket drivers. This fastener meets ASME/ANSI B18.3 and ASTM A574 standards, making it suitable for demanding load-bearing connections where dimensional accuracy and material strength are required.

This cap screw is commonly used in machine frames, fixtures, tooling, heavy equipment, and fabricated assemblies. Its partially threaded shank is suited for applications where the unthreaded portion bears shear loads or where precise clamping length control is needed. Machinists, millwrights, and industrial maintenance technicians typically install this fastener. The black oxide coating provides mild corrosion protection in indoor and controlled environments.

Key Features

• 3/4-10 UNC thread for broad compatibility with standard tapped holes and nuts
• 3-1/4 inch length under head with partial threading for shear-bearing installations
• Alloy steel construction meets ASTM A574 high-strength requirements
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• 5/8 inch hex drive compatible with standard hex keys and socket drive tools
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as an OEM-style replacement or standard-service fastener for industrial machinery, fixtures, and assemblies requiring a 3/4-10 UNC partially threaded hex socket cap screw per ASME/ANSI B18.3.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician using a calibrated hex key or socket drive sized to 5/8 inch. Verify that the mating tapped hole is clean, properly sized to 3/4-10 UNC, and free of debris before threading the fastener. Apply appropriate thread lubrication or threadlocker per the assembly specification. Always use a calibrated torque wrench to achieve the required clamp load without overloading the fastener.
