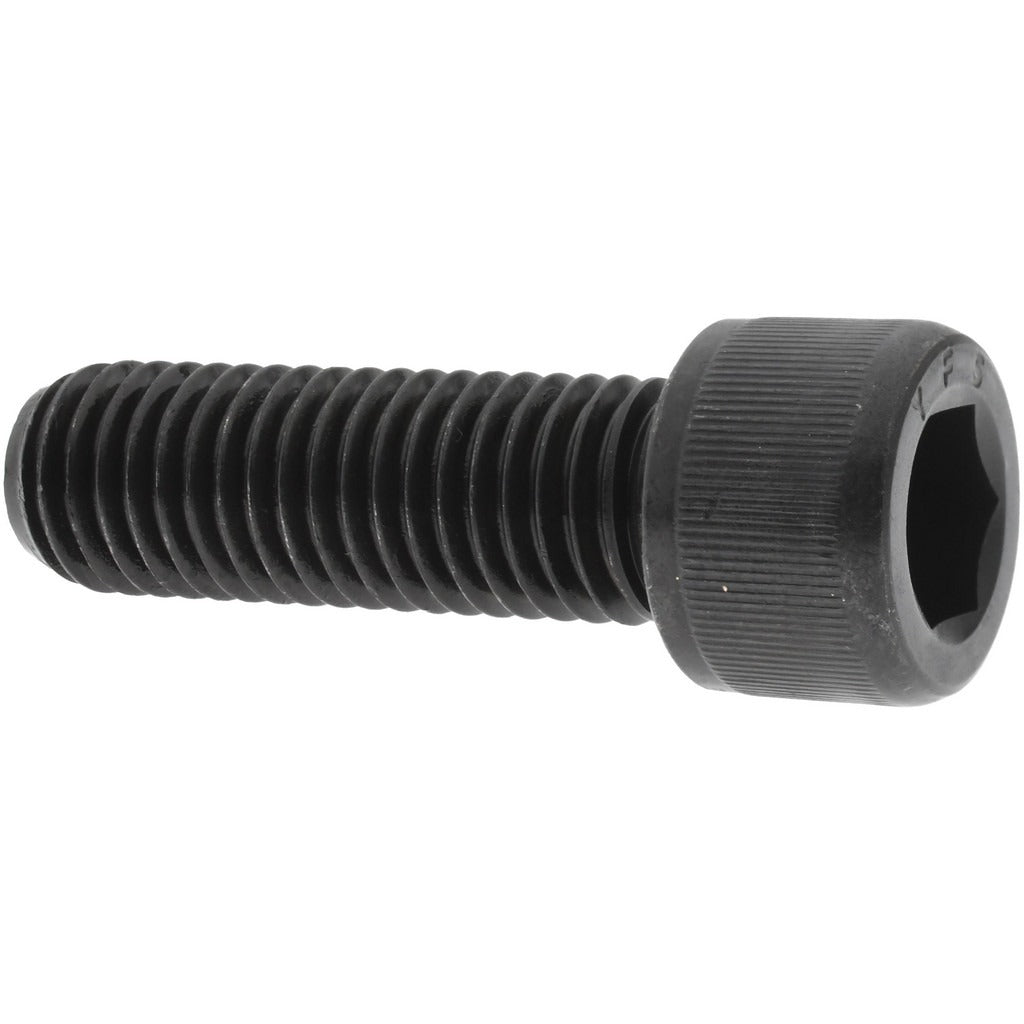

Value Collection 011417P Hex Socket Cap Screw 5/8-11 Unc

Product Description

The VALUE COLLECTION 011417P is a hex socket cap screw designed for high-strength fastening applications across industrial, mechanical, and structural assemblies. Sized at 5/8-11 UNC with a 2-inch length under head and fully threaded shank, this fastener is manufactured from alloy steel with a black oxide finish that provides moderate corrosion resistance and reduces surface glare. The 1/2-inch hex drive accepts standard hex keys and socket drivers used by machinists, millwrights, maintenance technicians, and mechanical contractors. It meets ASME/ANSI B18.3 and ASTM A574 standards, confirming dimensional accuracy and material performance requirements.

This cap screw is suited for through-bolt and tapped-hole applications in equipment frames, machinery bases, jigs, fixtures, and general fabrication work. The fully threaded design maximizes thread engagement along the entire fastener length, which is particularly useful in shallow or blind tapped holes where clamping force must be distributed evenly. The black oxide coating makes it easy to distinguish from stainless or uncoated fasteners in mixed-hardware environments.

Key Features

• 5/8-11 UNC thread size for use with standard tapped holes and nuts
• 2-inch length under head, fully threaded for maximum thread engagement
• Alloy steel construction meets ASTM A574 high-strength requirements
• Black oxide finish provides mild corrosion resistance and low-glare surface
• 1/2-inch hex drive compatible with standard hex keys and socket drivers
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as an OEM-style replacement or standard-stock fastener for any application requiring a 5/8-11 UNC hex socket cap screw per ASME/ANSI B18.3 dimensions.

Installation Notes

Installation is performed using a 1/2-inch hex key or socket driver. Ensure the mating tapped hole is clean, free of debris, and cut to 5/8-11 UNC specifications before installation. Power down and de-energize any equipment before fastener replacement on live machinery. Follow applicable ASME or facility torque standards for 5/8-11 alloy steel fasteners, and apply thread lubricant or thread-locking compound as required by the assembly specification.
