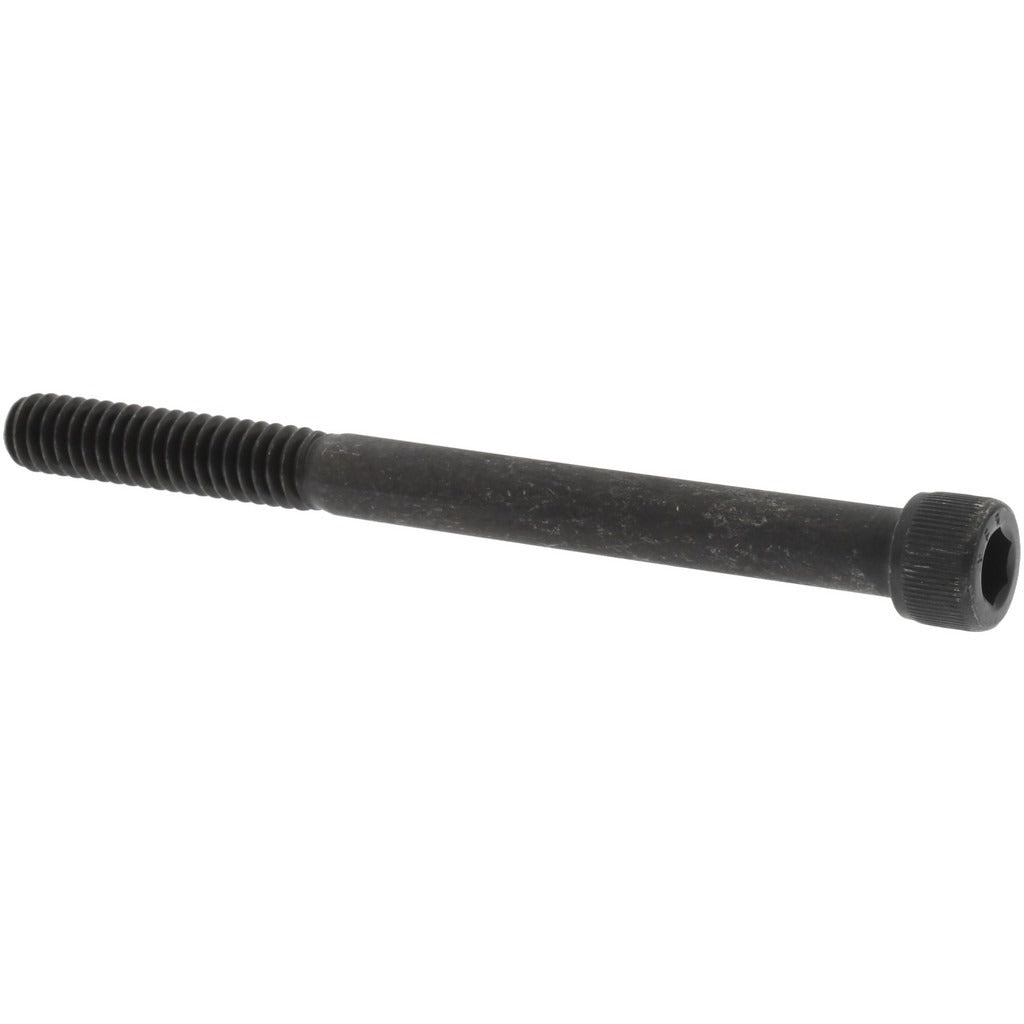

Value Collection 011169P Hex Socket Cap Screw 1/4-20 Unc

Product Description

The VALUE COLLECTION 011169P is a hex socket cap screw designed for high-strength fastening applications in mechanical assemblies, tooling, and structural components. It features a 1/4-20 UNC thread, a 3-inch length under the head, and a 3/16-inch hex drive socket. The fastener is partially threaded and manufactured from alloy steel with a black oxide finish for corrosion resistance. It conforms to ASME/ANSI B18.3 and ASTM A574 standards, making it suitable for use where dimensional consistency and tensile strength specifications matter. Weighing approximately 0.04 pounds per unit, it is a standard component stocked by maintenance professionals, machinists, and industrial contractors.

This socket cap screw is used wherever a low-profile, high-torque hex-drive fastener is required. Common applications include machine tool construction, fixture building, equipment enclosures, and jig assembly. The black oxide coating provides mild corrosion resistance suitable for indoor and protected outdoor environments. The partial thread design allows for controlled clamp load in through-bolt and tapped-hole configurations. This item is sold in a minimum order quantity of 100 units per order.

Key Features

• 1/4-20 UNC thread for reliable engagement in standard tapped holes
• 3-inch length under head with partial threading for controlled clamping
• 3/16-inch hex socket drive for use with standard Allen keys or hex bit drivers
• Alloy steel construction meets ASTM A574 tensile strength requirements
• Black oxide finish provides corrosion and abrasion resistance in protected environments
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as an OEM-style and aftermarket replacement hex socket cap screw for standard 1/4-20 UNC tapped-hole applications in mechanical and industrial assemblies.

Installation Notes

Install with a 3/16-inch hex key or socket bit driver; ensure the tapped hole is clean and free of debris before threading. Apply appropriate thread locking compound or torque to specification per the assembly drawing requirements for the application. Power down or de-energize any equipment before accessing fastener locations in electrical or mechanical enclosures. Follow applicable ASME or employer safety standards for fastener installation and replacement.
