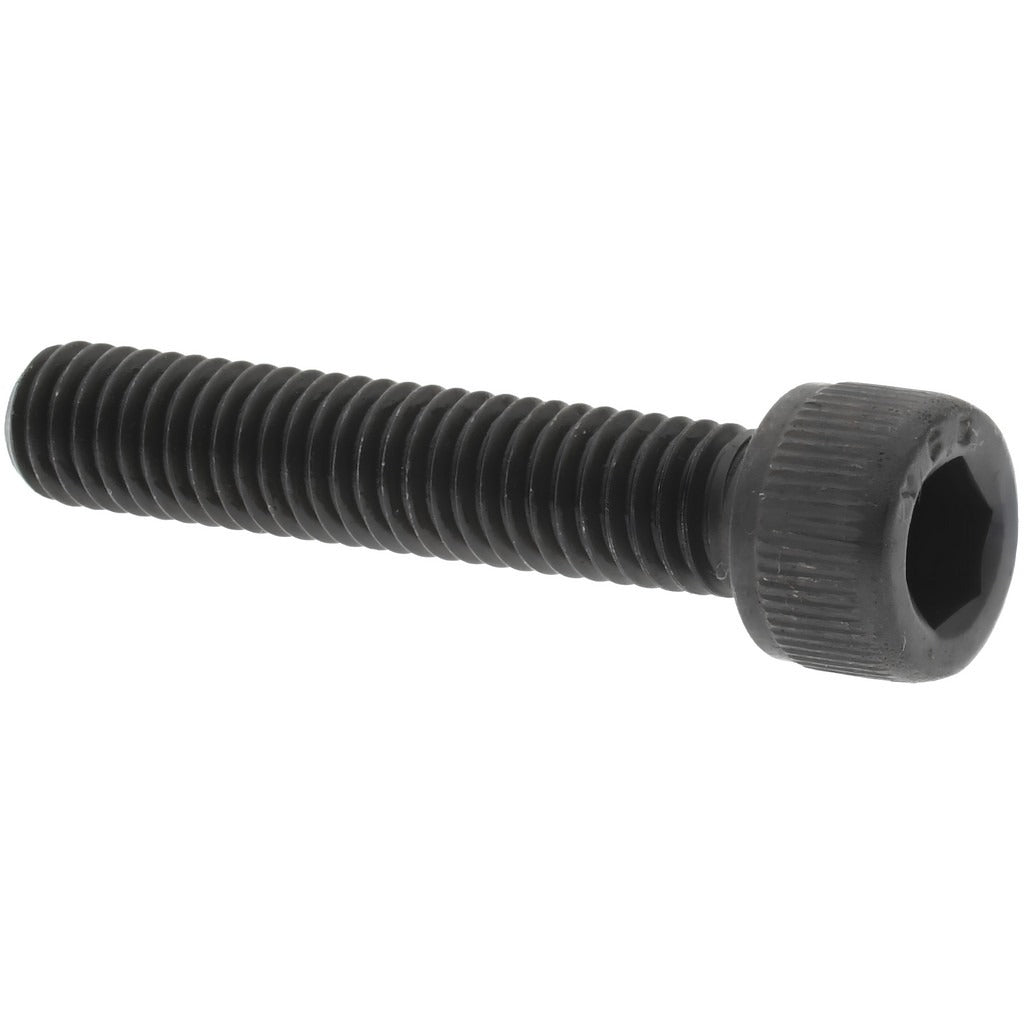

Value Collection 011131P Hex Socket Cap Screw 10-32 Unf

Product Description

The VALUE COLLECTION 011131P is a hex socket cap screw designed for secure, high-strength fastening in mechanical and industrial assemblies. Sized at 10-32 UNF with a 1-inch length under head and a 5/32-inch hex drive, this fastener is fully threaded along its shank. Constructed from alloy steel with a black oxide finish coating, it offers corrosion resistance and reduces light glare in applications where appearance matters. Manufactured to ASME/ANSI B18.3 and ASTM A574 standards, it is suited for demanding load-bearing and close-tolerance applications. Typical installers include maintenance technicians, millwrights, and mechanical assemblers working with precision machinery or structural components.

This screw is used in residential and commercial maintenance, manufacturing equipment assembly, and general industrial fastening applications. The 10-32 UNF thread pitch is common in precision instruments, panel assemblies, and light structural work where fine threading is required. The black oxide finish makes it a suitable choice for applications where a low-reflectance or corrosion-inhibited surface is preferred. It is installed using a standard 5/32-inch hex key or Allen wrench in a pre-tapped or threaded insert hole.

Key Features

• 10-32 UNF thread size for fine-pitch, high-strength engagement
• 1-inch length under head provides consistent clamping depth
• 5/32-inch hex drive for use with standard Allen or hex key tools
• Fully threaded shank maximizes thread engagement across the full length
• Alloy steel construction meets ASTM A574 high-strength fastener requirements
• Black oxide finish coating provides mild corrosion resistance and low reflectance

Compatibility

Designed as a standard 10-32 UNF hex socket cap screw per ASME/ANSI B18.3, compatible with any pre-tapped or threaded insert hole meeting the 10-32 UNF thread specification.

Installation Notes

Install using a calibrated 5/32-inch hex key or T-handle Allen wrench to ensure proper seating and avoid cam-out. Verify that the receiving hole is correctly tapped to 10-32 UNF before fastening. Do not over-torque, as alloy steel fine-thread fasteners are susceptible to thread stripping in soft base materials. Follow applicable ASME or facility maintenance standards for fastener torque procedures.
