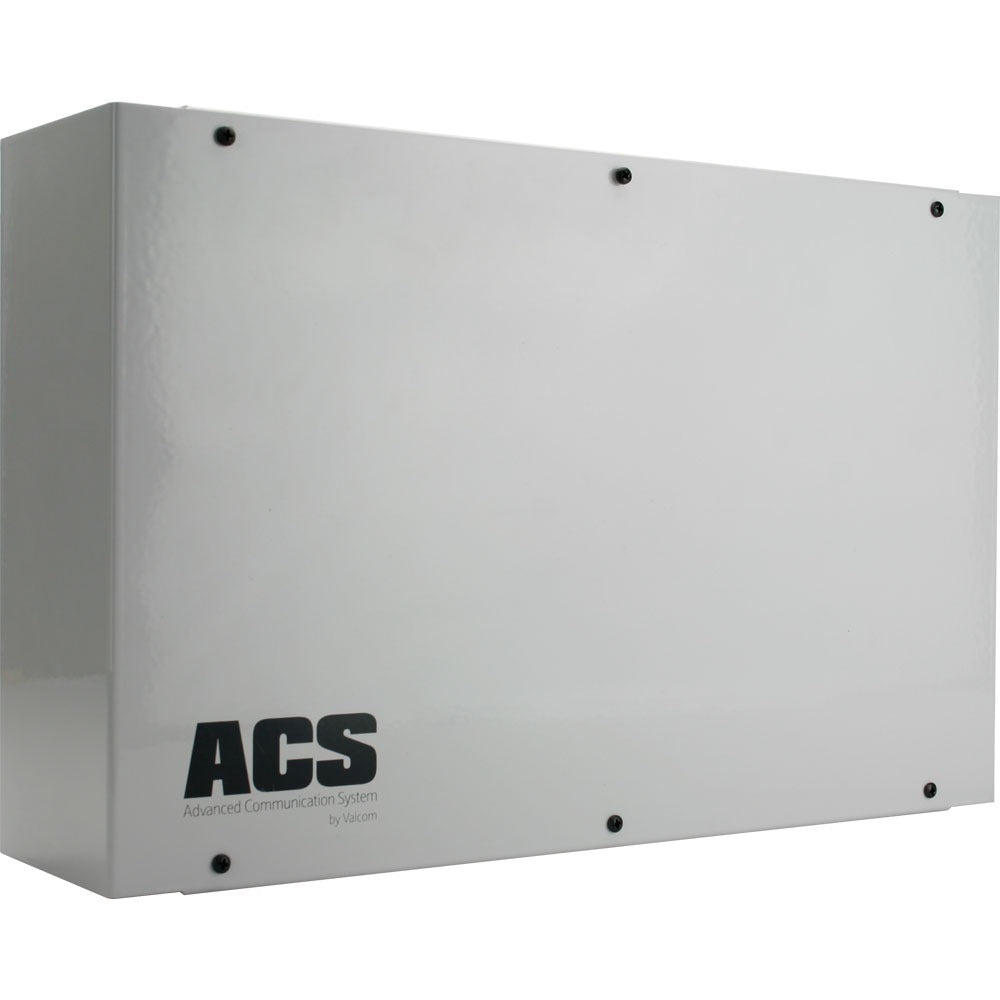

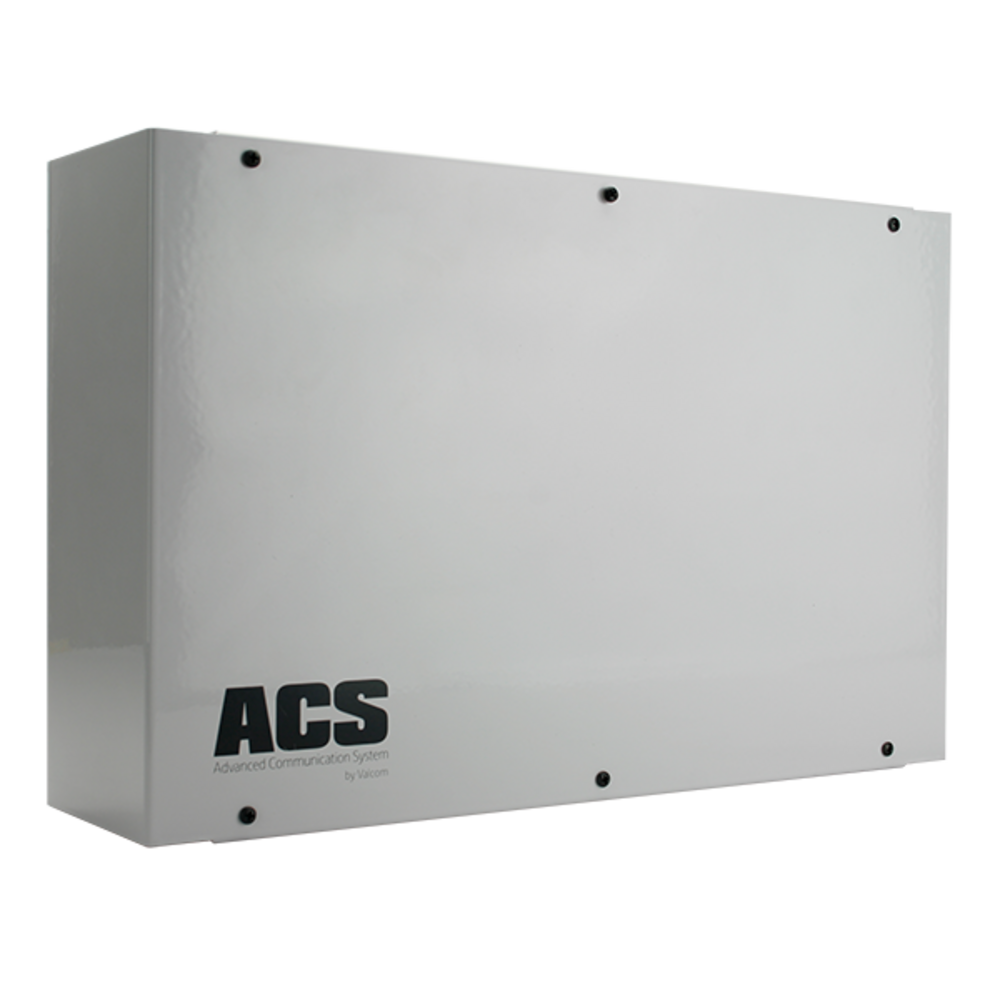

Valcom V-ACS25 Advanced Communication System 25V (24-Zone)

Product Description

The Valcom V-ACS25 is a wall-mount advanced communication system and 25-volt paging headend that provides 24 speaker circuits and talkback stations for retrofitting or installing multi-zone paging systems. It supports existing or new speakers, offers dual FXS talk paths and auxiliary audio inputs, and is configurable via Windows-based programming software. The unit includes up to one hour of custom WAV storage, flexible audio groups, programmable I/O, clock synchronization, and SIP accessibility with additional equipment.

• 25 volt wall-mount paging headend with 24 speaker circuits and talkback stations; expandable to 48 and 72 zones
• Dual FXS ports, dual auxiliary audio inputs, SIP accessible with additional equipment, and Windows-based programming/administrative software
• Up to 1 hour custom WAV file storage, 24 flexible/non-blocking audio groups, 2 music groups, 3 programmable switch inputs, 4 programmable relays, and 8 bell schedules with NTP clock correction

Product Highlights

24-zone 25V paging/intercom headend; dual FXS and auxiliary audio; up to 1 hour WAV storage; programmable I/O and clock synchronization

Product Information

Standard Information

• Brand: VALCOM
• Manufacturer Part Number: V-ACS25
• Country of Origin: United States
