Usd Products 203-3132-24 Dryer Gas Connector 24in

Product Description

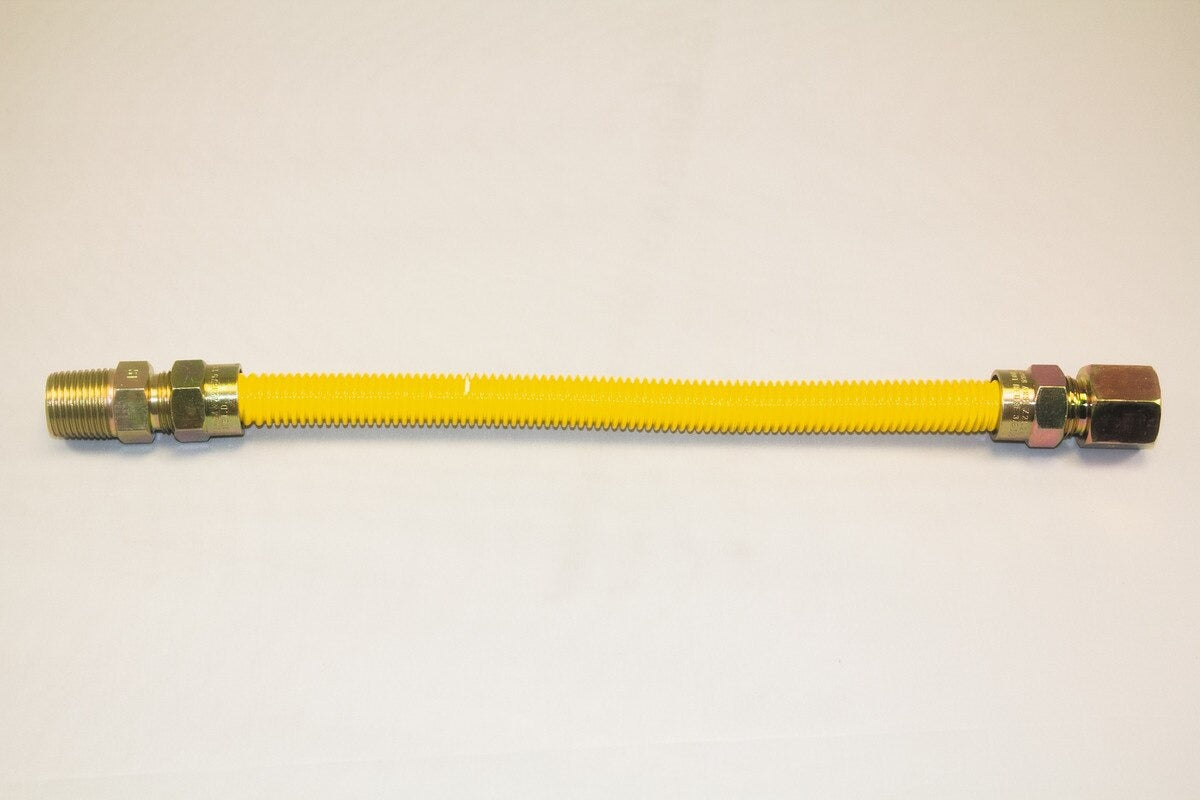

The USD PRODUCTS 203-3132-24 is a dryer gas connector hose from the 203 Series, designed to supply natural gas or liquid propane from a shutoff valve to a residential gas dryer. The hose measures 24 inches in length with 1/2-inch MIP (male iron pipe) inlet and 1/2-inch FIP (female iron pipe) outlet connections. The outer diameter is 1/2 inch with a 3/8-inch inner diameter. A yellow coating on the exterior provides corrosion resistance and helps identify this as a gas line connector. This type of connector is installed by licensed plumbers or gas fitters during appliance hookup or service replacement.

This gas connector hose is intended for residential dryer installations where a flexible connection is needed between a rigid gas supply line and the appliance inlet. The 24-inch length provides enough slack to accommodate typical behind-dryer clearances without excessive bending. The MIP-to-FIP configuration is a common arrangement for dryer gas connections in both new construction and retrofit scenarios.

Key Features

• 24-inch flexible hose length suitable for standard residential dryer installations
• 1/2-inch MIP inlet by 1/2-inch FIP outlet connection configuration
• 1/2-inch OD with 3/8-inch ID construction
• Yellow exterior coating for corrosion resistance and gas-line identification
• 203 Series connector designed for appliance gas supply applications

Compatibility

Designed as an OEM-style replacement flexible gas connector for residential gas dryer installations using 1/2-inch MIP and 1/2-inch FIP threaded gas supply connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the nearest upstream valve before disconnecting or connecting any gas line components. Apply thread sealant rated for gas service to all threaded connections and verify all joints for leaks using an approved leak detection solution before returning the appliance to service. Never kink, stretch, or route this connector through walls, floors, or ceilings.
