Us Seal PS-437V Pump Seal (0.750 in) USSPS437V

Product Description

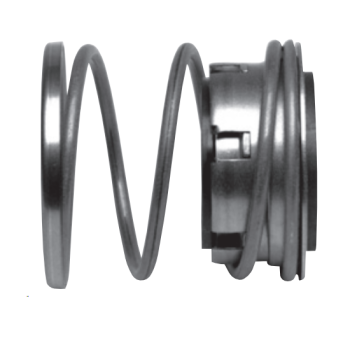

US Seal PS-437V is a mechanical pump seal for 0.750 in shafts in a Type D (equivalent to John Crane Type 2) configuration. It uses a cup-mounted ceramic mating ring with a carbon primary ring and Viton elastomers; metal parts are brass and the spring is stainless steel. The design includes self-adjusting elastomer bellows and a large single coil spring and is intended for rotary shaft equipment such as pumps, mixers, blenders, and compressors. Maximum rating: 400 F (204 C), up to 350 psi (24.1 Bar).

• Self-adjusting elastomer bellows compensate for shaft end play and primary face wear
• Large single coil stainless steel spring that resists clogging and fouling
• Cup-mounted ceramic mating ring with carbon primary ring and Viton secondary seals; brass metal parts

Product Highlights

Type D pump seal for 0.750 in shafts with ceramic cup-mounted mating ring, carbon vs. ceramic faces, Viton elastomers, stainless steel spring; rated to 400 F and 350 psi.

Product Information

Standard Information

• Brand: US SEAL
• Manufacturer Part Number: PS-437V

Technical Specifications

• Brand: US Seal
• Manufacturer Part Number: PS-437V
• Alternate Part Number: USSPS437V
• Seal Size: 0.750 in (3/4 in)
• Shaft Size: 0.750 in
• Seal Type: Type D (equivalent to John Crane Type 2)
• Rotary Head Type: US Seal Type D
• Seal Head Figure: D
• Rotary Head Outside Diameter: 1.437 in
• Rotary Head Operating Height: 0.875 in
• Mating Ring Design: Cup mounted (Figure 1)
• Stationary Seat Type: Cup mounted (US Seal Type 1)
• Stationary Seat Outside Diameter: 1.275 in
• Stationary Seat Thickness: 0.281 in
• Inside Diameter: 1.375 in
• Mating Ring Material: Ceramic
• Primary Ring Material: Carbon
• Seal Faces: Carbon vs. Ceramic
• Elastomers: Viton
• Metal Parts Material: Brass
• Spring Material: Stainless steel
• Spring Type: Large single coil spring
• Material/Seal Code: VCDJF
• Maximum Temperature: 400 F (204 C)
• Maximum Pressure: 350 psi (24.1 Bar)
