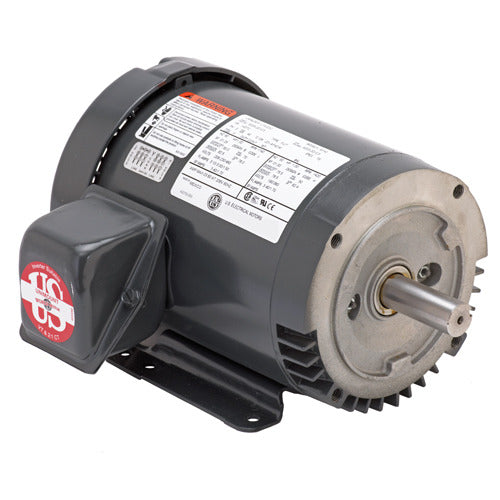

US-Nidec U34S3AC General Purpose Motor 3/4 HP 1200 RPM 208-230/460

Product Description

The US-Nidec U34S3AC is a general purpose motor with a power rating of three-fourths horsepower. This motor operates at 1200 RPM and is suitable for various industrial applications. It can be connected to voltages of 208-230/460 and features a TEFC enclosure for efficient performance.

• Applications include fans, blowers, compressors, and pumps.
• Has a robust rolled steel construction.
• Equipped with ball bearings for durability.

Product Highlights

This motor is designed for general industrial use and is ideal for direct connection to various equipment.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U34S3AC

Technical Specifications

• Power: 3/4 HP
• RPM: 1200
• Voltage: 208-230/460
• Frame: 56
• Amperage: 3.1-3.2/1.6
• Enclosure: TEFC
• Phase: Three Phase
• Diameter: 6.5 inches
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footed
