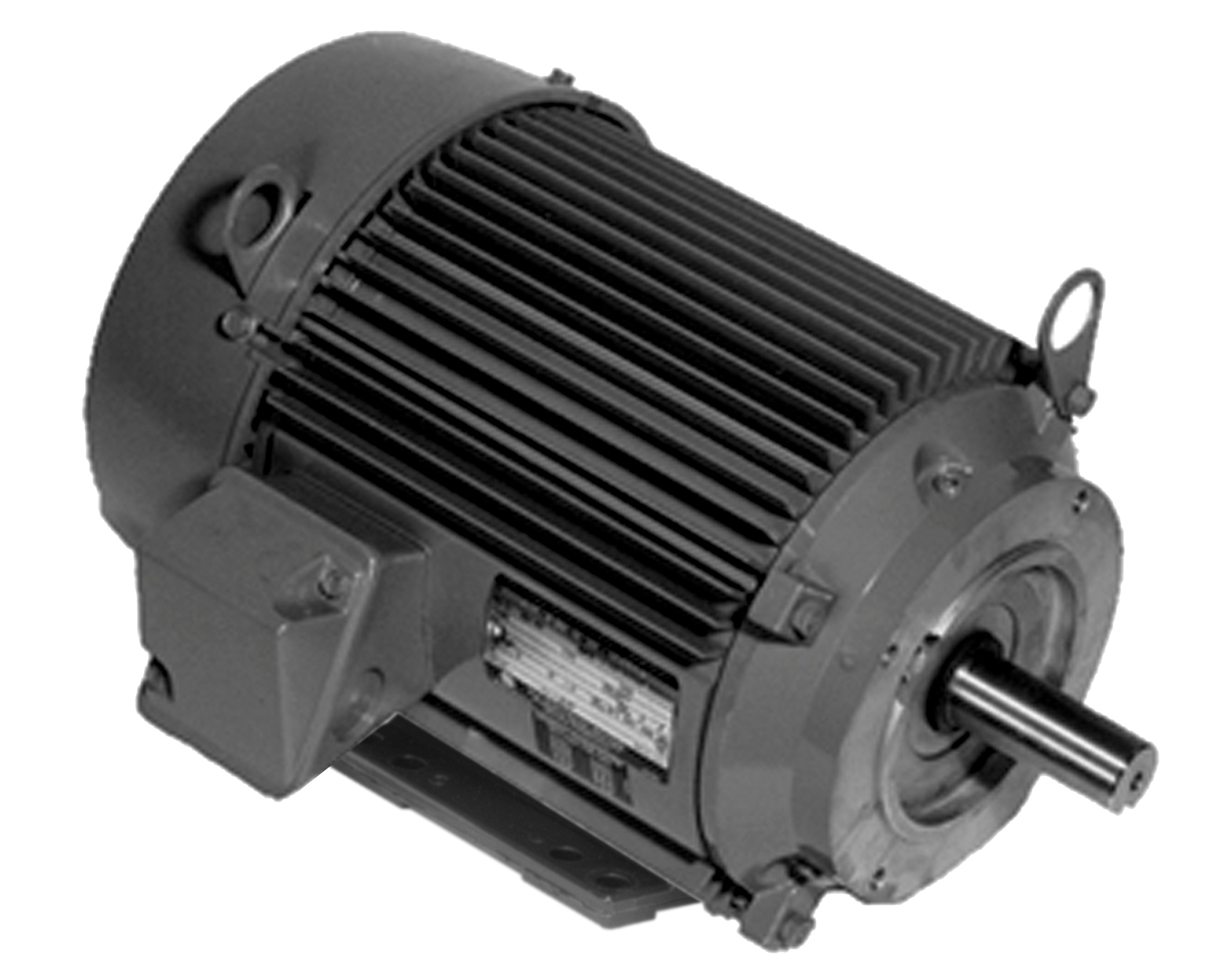

US-Nidec U32P2DC General Purpose Motor 1 1/2 HP 1800 RPM 208-230/460

Product Description

The US-Nidec U32P2DC is a general purpose motor designed for a range of industrial applications. This motor delivers one and one-half horsepower and operates at eighteen hundred revolutions per minute. It is suitable for use in a variety of settings including fans, blowers, compressors, pumps, and direct connected equipment.

• Powerful 1.5 HP output
• Three-phase operation
• TEFC enclosure for protection

Product Highlights

The U32P2DC motor offers reliability and efficiency in demanding environments.

Product Information

Standard Information

• Voltage: 208-230/460
• Phase: Three

Technical Specifications

• Amperage: 4.5-4.3/2.1
• Frame Size: 145TC
• Enclosure Type: TEFC
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footed
• Efficiency: 86.50%
