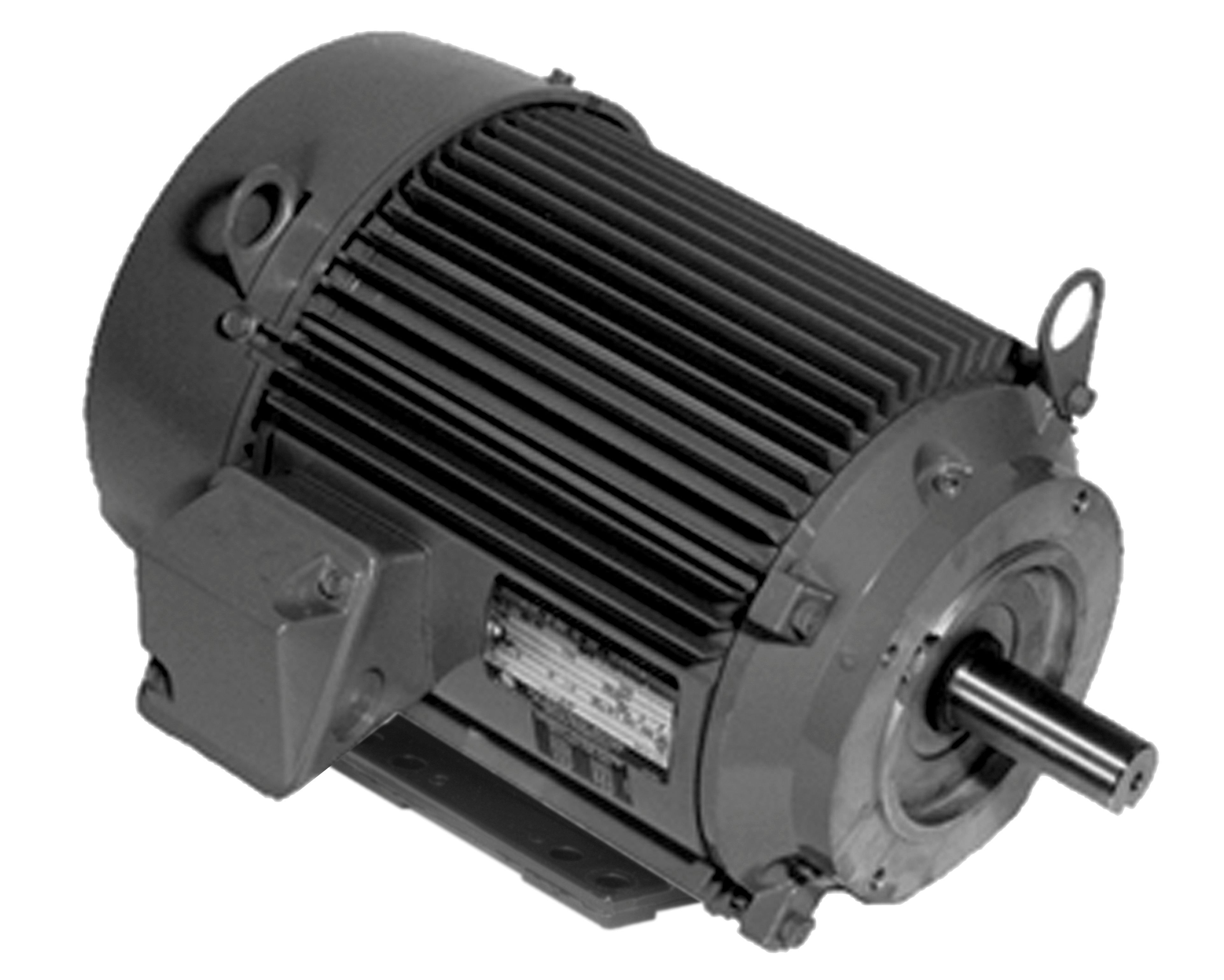

US-Nidec U14S3AC General Purpose Motor 1/4 HP 1200 RPM 208-230/460

Product Description

The US-Nidec U14S3AC is a general purpose motor designed for a variety of applications. This motor has a power rating of one-quarter horsepower and operates at twelve hundred RPM. It is suitable for three-phase electrical systems, providing reliable performance for industrial equipment such as fans, blowers, and pumps.

• Voltage: 208-230/460
• TEFC enclosure for durability
• Mounting options: C-Face / Footed

Product Highlights

This motor is built with rolled steel for strength and features ball bearings for smooth operation.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U14S3AC

Technical Specifications

• Power: 1/4 HP
• RPM: 1200
• Voltage: 208-230/460
• Frame Size: 56
• Amperage: 1.1-1.2/0.6
• Enclosure Type: TEFC
• Phase: Three Phase
• Shaft Type: Single
• Diameter: 6.5 inches
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3
• Mounting Type: C-Face / Footed
