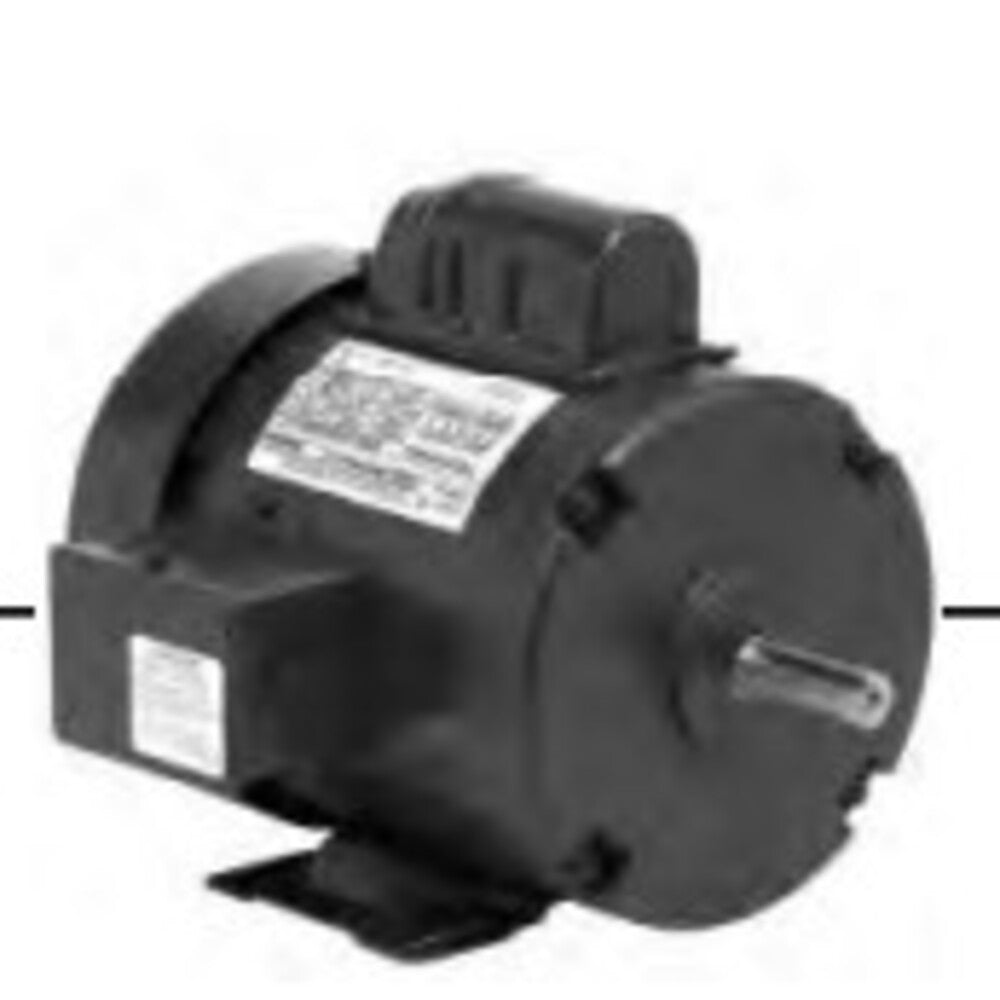

US-Nidec T34CM1J General Purpose Motor 3/4 HP 3600 RPM TEFC

Product Description

The US-Nidec T34CM1J is a general-purpose motor designed for various applications. It has a power rating of three-fourth horsepower and operates at a speed of three thousand six hundred RPM. This motor features a Totally Enclosed Fan-Cooled (TEFC) design, making it suitable for environments where dust and moisture are present.

• Electrical Type: Cap Start
• Single-phase operation with a voltage range of one hundred fifteen to two hundred thirty volts
• Rigid base mounting for stability

Product Highlights

This motor is ideal for use in HVAC systems, pumps, and other industrial applications. It is built with a rolled steel frame, providing durability and strength in demanding environments.

Product Information

Standard Information

• Frame Size: 56
• Diameter: 6.5 inches

Technical Specifications

• HP: 3/4
• RPM: 3600
• Enclosure Type: TEFC
• Phase: Single
• Voltage: 115/208-230
• Amperage: 10.4/5.3-5.2
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
