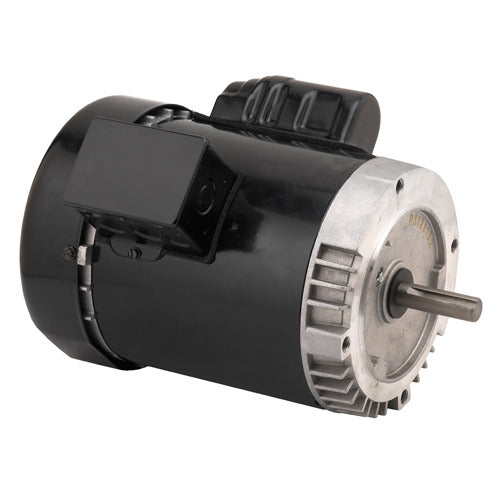

US-Nidec T1CM2JCR General Purpose Motor 1 HP 56 Frames

Product Description

The US-Nidec T1CM2JCR is a versatile general-purpose motor designed for various applications. This motor features a one horsepower output and operates with a voltage of one hundred fifteen or two hundred eight to two hundred thirty volts. The motor has a frame size of fifty-six, making it suitable for standard industrial setups.

• Electrical Type: Cap Start
• Single phase with two voltage options
• TEFC enclosure for protection

Product Highlights

This motor is ideal for use in HVAC and industrial applications, providing reliable performance while ensuring safety and efficiency.

Product Information

Standard Information

• Material: Rolled Steel
• Orientation: REV

Technical Specifications

• Amperage: 14.0/6.9-7.0
• Bearings Type: Ball / Ball
• Diameter: 6.5 inches
• Mounting Type: C-Face / Footless
• Overload Protector: Manual
• Efficiency: 70.00%
• Insulation Class: B
• Service Factor: 1.15
