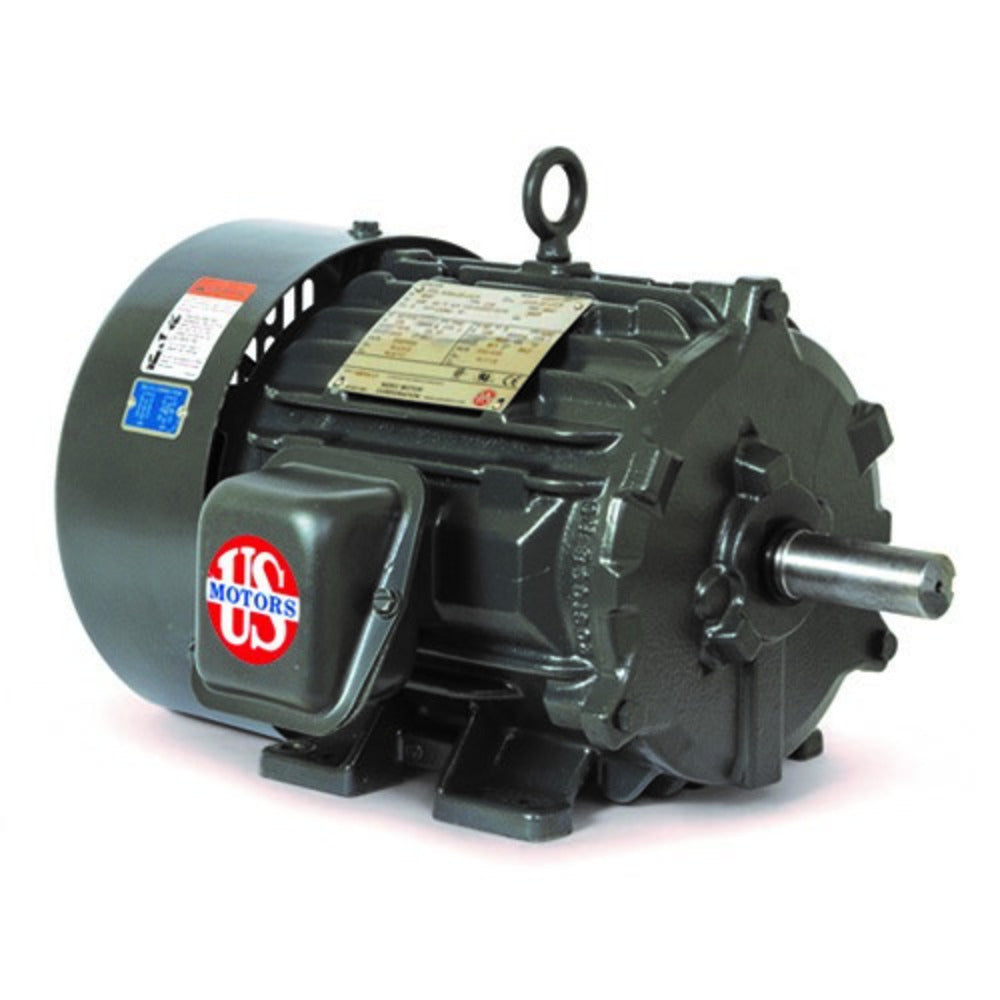

US-Nidec HD10P1E General Purpose Motor 10 HP 3600 RPM 230/460

Product Description

The US-Nidec HD10P1E is a general-purpose motor designed for demanding applications. It provides a power output of ten horsepower and operates at a speed of three thousand six hundred RPM. With a dual voltage of two hundred thirty or four hundred sixty, this motor is suitable for various environments.

• Powerful ten horsepower motor
• Three-phase electrical type for efficient operation
• Durable cast iron construction

Product Highlights

This motor is ideal for industrial settings such as pulp and paper plants, sawmills, and waste management facilities. It features a TEFC (Totally Enclosed Fan Cooled) enclosure that protects its internal components from harsh environments.

Product Information

Standard Information

• Enclosure Type: TEFC
• Power (HP): 10

Technical Specifications

• Voltage: 230/460
• Amperage: 23.5/11.8
• Frame Size: 215T
• Speed: 3600 RPM
• Phase: Three
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Mounting Type: Horizontal / Footed
