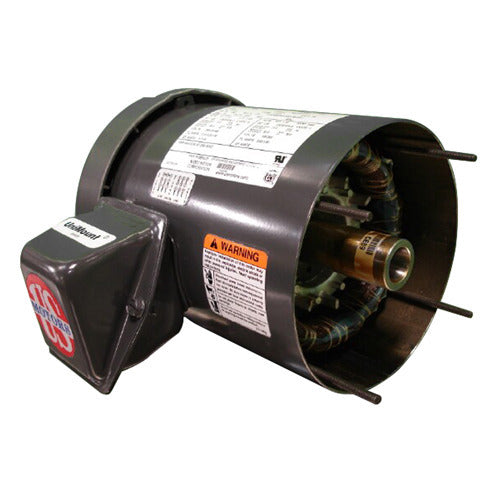

US-Nidec E188PE Gear Reducer Module Motor 2 HP 145T TEFC

Product Description

The US-Nidec E188PE Gear Reducer Module Motor is a three-phase motor designed for various industrial applications. With an output of two horsepower, this motor operates efficiently on a voltage of two hundred eight to two hundred thirty volts. It comes with a totally enclosed fan-cooled (TEFC) enclosure that protects it from dust and moisture. The motor frame is of size 145T, providing a sturdy and reliable option for heavy-duty tasks.

• Three phase electrical type
• Two horsepower output
• Size 145T with TEFC enclosure

Product Highlights

This gear reducer module motor is built for durability and performance, making it suitable for driving pumps, fans, and other equipment in commercial and industrial environments.

Product Information

Standard Information

• Frame Size: 145T
• Enclosure Type: TEFC

Technical Specifications

• Horsepower: 2
• Voltage: 208/230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3
• Mounting Type: Extended Studs
• Shaft Type: Single
