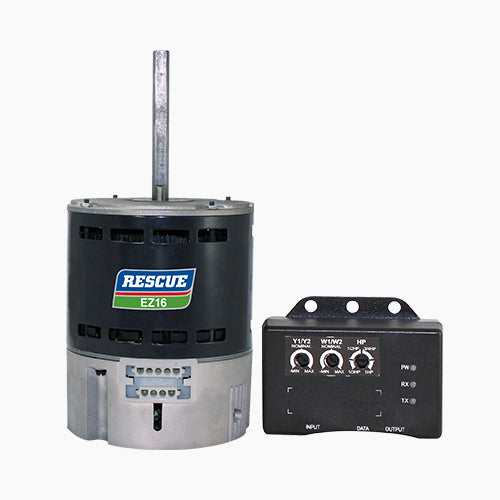

Us Motors M055AZA3661015B Rescue Ez16 Ecm Direct Drive Blower

Product Description

The US MOTORS M055AZA3661015B Rescue Ez16 ECM direct drive blower is a 16-Pin Replacement for ECM 2.0 2.3 EON. It features a field-tunable EZ interface, allowing adjustable airflow at the point of installation. This motor operates at 115/208-230V and 60&50 Hz, with a reversible rotation and electronic thermal protection.

• 16-Pin Replacement for ECM 2.0 2.3 EON
• Field Tunable EZ Interface
• Adjustable airflow at point of installation

Product Highlights

The US Motors Rescue Ez16 ECM blower motor offers adjustable airflow and is designed as a direct replacement with a field-tunable interface.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: M055AZA3661015B

Technical Specifications

• Model_Number: M055AZA3661015B
• PRODUCT NAME: MOTOR
• PHASETYPE: 1_BRUSHLESS PERMANENT MAGNET
• MOTOR ENCLOSURE: OPAO
• HORSEPOWER: 1/2 / 1/3 HP
• POLES: 10
• NUMBER SPEEDS: 1
• RPM: 1075 / VAR SPD
• HERTZ: 60&50
• VOLTS PRIMARY: 115/208-230 V
• FRME: 48
• SHAFT CODE: Y
• STACK: 1.125
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: 6201
• SHAFT END BEARING: 6201
• AMBIENT: 40
• ROTATION: REVERSIBLE
• THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
• INSULATION CLASS: B
• FULL LOAD AMPS PRIMARY: 6.4/4.0-3.8&6.4/4.0-3.8
• Brand: US Motors
