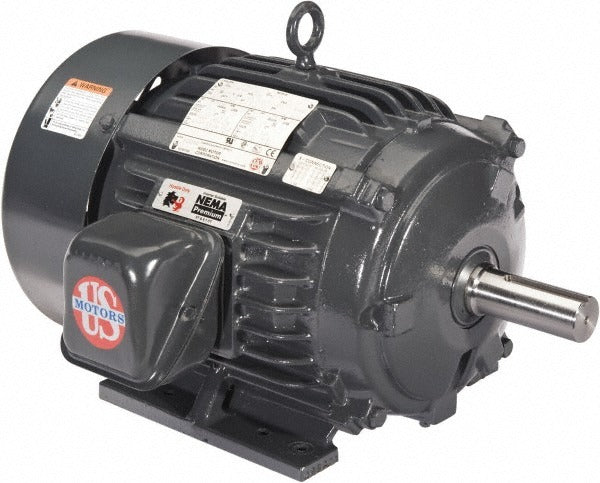

Us Motors H2P1D 2 Hp Three Phase Tefc Ac Motor

Product Description

The US MOTORS H2P1D is a two-horsepower, three-phase premium efficient AC motor housed in a TEFC (Totally Enclosed Fan-Cooled) cast iron frame. Rated for multi-voltage operation at 208 to 230 volts, 460 volts, 190 volts, and 380 volts, it supports both 60 Hz and 50 Hz systems, making it suitable for domestic and international equipment. The motor runs at 3505 RPM at 60 Hz and 2865 RPM at 50 Hz. Full load amperage is 5.4 to 4.9 amps at 208 to 230 volts and 2.4 amps at 460 volts. Insulation is Class F. The horizontal-footed mount sits in a 145 frame size. Licensed electricians and mechanical contractors typically handle installation on commercial or industrial drive equipment.

The H2P1D is designed for general equipment applications and harsh environment service. Its TEFC enclosure seals the motor interior from dust, moisture, and contaminants, making it appropriate for outdoor installations, washdown-adjacent environments, pump skids, conveyor drives, compressor loads, and similar duty cycles where open-drip-proof motors are not suitable. The horizontal-footed mount and standard 145 frame dimensions allow direct substitution on most equipment designed around NEMA frame specifications. Both 60 Hz and 50 Hz compatibility extend its usability to export equipment and facilities operating on non-standard supply frequencies.

Key Features

• 2 HP output in a NEMA 145 cast iron TEFC frame
• Multi-voltage rated: 208 to 230 volts, 460 volts, 190 volts, 380 volts
• Dual frequency: 60 Hz at 3505 RPM and 50 Hz at 2865 RPM
• Double shielded ball bearings for extended service life in contaminated environments
• Class F insulation for elevated temperature tolerance
• Horizontal-footed mount for direct bolt-down installation on standard drive equipment
• Rated for general equipment and harsh environment applications

Compatibility

Designed as an OEM-style replacement or upgrade motor for three-phase equipment requiring a NEMA 145 frame, horizontal-footed, TEFC motor rated at 2 HP in general equipment and harsh environment service classifications.

Installation Notes

Installation should be performed by a licensed electrician or qualified mechanical contractor in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power to the driven equipment before removing the existing motor or making any wiring connections. Verify supply voltage and phase rotation match the motor nameplate before energizing. Ensure the mounting base is level and fasteners are secured before connecting the load coupling or drive belt.
