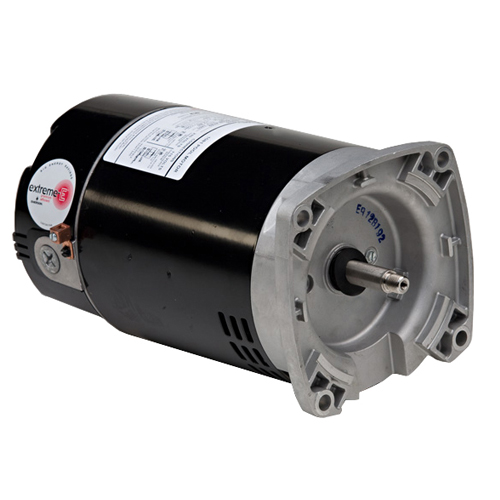

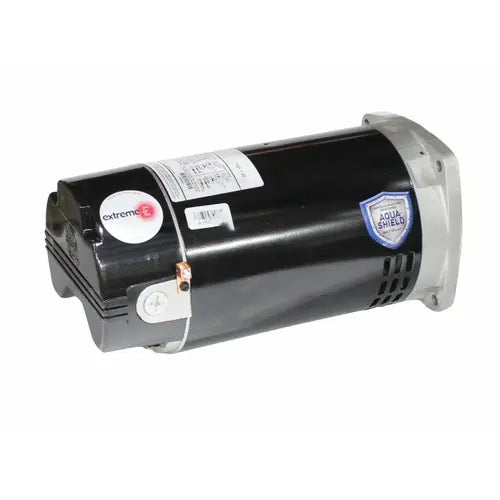

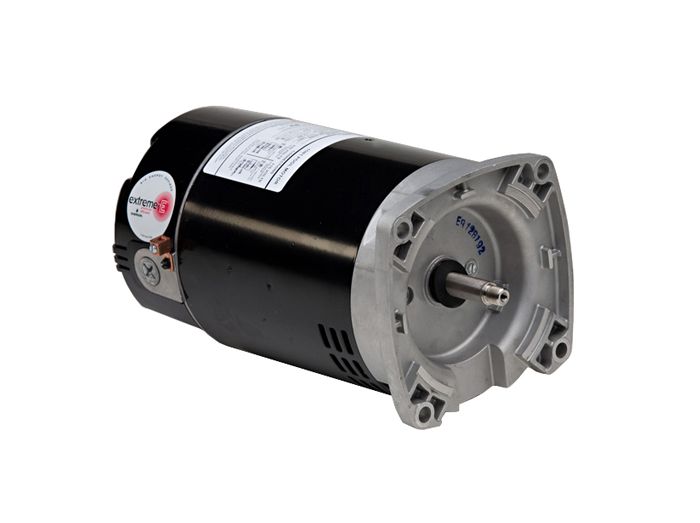

Us Motors ET3230 Et3230 Electric Motor 3 HP

Product Description

The US MOTORS ET3230 electric motor is designed for pool and spa applications. This 3 HP motor features a square flange mount and operates at 208-230V. It is built with a rolled steel material and includes automatic overload protection. The motor is a Hayward Tristar replacement unit.

• Square flange mounting
• Automatic overload protection
• Hayward Tristar replacement

Product Highlights

This US MOTORS electric motor is ideal for pool and spa applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: ET3230

Technical Specifications

• MPN: ET3230
• Brand: US MOTORS
• Electrical Type: Cap Start
• HP: 3
• Frame: 56Y
• Diameter: 6.5"
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230
• Rotation: CCW Drive End
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6304
• Mounting: Square Flange
• Amperage: 16.0-14.8
• Shaft Type: Single
• SF: 1.20
• RPM: 3450
• Freq: 60 HZ
• Length Less Shaft: 13.74
• Category: T
• Kilowatts: 2.2
• Poles: 2
• Number of Speeds: 1
• Hertz: 60 HZ
• Shaft Code: Y
• Stator Diameter: 6.3
• Stack: 3.625
• Motor Type: FHP
• Electrical Phase: 1 Ph
• Horsepower: 3 hp
• Maximum Voltage: 230V
• Warranty: 1 Yr
• Wattage: 2200W
• Speed: 3,450 RPM
• NEMA Frame: 56Y
• AC Voltage: 208-230 VAC
• Nominal Voltage: 208 VAC, 240 VAC
• Composition: Rolled Steel
• Overload Protection: Automatic
• Amps: 16.0-14.8
• Shaft: 1/2" diameter threaded stainless steel
• Service Factor: 1.2
• Insulation: Class B
• Mount: Square Flange Mount
• Bearings: Ball Bearings
• Application: Swimming pool pump motor for replacing Hayward Tristar units
• Ambient Temperature: 60 °C
• DE Bearing: 6203
• ODE Bearing: 6304
• Phase Type: Capacitor Start - Capacitor Run
• Input Current: AC
• Mounting Type: Footless/Flange
• THP: 3.60
