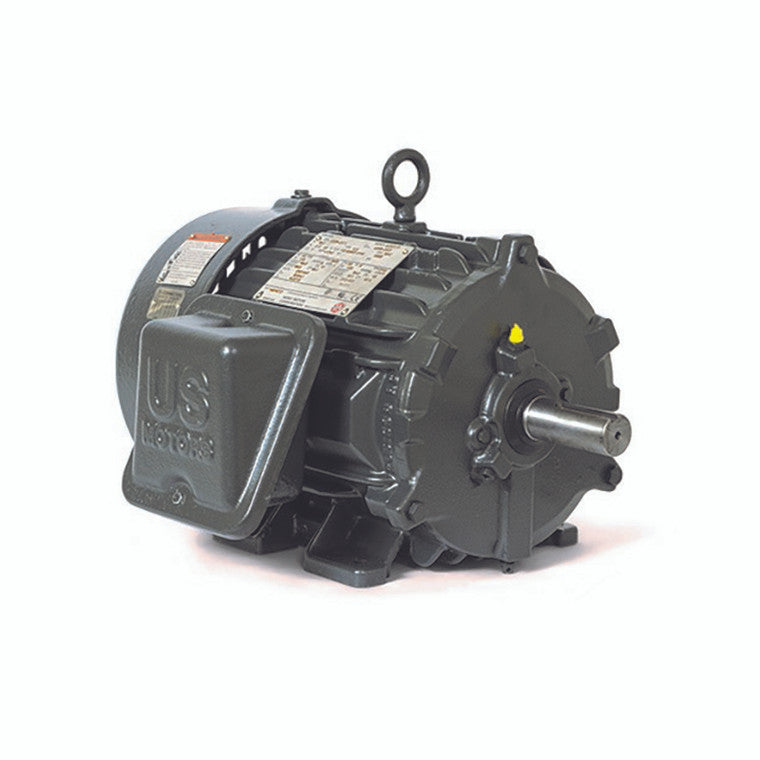

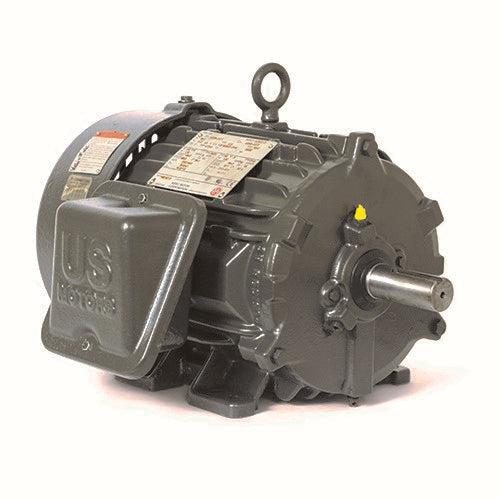

US Motors CD10P2E AC Motor 10 HP

Product Description

The US Motors CD10P2E is a three-phase AC motor designed for use in environments that require corrosion resistance. This motor operates on voltage levels of two hundred thirty and four hundred sixty volts and is suitable for fifty or sixty hertz power systems.

• Designed for chemically corrosive environments.
• Features a Totally Enclosed Fan Cooled (TEFC) enclosure.
• Wiring diagram located on the motor name plate.

Product Highlights

The CD10P2E motor has a rigid base and can be field converted to F2 mounting. It meets the requirements for Class 1, Division 2, Groups A, B, C, and D hazardous locations.

Product Information

Standard Information

• Brand: US Motors
• Model: CD10P2E

Technical Specifications

• Horsepower: 10 HP
• Speed: 1800 RPM
• Voltage: 230/460V
• Frequency: 50/60 Hz
• Frame Size: 215T
• Enclosure Type: TEFC
• Phase: Three Phase
• Mounting Type: Foot Mount
• Duty Cycle: Continuous
• Service Factor: 1.15
• Insulation Class: F
• Construction: Cast Iron
• Weight: 188.000 lb
• Motor Type: Severe Duty
• Rated Supply Voltage: 230/460 & 200/400 V
• Motor Design Class: B
• Full Load Amps: 25.7/12.8 A
• Shaft Diameter: 1 3/8
• Shaft Length: 3 3/8
• Overload Protection: None
• Bearings: Greaseable Ball Bearings
• Reversible: Reversible
• Efficiency: 91.7%
