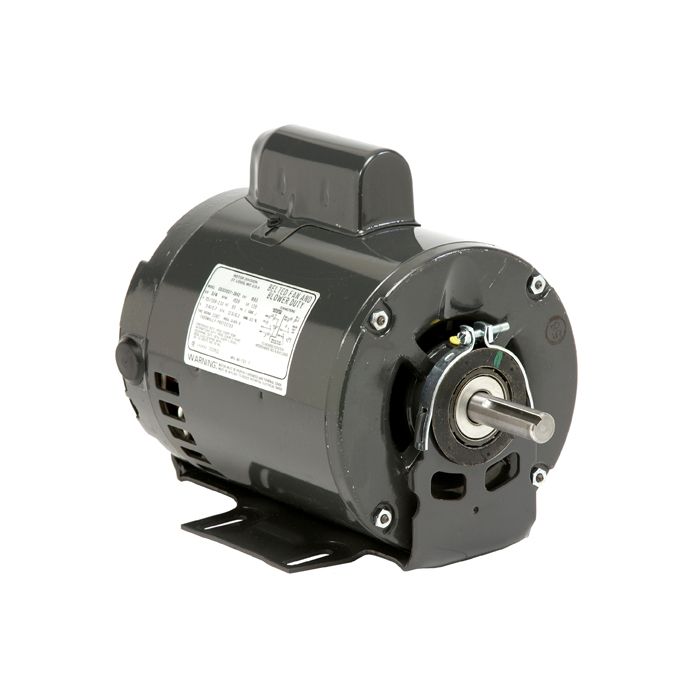

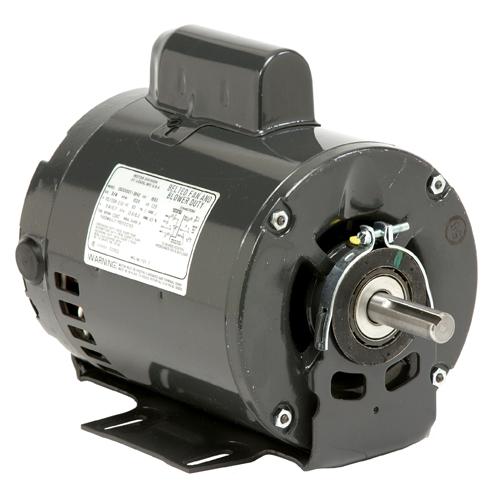

Us Motors 3700 Capacitor Start General Purpose Motor 1/6 HP

Product Description

The US MOTORS 3700 Capacitor Start General Purpose Motor is designed for various applications requiring a single-phase electric motor. This motor features a NEMA 48 frame, open dripproof enclosure, and reversible rotation. It operates at 115V and 60 Hz, with a rated current of 4.5 amps and a speed of 850 RPM.

• NEMA 48 Frame
• Reversible rotation
• Open Dripproof enclosure

Product Highlights

This general-purpose motor is suitable for applications needing a reliable single-phase electric motor with a capacitor start design.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 3700
• Country of Origin: US

Technical Specifications

• Catalog#: 3700
• Manufacturer: U.S. Motors
• Amps: 4.5
• Bearings: Ball
• Enclosure Type: ODP (Open Dripproof)
• Frame: 48
• HP: 1/6
• Hz: 60
• Insulation Class: B
• Manufacturer Model #: C055TBK4336012B
• Maximum Ambient Temperature: 40° C
• Mounting: Resilient Base
• Number of Speeds: 1
• Phase: 1
• Product Type: Capacitor Start
• Rotation: Reversible
• RPM: 850
• Service Factor: 1.35
• Volts: 115
• Manufacturer Part Number: 3700
• Description: Motor, 1/6 HP, 900 RPM, 48
• Type: Capacitor Run, Capacitor Start, General Purpose
• Horsepower: 1/6 hp
• Kilowatts: 0.1 kW
• Number of Poles: 8
• Frequency: 60 Hz
• NEMA Frame: 48
• AC Voltage: 115 VAC
• Nominal Voltage: 120 VAC
• Enclosure: Open Drip Proof
• Current Rating: 4.5 A
• Composition: Rolled Steel
• Overload Protection: None
• Net Weight: 22.6 lbs
• Gross Weight: 22.6 lbs
• Model Number: C055TBK4336012B
• For Potable Water Use: No
• Fuel Type: Electric
• Engine/Motor Type: Open Drip Proof (ODP)
• Voltage: 115 Volt (Single-Phase)
• Rated Current: 4.5 Amps
• Poles: 8
• California Prop 65 Warning: N
• Country of Origin: MX
• Length: 14.000
• Width: 10.130
• Depth: 10.130
• Features: General Purpose Motor, Single Phase, Motor Design Capacitor-Start
• Power Source: N/A
• Motor Type: N/A
