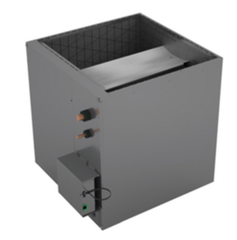

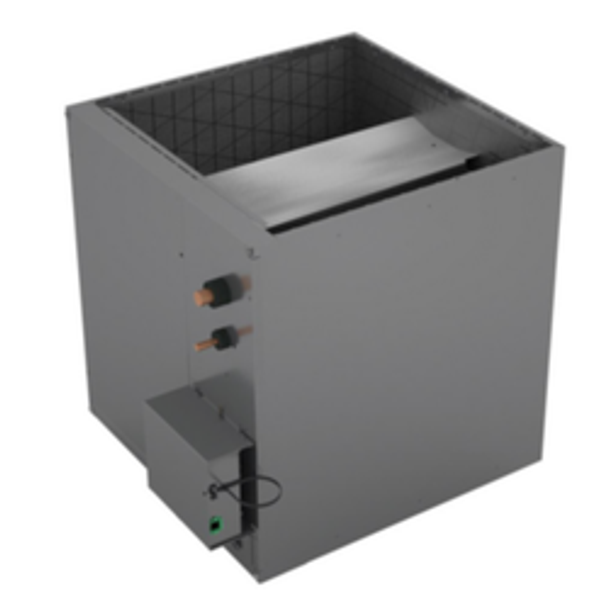

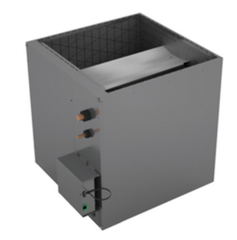

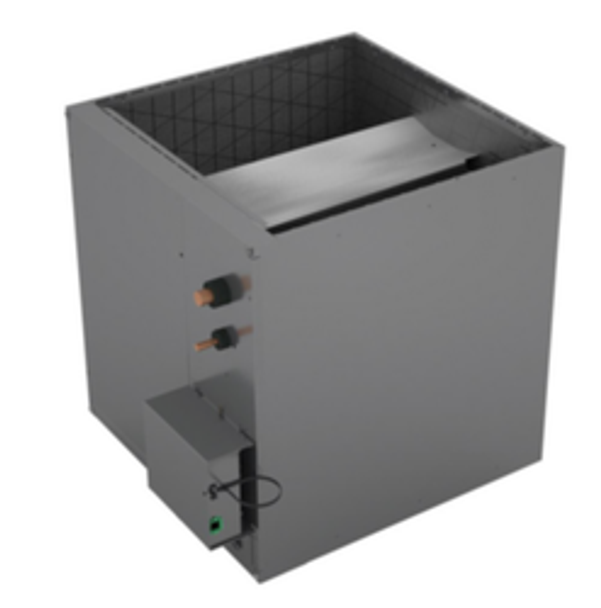

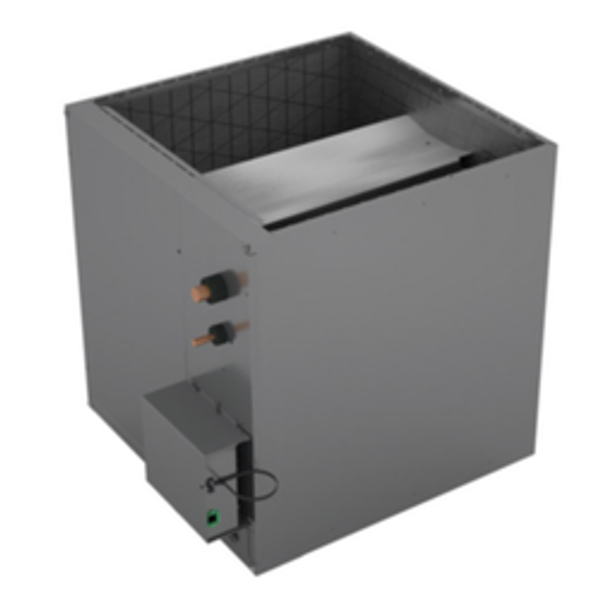

US Aluminum CAPEA3026C4 Evaporator Coil Cased Upflow Downflow

Product Description

The US Aluminum CAPEA3026C4 is a reliable cased evaporator coil suited for both upflow and downflow installations. This unit is constructed with an all-aluminum coil and is specifically optimized for R-410A refrigerant. It incorporates a factory-installed electronic expansion valve (EEV) for precise refrigerant control. The galvanized cabinet features a leather grain-embossed finish, along with foil-faced insulation to minimize condensation.

• All-aluminum evaporator coil
• Designed for upflow or downflow applications
• Equipped with an electronic expansion valve (EEV)

Product Highlights

The CAPEA3026C4 coil supports effective HVAC system performance and enhances energy efficiency across varied applications.

Product Information

Standard Information

• Brand: US Aluminum
• Country of Origin: USA

Technical Specifications

• Model: CAPEA3026C4
• Coil Type: Cased A
• Configuration: Upflow/Downflow
• Refrigerant Type: R-410A
• Tonnage: 2.5 ton
• Cooling Capacity: 30000 Btu/H
• SEER Rating: 17
• Expansion Device: Electronic Expansion Valve
• Cabinet Finish: Galvanized/Leather Grain Embossed/Painted
• Material: Aluminum
• Dimensions: 26 in H x 21 in W x 21 in D
• Plenum Opening Width: 20 in
• Liquid Connection: 3/8 in
• Suction Connection: 7/8 in
• Condensate Drain Outlet: 3/4 in
• Evaporator Coil Rows: 3
• Evaporator Fin Density: 17
• Installation Type: Ducted
• Unit Type: Indoor
• ETL Listed: Yes
