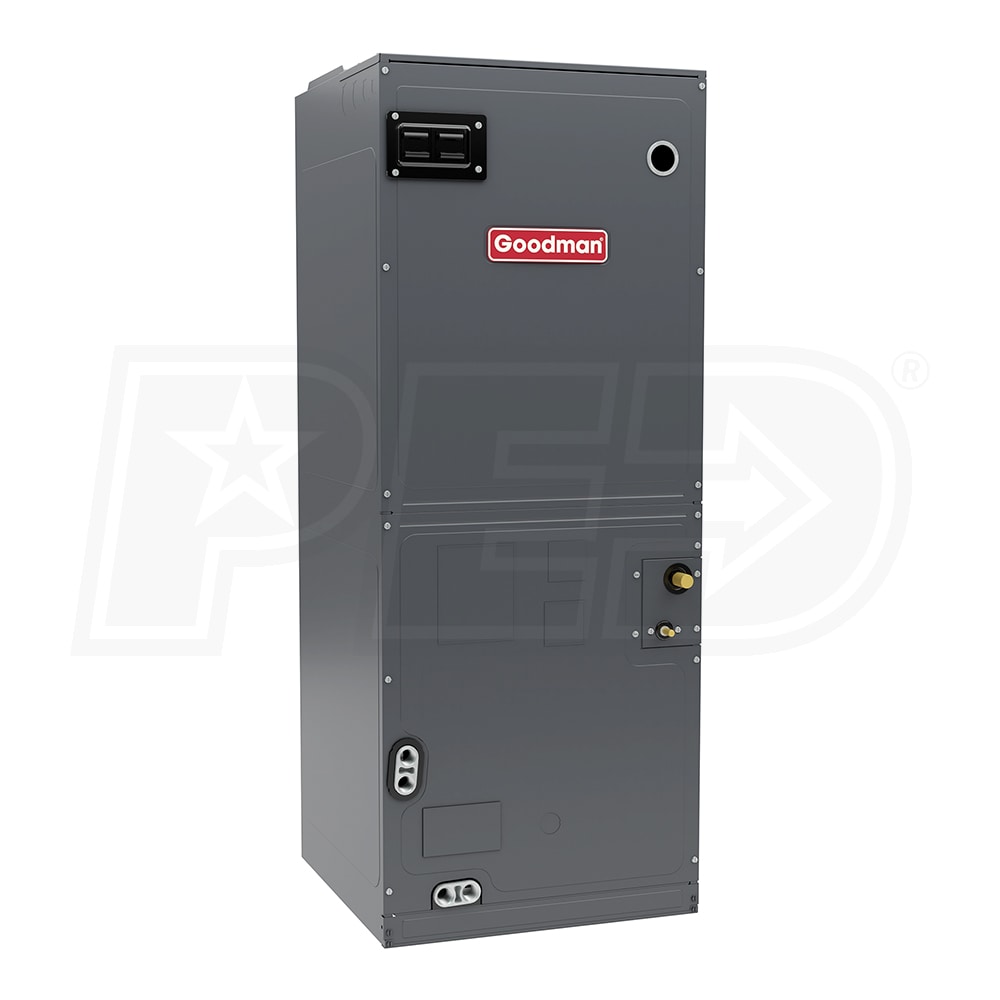

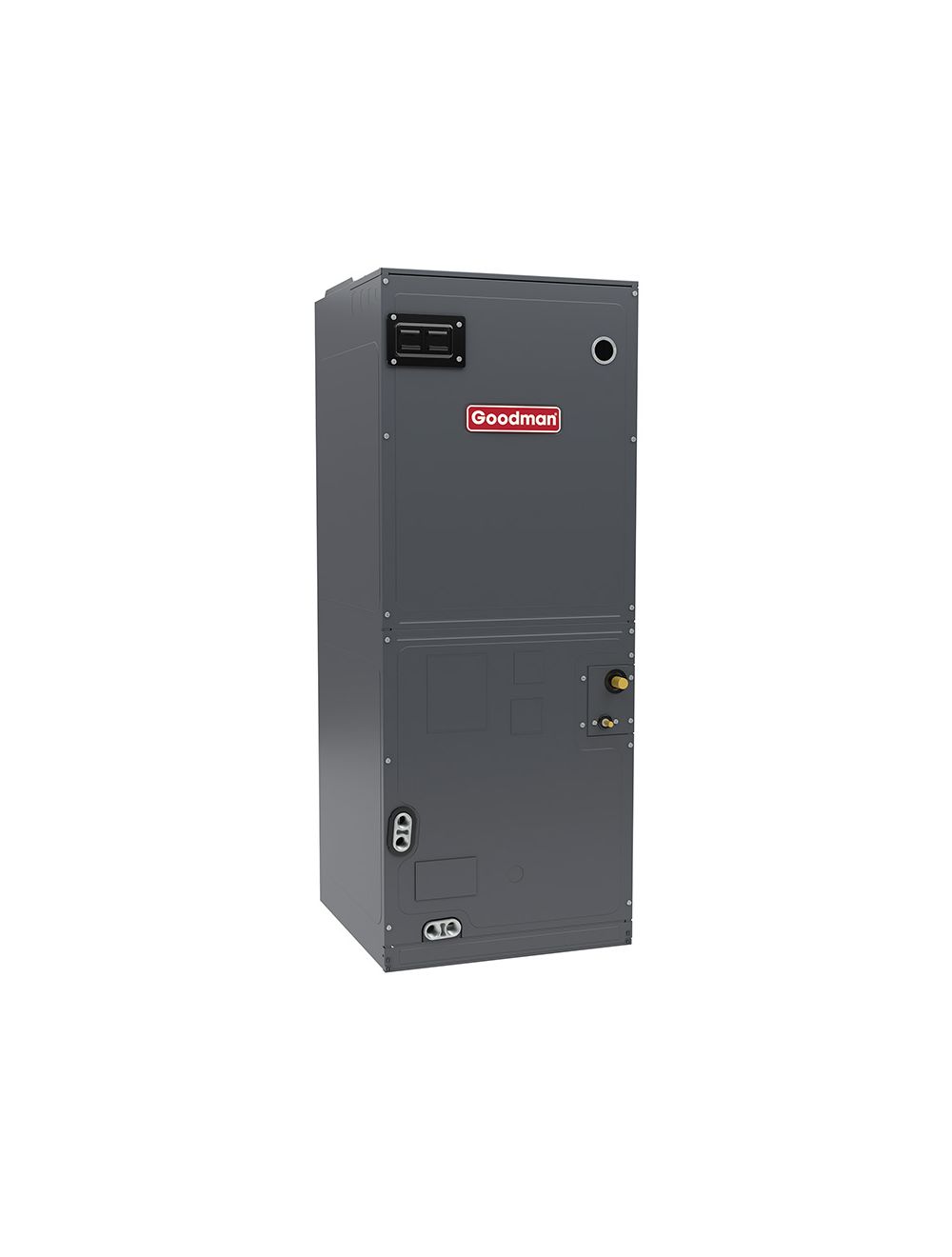

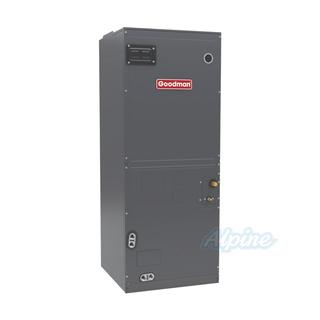

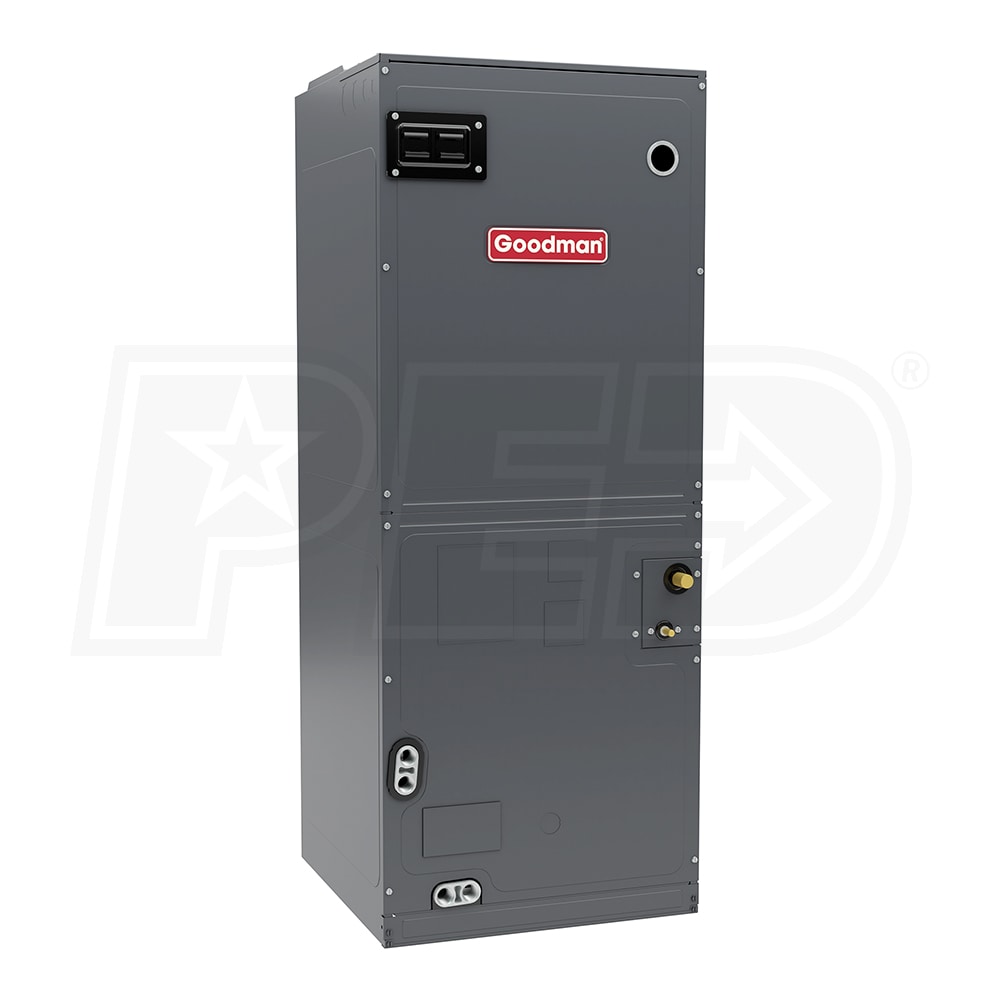

US Aluminum AMVT48CP1300 4.0 Ton Multi-Position Air Handler

Product Description

The US Aluminum AMVT48CP1300 is a four-ton air handler. This unit is built for efficient air distribution in residential HVAC systems. Its design includes an all-aluminum evaporator coil and a thermoplastic drain pan. The blower motor is a variable-speed ECM type, providing flexibility in airflow.

• Includes internal thermostatic expansion valve (TXV).
• Compatible with multi-stage heat pump and cooling applications.
• Supports upflow and downflow configurations for indoor installation.

Product Highlights

This air handler is effective in both heating and cooling applications. With a cooling capacity of forty-eight thousand BTU, it meets various residential requirements.

Product Information

Standard Information

• Brand: US Aluminum
• MPN: AMVT48CP1300

Technical Specifications

• Product Type: Air Handler
• Product Line: AMVT
• Mounting Type: Multi-Position
• Installation Location: Indoor
• Configuration: Upflow/Downflow
• Capacity: 4.0 Tons
• Cooling BTU: 48000 BTU
• Refrigerant Type: R-32
• TXV Installed: Yes
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1600 CFM
• Input Voltage: 208/230 Volts
• Frequency: 60 Hz
• Weight: 143 Pounds
• Product Width: 21 Inches
• Product Height: 58 Inches
• Product Depth: 21 Inches
• Electrical Heat: Available
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
