Uponor Wirsbo Q4761000 1 Propex 90 Elbow

Product Description

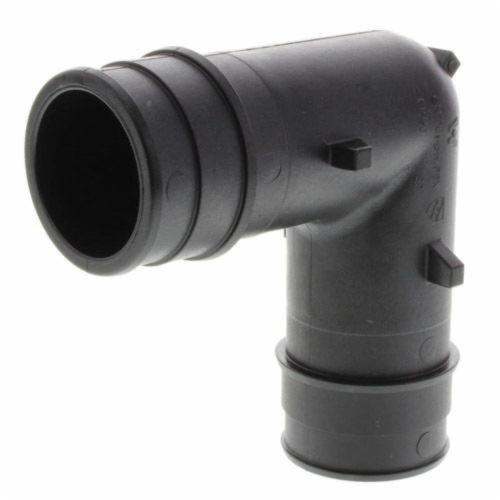

The UPONOR WIRSBO Q4761000 Propex EP Elbow makes 90-degree connections for Uponor PEX piping. It is designed for use in hot and cold domestic potable water systems, residential fire safety, and hydronic radiant heating and cooling systems. Each end features an Uponor ProPEX fitting for connections to Uponor AquaPEX or Wirsbo hePEX tubing.

• Constructed from 20% glass-reinforced UDEL polysulfone
• Compliant with ASTM F877 specification for PEX plastic hot and cold-water distribution systems
• Compliant with ASTM F1960 specification for cold expansion fittings with PEX reinforcing rings

Product Highlights

The Uponor Wirsbo Propex EP Elbow is ideal for creating 90-degree connections in PEX plumbing and radiant heating systems.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: Q4761000

Technical Specifications

• End Size 1: 1"
• End Size 2: 1"
• End Type 1: ProPEX
• End Type 2: ProPEX
• Operating Pressure 1: 160 psi
• Operating Temperature 1: 73 °F
• Operating Temperature 2: 180 °F
• Operating Temperature 3: 200 °F
• Material group: Engineered Polymer
• Cv: 11.9
• End Style: F1960 Cold Expansion PEX
• Fitting / Connector Type: 90 deg Elbow
• Material: Engineered Polymer
• Nominal Size: 1 IN
• Manufacturer: Uponor
• Manufacturer #: Q4761000
• Pressure Rating: 150 psi
• Temperature Rating: 210 deg F
• Domestic/Import: Import
• Connection Type: PEX
• Length: 2.606 IN
• Width: 2.606 IN
• Height: 1.48 IN
• Material Standard: ASTM F1960, ASTM F877
• Industry Standards: IMC, UPC, IBC, IRC, IPC, NPC of Canada, UMC, NSPC, IAPMO-ES, ICC-ES-PMG, cNSFus-pw, UL, U.P.Code, cQAIus P321, HUD MR 1269, NSF/ANSI/CAN 61, NSF/ANSI 14
• Other Physical Dimension: 11.52 FT Equivalent Length Through
• Additional Specifications: Flow Co-Efficient(Cv): 11.9
