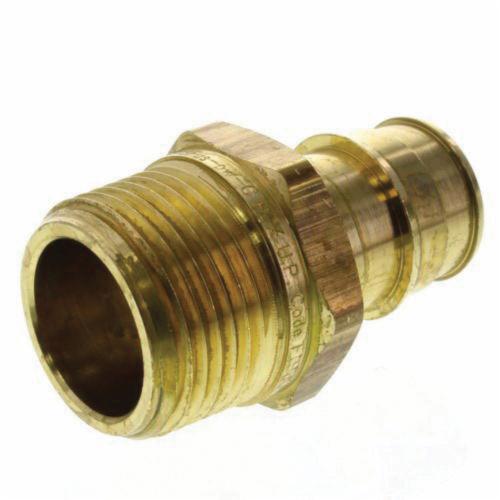

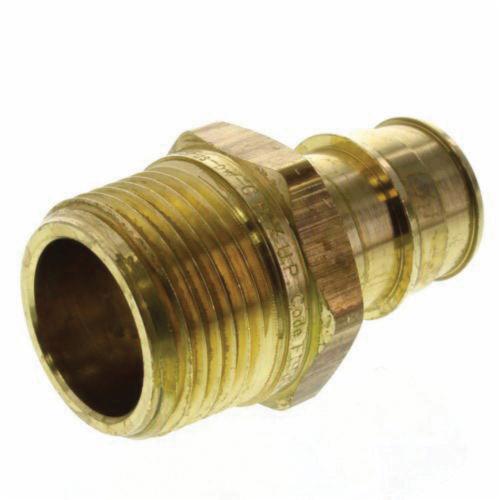

Uponor Wirsbo LF4527575 Adapter 3/4 in PEX x 3/4 in MNPT

Product Description

The Uponor Wirsbo LF4527575 adapter fitting transitions PEX tubing to male NPT threads. This adapter features a 3/4 inch PEX connection on one end and a 3/4 inch MNPT connection on the other end. Constructed from brass, it is suitable for direct burial in soil.

• ProPEX lead-free brass fitting adapters transition PEX tubing to copper fittings
• One end of the adapter is manufactured with the Uponor ProPEX fitting for connections to wirsbo hePEX tubing or Uponor AquaPEX tubing
• These adapters are safe for direct burial in soil

Product Highlights

This Uponor Wirsbo adapter connects Uponor AquaPEX piping to male NPT threads and are intended as transition fittings from metal to PEX.

Product Information

Standard Information

• Brand: UPONOR WIRSBO
• Manufacturer Part Number: LF4527575

Technical Specifications

• End Type 1: ProPEX
• End Type 2: MNPT
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• End Size 1 [inch|mm]: 3/4"
• End Size 2 [inch|mm]: 3/4"
• Cv: 11.3
• Material group: LF Brass
• A [inch]: 1.945 inch
• A [frac]: 1 15/16 inch
• B [inch]: 1 inch
• B [frac]: 1 inch
• C [inch]: 1.196 inch
• C [frac]: 1 13/64 inch
• D [inch]: 0.454 inch
• D [frac]: 29/64 inch
• E [inch]: 0.945 inch
• E [frac]: 15/16 inch
• F [inch]: 1.07 inch
• F [frac]: 1 1/16 inch
• Equivalent length through [ft]: 2.7 ft
• G [frac]: 19/32 inch
• G [inch]: 0.598 inch
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: PEX
• Connection Type 2: MNPT
• Fitting Type: Adapter
• Material Construction: Brass
• Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
