Product Description

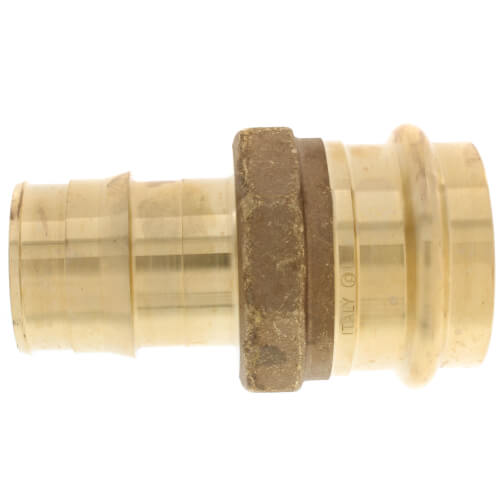

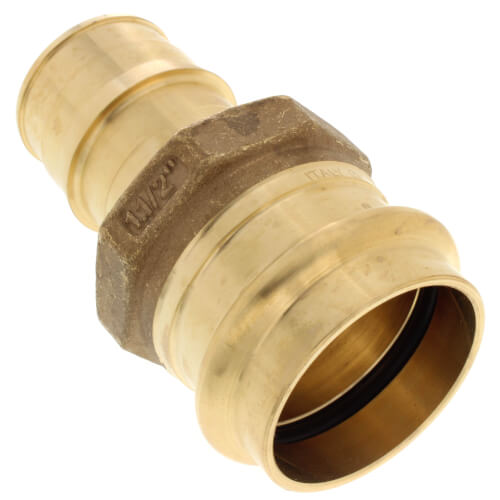

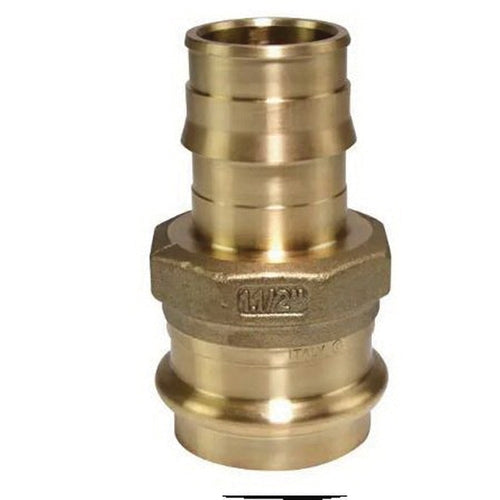

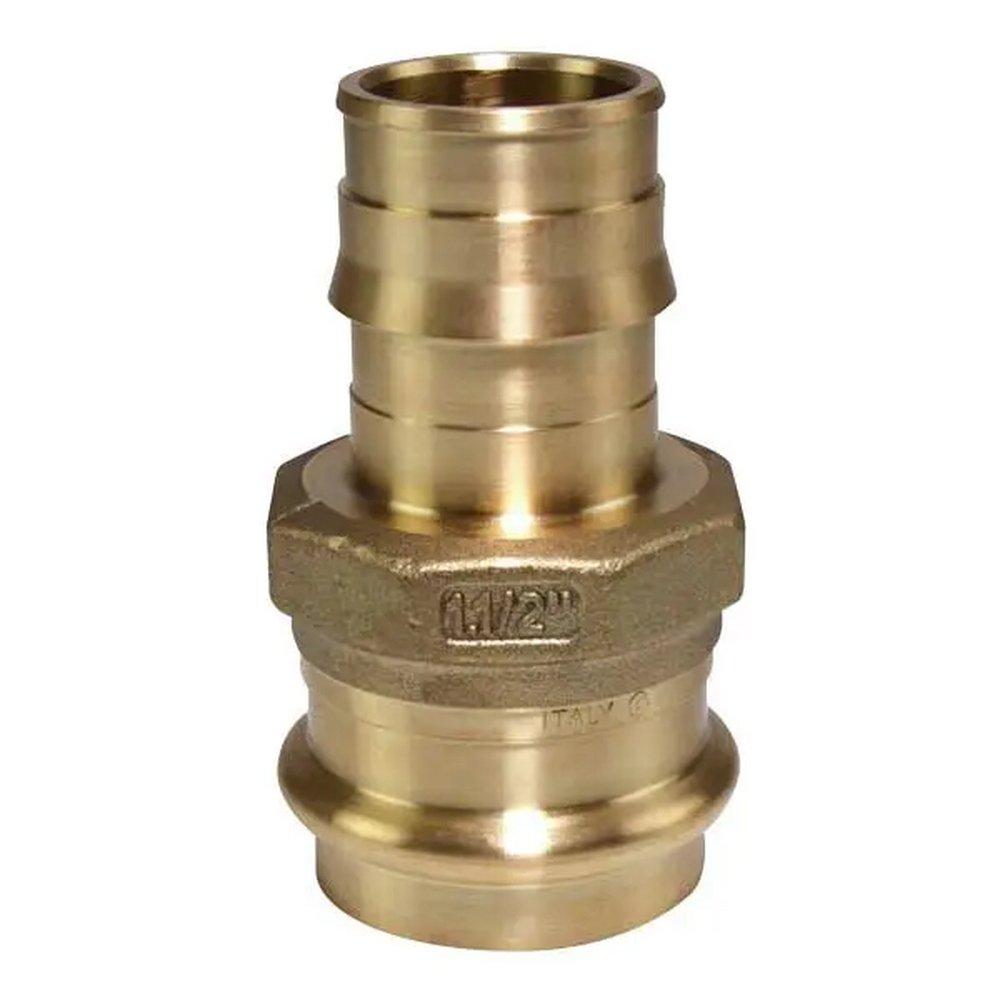

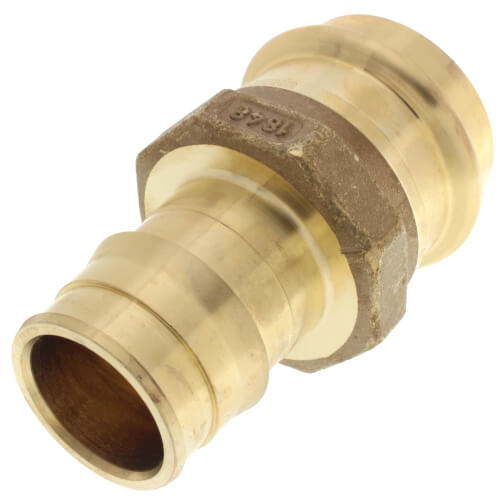

The Uponor LFP4511515 is a lead-free brass adapter with 1-1/2 x 1-1/2 Inch PEX x Press end connections, designed for radiant heating and cooling systems. This adapter transitions Uponor AquaPEX tubing to copper pipe, ensuring fast, consistent, and reliable connections for plumbing and hydronic piping applications.
- Lead-free brass construction
- Suitable for radiant heating and cooling systems
- PEX x Press end connection
Product Highlights
Lead-free brass adapter with PEX x Press end connections, ideal for transitioning between PEX tubing and copper pipe in heating and cooling systems.
Product Information
Standard Information
-
Brand: UPONOR
-
Manufacturer Part Number: LFP4511515
Technical Specifications
-
Brand: Uponor
-
Material: Brass
-
Size: 1-1/2 in PEX x 1-1/2 in Copper
-
End Connection: PEX x Press
-
Part Number: LFP4511515
-
Application: Radiant Heating and Cooling Systems
-
Pressure Rating: 250 psi
-
Connection Type: PEX x Copper
-
Series: ProPEX
-
Selling Size: 1-1/2|in
-
Catalog Number: LFP4511515
-
Material Grade: UNS C27453
-
Maximum Temperature Rating: +200|deg F
-
Type: Press
-
End Style: F1960 Cold Expansion PEX x Press
-
Temperature Rating: 250 deg F
-
Nominal Size: 1-1/2 in
-
Length: 3.878 in
-
Mfg Standards/Approvals: ASTM F1960|ASTM F877|CSA B137.5|ASME B16.51|ICC-ES LC1002|IAPMO PS 117
-
Operating Temp Range: 0°-200°F
-
Operating Pressure 1 [PSI]: 160 psi
-
Operating Pressure 2 [PSI]: 100 psi
-
Operating Pressure 3 [PSI]: 80 psi
-
Operating Temperature 1 [°F]: 73 °F
-
Operating Temperature 2 [°F]: 180 °F
-
Operating Temperature 3 [°F]: 200 °F
-
Material Gasket: EPDM
-
Prop 65 label required?: Yes
-
End Size 1 [inch|mm]: 1-1/2"
-
End Size 2 [inch|mm]: 1-1/2"
-
Cv: 45.5
-
Material group: LF Brass
-
Width: 1.64 IN
-
Material Standard: ASME B16.51, ASTM F877, ASTM F1960
-
Lead Free: Yes
-
Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, NSPC, IMC, IAPMO PS 117, NSF372, ICC-ES LC1002, CSA B137.5, NSF-61, NSF-14, IAPMO-ES, cNSFus-pwG, U.P.Code, ICC-PMG-1412
-
Domestic / Import: Domestic
-
Fitting / Connector Type: Adapter
-
ASME: ASME B16.51
-
ASTM: ASTM F-877, ASTM F-1960
-
CSA Certified: CSA B137.5
-
Clean Bagged: No
-
Collection: ProPEX®
-
End Connection 1: PEX Expansion
-
End Connection 2: Copper Press
-
End Connections: PEX Expansion x Press
-
Fitting Size 1: 1-1/2 in
-
Fitting Size 2: 1-1/2 in
-
Fitting Sizes: 1-1/2 in
-
Fitting Type: Adapter
-
IAPMO Listed: Yes
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Maximum Temperature: 200
-
Minimum Temperature: 73
-
NSF: NSF 14, NSF 61, NSF 372
-
NSF Certified: Yes
-
Pressure - High: 80
-
Pressure - Maximum: 160 psi
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
-
Other Physical Dimension: 2.193 IN Hex Size
