Uponor F6040500 AquaPEX 1/2 in. x 100 ft. Plastic Tubing

Product Description

The Uponor F6040500 AquaPEX tubing is approved for ProPEX and APR fitting systems. It is designed for hot and cold domestic potable water distribution, residential fire safety, and radiant heating systems that do not contain ferrous corrodible components or where ferrous components are isolated from the tubing.

• Pre-Insulated
• Suitable for Radiant Heating and Cooling Systems
• Approved for use in hot and cold domestic potable water systems

Product Highlights

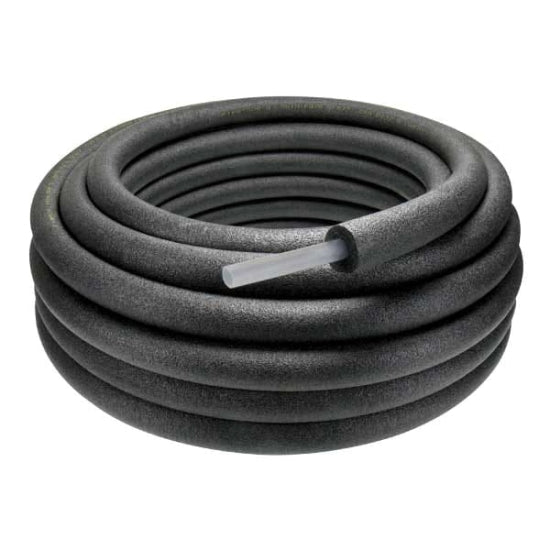

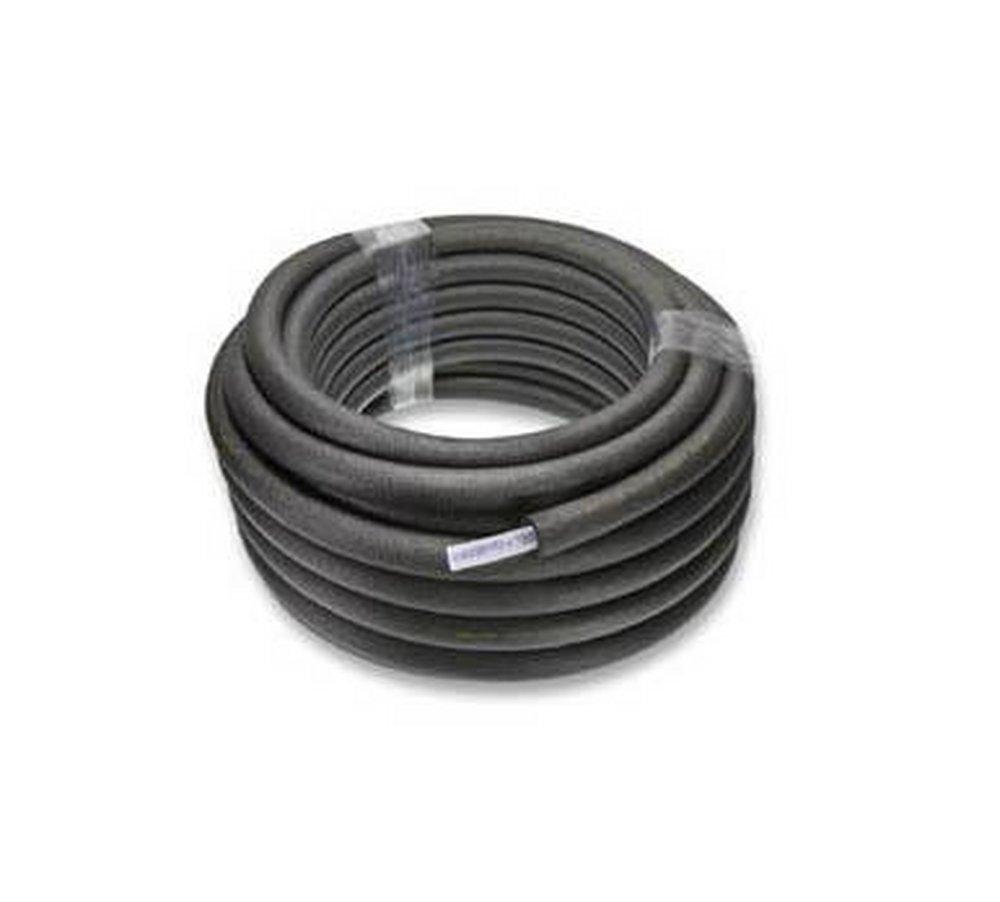

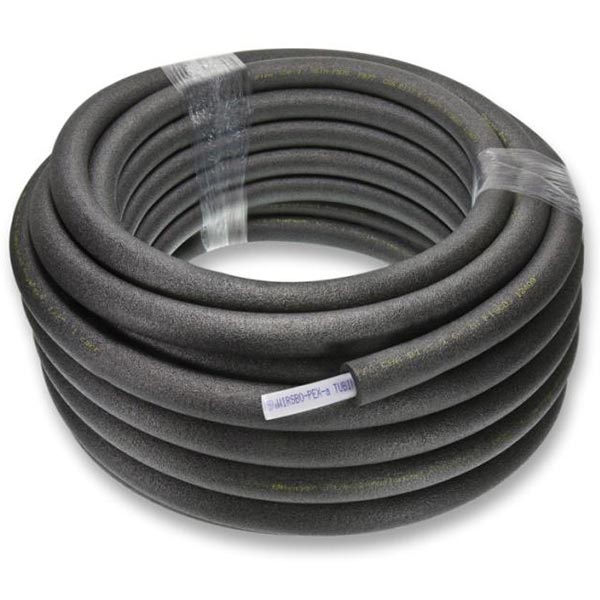

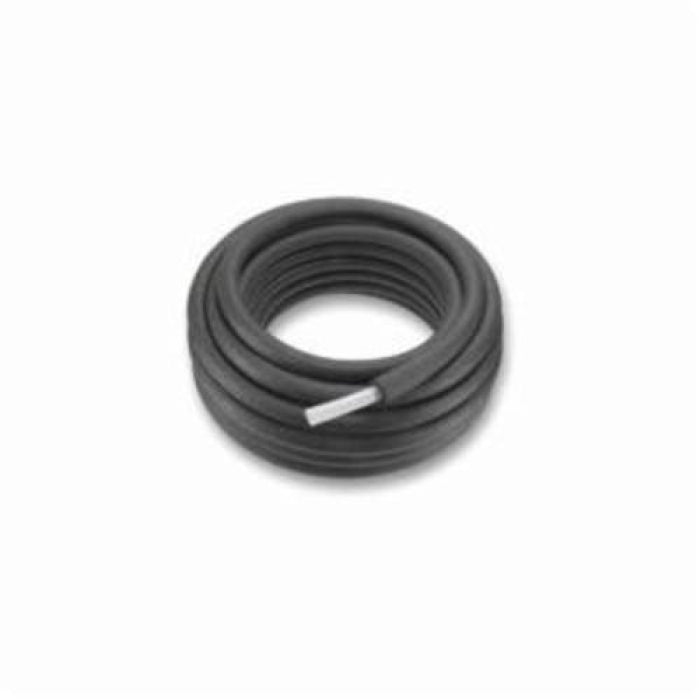

This AquaPEX tubing is durable, flexible, and corrosion-resistant. It is encased in 1/2 inch PEX-foam insulation to insulate potable water lines and meet energy codes.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F6040500

Technical Specifications

• Material: PEX
• Length: 100 FT
• Nominal Size: 1/2 IN
• Type: Pre-Insulated
• Application: For Uponor Plumbing System, AquaSAFE™ Fire Safety System, Radiant Heating and Cooling System
• Insulation: 1/2 in
• Mfg Standards/Approvals: ASTM F876/F877/F1960/F2023|CSA B137.5|ANSI/NSF 14/61
• Outside Diameter: 0.625 IN
• Temperature Rating: 73.4 to 200 deg F
• Working Pressure: 80 to 160 psi
• Sub Brand: AquaPEX®
• Item Name: PEX Tubing With 1/2 IN Insulation
• Schedule: SDR 9
• Material Standard: ASTM F1960, ASTM F876, ASTM F2023, ASTM E814/ULC S115, ASTM F877
• Industry Standards: IMC, UPC, IBC, IRC, NBC of Canada, IPC, UFGS, NPC of Canada, UMC, NSPC, CSA B137.5, CSA B214, NSF61, ULC S101, NSF-14, IAPMO-ES, ICC-ES-PMG, CCMC, PPI TR-4, CSA, UL, U.P.Code, cQAIus P321, UL 1821, cNSFus-pw-fs
• Package Type: Coil
• Inside Diameter: 0.475 IN
• Inner diameter coil [inch]: 19 inch
• Outer diameter coil [inch]: 30 inch
• Coil width [inch]: 8.5 inch
• Inner diameter pipe [inch]: 0.475 inch
• Outer diameter pipe [inch]: 1.625 inch
• Inner diameter Service Pipe [in]: 0.475 inch
• Outer diameter Service Pipe [in]: 0.625 inch
• Heat loss at dt=70°F [BTU/hr/ft]: 7.4 btu/hr/ft
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Linear expansion rate [inch/10°F/100ft]: 1.1 inch/10°f/100ft
• Material group: PEX
• Material Insulation: Closed-cell foam
• Pipe density [lb/ft³]: 0.0584 lb/ft³
• Material Service Pipe: Crosslinked polyethylene (PEX-a) tubing; SDR-9
• Thermal conductivity pipe [BTUin/ft²hrF°]: 0.22 btuin/ft²hrf°
• R value: 3.9
