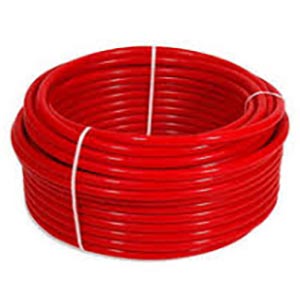

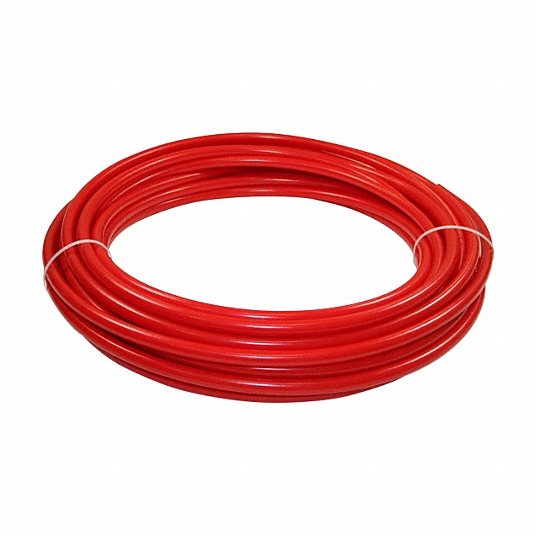

Uponor F2041000 AquaPEX, Piping Coil, 1 inch, 100 Foot

Product Description

The Uponor F2041000 AquaPEX piping coil is designed for various applications including PEX-A plumbing, fire safety, and radiant heating/cooling systems. This PEX-A Engel method PEX 5206 tubing has a linear expansion rate of 1.1 in at 10 deg F per 100 ft. It meets ANSI/NSF 14/61 and ASTM F876/F-877 standards.

• Suitable for PEX-A plumbing, fire safety, and radiant heating/cooling systems.
• Constructed from cross-linked polyethylene PEX-A Engel method PEX 5206.
• Meets ANSI/NSF 14/61 and ASTM F876/F-877 standards.

Product Highlights

Durable Uponor AquaPEX tubing for plumbing, fire safety, and radiant heating/cooling applications, ensuring reliable performance and compliance with industry standards.

Product Information

Standard Information

• Brand: Uponor
• Manufacturer Part Number: F2041000
• Country of Origin: USA

Technical Specifications

• Application: PEX-A Plumbing System, Fire Safety System, Radiant Heating and Cooling System
• Inside Diameter: 0.862 in
• Length: 100 ft
• Material: PEX A
• Mfg Standards/Approvals: ANSI/NSF 14/61|ASTM F876/F-877/F-1960/F-2023/E-84|ASTM E119/UL 263|ASTM E814/ULC S115|CAN/ULC S102.2/S101|CSA B137.5/B214|UL 1821|ULC/ORD-C199P
• Nominal Size: 1 in
• Outside Diameter: 1-1/8 in
• Temperature Rating: 73.4 to 200 deg F
• Working Pressure: 80 to 160 psi
• Linear Expansion Rate: 1.1 Inch/10 Deg F per 100 Foot
• Type: Coil
• Manufacturer: Uponor
• Manufacturer #: F2041000
• Bend Radius: 6.75 Inch
• Pressure Rating: 80 to 160 psi
