Uponor A2663224 TruFLOW Jr Modular Manifold (Return), With Isolation Valve, 4 Loop

Brand: Uponor
SKU: A2663224
Availability: Out Of Stock
$32.39
$32.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

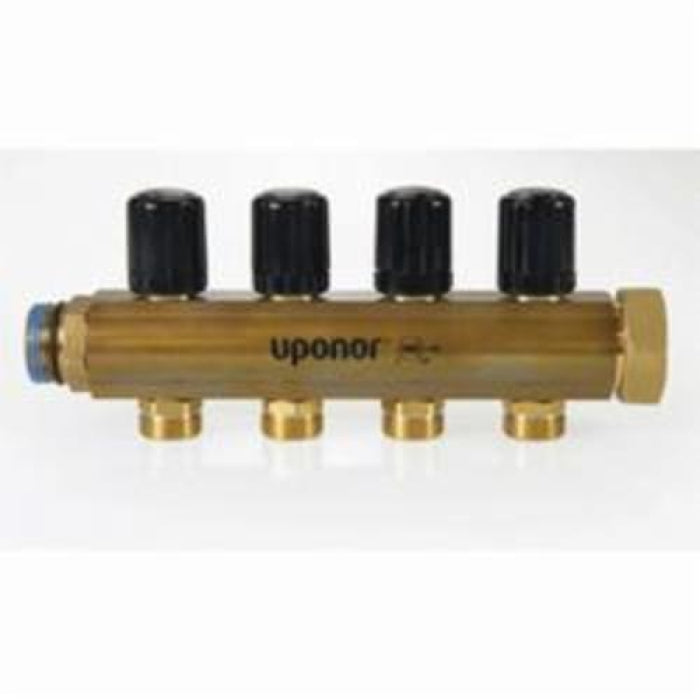

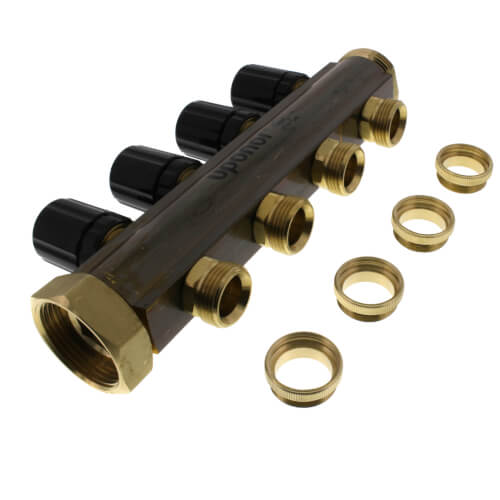

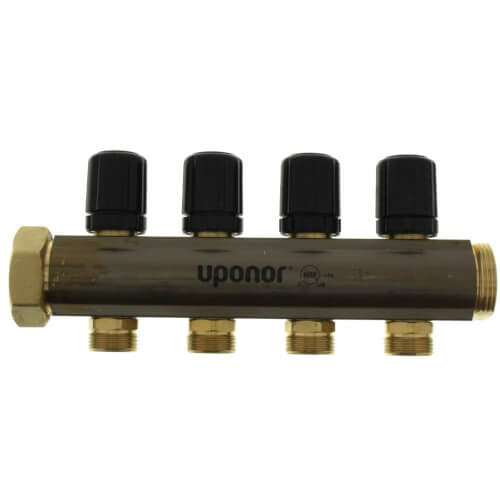

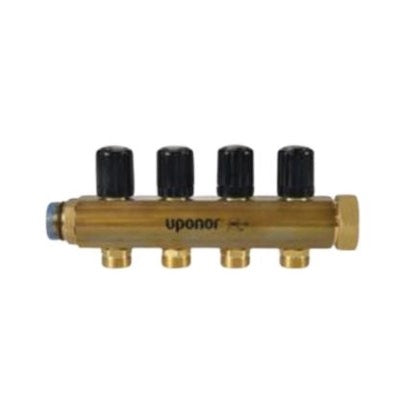

The Uponor A2663224 TruFLOW Jr Modular Manifold (Return) with Isolation Valve, 4 Loop, is used with TruFLOW Jr. Manifold with Balancing Valves or TruFLOW Jr. Valveless Manifold. It allows quick loop isolation and multiple zoning when used with Uponor Thermal Actuators or Motorized Valve Actuators (MVAs). TruFLOW Manifold Actuator Adapters are included for mounting Thermal Actuators or MVAs.

  • Allows quick isolation of the loop
  • Black caps are removed and replaced with Uponor Thermal Actuators or Motorized Valve Actuators (MVAs) for multiple zoning
  • Includes TruFLOW Manifold Actuator Adapters for mounting Thermal Actuators or MVAs

Product Highlights

The Uponor TruFLOW Jr manifold features R32 unions on the body ends and R20 male threads on the loop outlets. It has a brass body, a flow rate of 14 gpm, and is suitable for radiant heating and cooling systems.

Product Information

Standard Information

  • Brand: Uponor
  • Manufacturer Part Number: A2663224
  • Country of Origin: Import
Technical Specifications
Body Material
Brass
Flow Rate
14 gpm
Mfg Standards/Approvals
ASTM F877, ISO 228-G 1-1/4, ISO 228-G 3/4 B, NSF-rfh, R20/R32
Nominal Size
R32 x 1-1/4 in
Pressure Rating
145 psi
Temperature Rating
220 deg F
Application
Radiant Heating and Cooling Systems
Manifold Body Size (ID)
1-1/4"
Loop Cv (valve wide open)
1.9
Manifold Body Threaded Connections
R32
Manifold Loop Threaded Connections
R20
Material
UNS C3850 Brass
Maximum Working Pressure
145 psi
Maximum Fluid Temperature
220°F (104°C)
Maximum Fluid Flow Rate
14.0 gpm
Number of Outlets
4
Supply Thread
R32
Loop Thread
R20
Fitting System Compatibility
PEX Compression
Tubing Compatibility
PEX-AL-PEX, PEX
Manifold Compatibility
Truflow
Brand
Wirsbo
Country of Origin
Italy
UPC
673372182300
Number of Loops
4
Product Length/Depth
9.6 "
Product Width
9.6 "
Product Height
4.13 "
